2000 Piece/Pieces per Day The sample is available .
Packaging & Delivery
LoRa TX Power:
LF:14dBm / HF:20dBm
LoRa PCB Antenna
4000mAh Rechargeable Battery

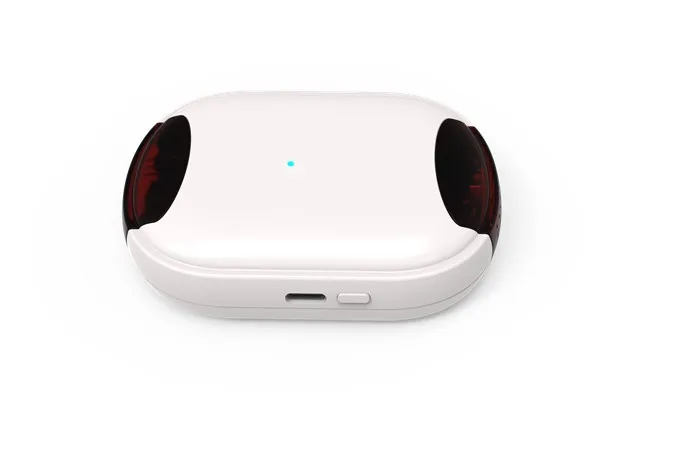

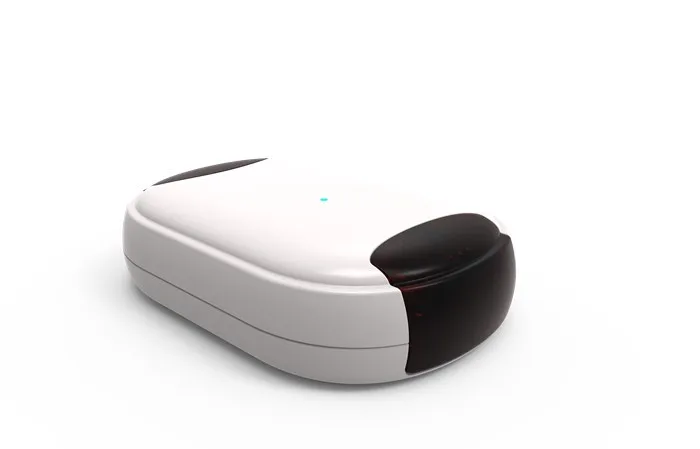

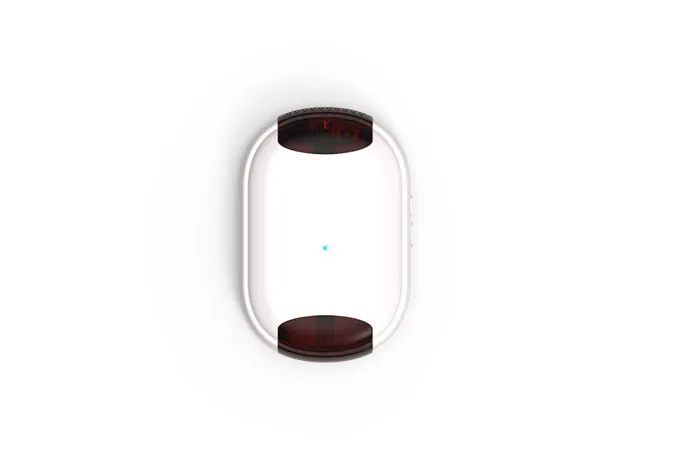

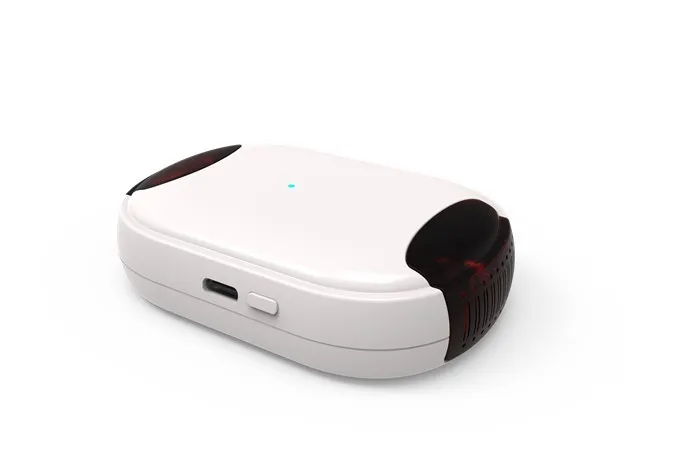

LoRa.AI is a smart control sulution for air conditioner. Low power, wide range ,intelligent infrared remote control scheme .LoRa.AI constitute by LoRa Gateway + LoRA Node. Gateway: MT7688AN + SX1276 (470 MHZ or 470 MHZ), Device: the STM32 + SX1276 (470 MHZ or 470 MHZ). provide cloud entry points, can use a mobile phone to remote control, setting. Node Power supply by lithium batteries(4000mAh), rechargeable, a charge can be used for 300 days. MT7688AN family integrates a 1T1R 802.11n Wi-Fi radio, a 580MHz MIPS® 24KEc™ CPU, 1-port fast Ethernet PHY,USB2.0 host, PCIe, SD-XC, I2S/PCM and multiple slow IOs.
MT7688 provides two operation modes – IoTgateway mode and IoT device mode. In IoT gateway mode, the PCI Express interface can connect to 802.11ac.chipset for 11ac dual-band concurrent gateway. The high performance USB 2.0 allows MT7688 to add 3G/LTE modem support or add a H.264 ISP for wireless IP camera. For the IoT device mode, MT7688 supports eMMC,SD-XC and USB 2.0. MT7688 can support the WiFi high quality audio via 192Kbps/24bits I2S interface and VoIPapplication through PCM. In IoT device mode, it further supports PWM, SPI slave, 3rd UART and more GPIOs.For IoT gateway, it can connect to touch panel and BLE, Zigbee/Z-Wave and sub-1G RF for smart home control. The SX1276 transceivers feature the LoRaTM long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.
These devices also support high performance (G)FSK modes for systems including WMBus, IEEE802.15.4g. The SX1276 deliver exceptional phase noise, selectivity, receiver linearity and IIP3 for significantly lower current consumption than competing devices. ⚫ Automated Meter Reading. ⚫ Home and Building Automatio ⚫ Wireless Alarm and Security Systems. ⚫ Industrial Monitoring and Control ⚫ Long range Irrigation Systems
With 9 years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.
With 9 years of export experience
There are many equipment in factory to produce
Lora .AI V1.0-gateway
Shenzhen GainStrong Technology Co.,Ltd
Is a professional manufacturer for wireless communication, network communication products ,including wifi router ,rf modules and most products are ODM devices .
GainStrong was established on 2011 ,Our factory located in Xixiang town ,Bao An District ,Shenzhen, China , about 15 minutes from Shenzhen Baoan airport. Our company has 1000㎡ of office space and 2000 ㎡ production workshop.
We have a professional R&D team of over 30 people that are focus on ODM and OEM service to the customers around the world.Factory equipped with sophisticated manufacturing machines,include 3 High-speed automatic SMT lines and 1 wave soldering lines,2 RF test comprehensive lines and 2 product-assembly lines,about 100+ staff,annual output value can exceed to 30 million USD
Our mission : Communicate with the sincere and open world
Shipping & Delivery
Q:How to deal with customer's quality complaints? A: First,help customer reduce the losses ,eg: Replacement, Replenishment, offer solutions Second,investigate the quality problem Third,report the result to customers and assign responsibility Forth,improved workmanship or remind customers to avoid the problem
Q:How to shipping the goods to customer? A:DHL,UPS,Fedex,EMS,by air,by sea,customer forwarder are acceptable.
Q:What's the term of payment? A:T/T,L/C,Wester Union,Paypal,MoneyGram,Escrow etc are negotiable.
Q:What about your package? A:Export standard package.Neutral package,Brand package or design according customer requirements are available.
