GainStrong Lora smart install wireless Router with Chipset MT7688AN+SX1276 for air conditioning controller router

FOB Reference Price:Get Latest Price
$88.00 - $120.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
LoRa.AI V1.0
Place of Origin:
Guangdong, China
Chipset:
MT7688AN+SX1276
CPU:
MIPS 24Kc 580MHz
storage:
DDR:DDR2 64MByte(128/256)
SPI Flash::
16(8/32/64)MByte
Dimension(mm):
100.0x67.0x25.5
Working /Storage Temperature:
0 ℃ to 65 ℃/ -40 ℃ to 100 ℃;
Working /Storage Humidity:
10% to 90%RH / 5% to 90%RH no condensation;
Supply Ability
Supply Ability:
2000 Piece/Pieces per Day The sample is available .
Packaging & Delivery
Packaging Details
box .
Port
shenzhen
Product Description

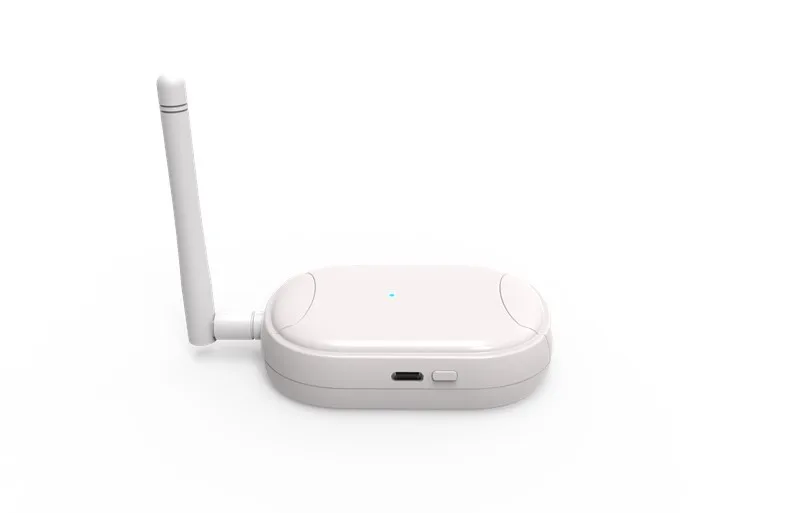

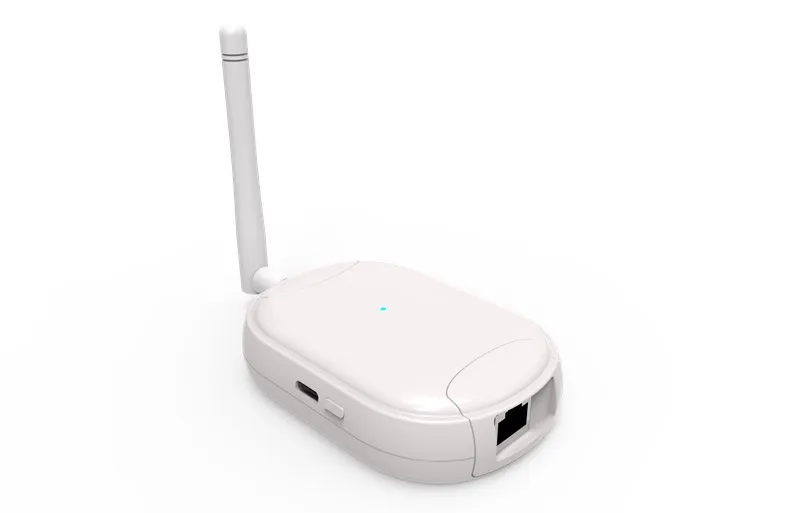

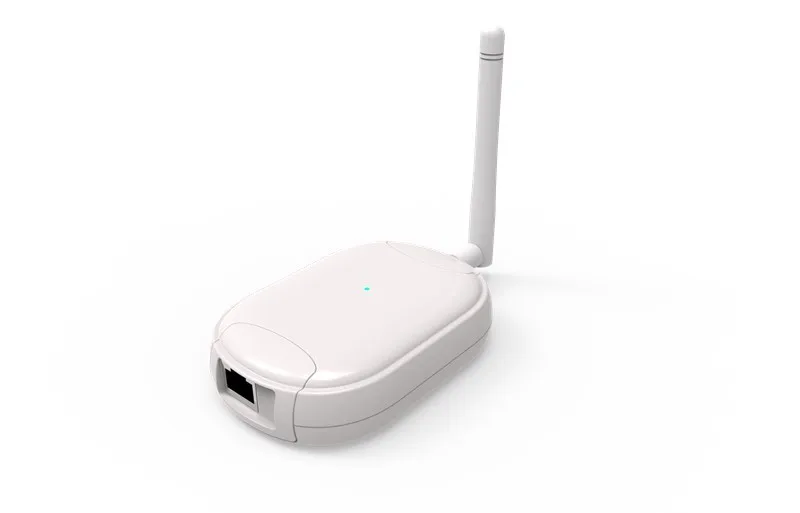

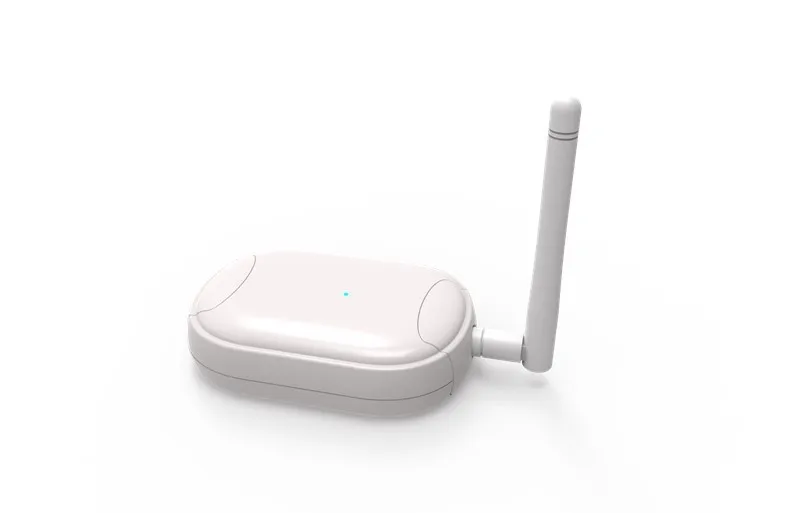

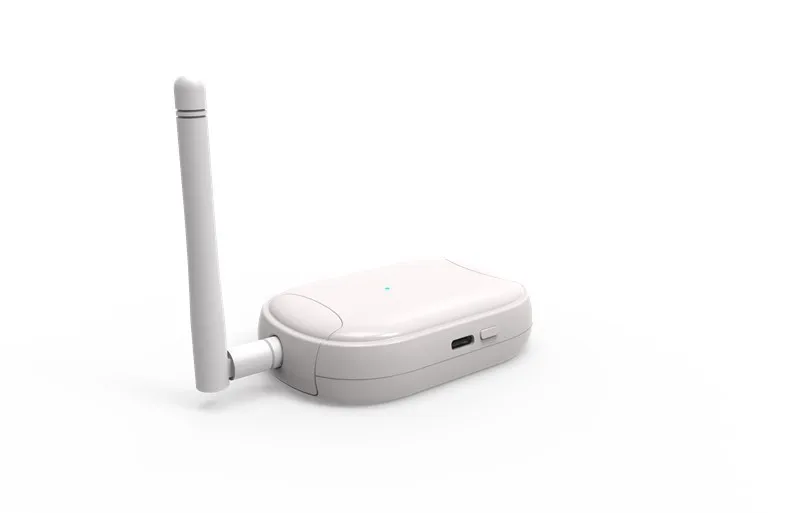

LoRa.AI V1.0.


Gateway :

Main Chipset :
MT7688AN+SX1276
SPI Flash:
16(8/32/64)MByte
CPU :
Power Supply:
MIPS 24Kc 580MHz
Type-C 5.0V
WiFi :
Ethernet :
1x1 150Mbps,
1x 10/100Mbps
Dimension(mm) :
100.0x67.0x25.5
LED :
1xGreen
DDR :
DDR2 64MByte(128/256)
OS:
Openwrt/LEDE

Title goes here.

LoRa.AI is a smart control sulution for air conditioner. Low power, wide
range ,intelligent infrared remote control scheme .LoRa.AI constitute by LoRa
Gateway + LoRA Node. Gateway: MT7688AN + SX1276 (470 MHZ or 470 MHZ),
Device: the STM32 + SX1276 (470 MHZ or 470 MHZ). provide cloud entry points, can
use a mobile phone to remote control, setting. Node Power supply by lithium
batteries(4000mAh), rechargeable, a charge can be used for 300 days.
MT7688AN family integrates a 1T1R 802.11n Wi-Fi radio, a 580MHz MIPS®
24KEc™ CPU, 1-port fast Ethernet PHY,USB2.0 host, PCIe, SD-XC, I2S/PCM and
multiple slow IOs.

MT7688 provides two operation modes – IoTgateway mode and IoT device
mode. In IoT gateway mode, the PCI Express interface can connect to
802.11ac.chipset for 11ac dual-band concurrent gateway. The high performance USB
2.0 allows MT7688 to add 3G/LTE modem support or add a H.264 ISP for wireless IP
camera. For the IoT device mode, MT7688 supports eMMC,SD-XC and USB 2.0.
MT7688 can support the WiFi high quality audio via 192Kbps/24bits I2S interface
and VoIPapplication through PCM. In IoT device mode, it further supports PWM, SPI
slave, 3rd UART and more GPIOs.For IoT gateway, it can connect to touch panel and
BLE, Zigbee/Z-Wave and sub-1G RF for smart home control.
The SX1276 transceivers feature the LoRaTM long range modem that provides
ultra-long range spread spectrum communication and high interference immunity
whilst minimising current consumption.

These devices also support high performance (G)FSK modes for systems
including WMBus, IEEE802.15.4g. The SX1276 deliver exceptional phase noise,
selectivity, receiver linearity and IIP3 for significantly lower current consumption than
competing devices.
⚫ Automated Meter Reading.
⚫ Home and Building Automatio
⚫ Wireless Alarm and Security Systems.
⚫ Industrial Monitoring and Control
⚫ Long range Irrigation Systems
