Oolite box V1.0 QCA9531 300mbps wifi router and router with sim card slot

  • 1 - 1999 Pieces
    $37.50
  • 2000 - 4999 Pieces
    $32.00
  • >=5000 Pieces
    $29.80
Model Number:
Oolite Box V1.0
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Max. LAN Data Rate:
300Mbps
With Modem Function:
No
Standards And Protocols:
Wi-Fi 802.11b, Wi-Fi 802.11g, Wi-Fi 802.11n
Wi-Fi Supported Frequency:
2.4G
Wi-Fi Transmission Standard:
802.11b
Wired Transfer Rate:
None
2.4G Wi-Fi Transmission Rate:
300 Mbps
Products Status:
Stock
Type:
Wireless
Application:
Enterprise
Function:
Firewall
LAN Ports:
4
WAN Ports:
1
Certification:
None, FCC,CE,ROHS
Brand Name:
Oolite
Place of Origin:
Guangdong, China
Model Numbe:
Oolite Box V1.0 high power
Chipset:
QCA9531
RAM:
64MB
ROM:
8MByte
Port:
1*WAN, 4*LAN
CPU frequency:
560 MHz
Antenna:
2*Built-in smart antenna
Software:
openwrt
Power supply:
15DB
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
plastic tray or blister
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Video Description
Product Description

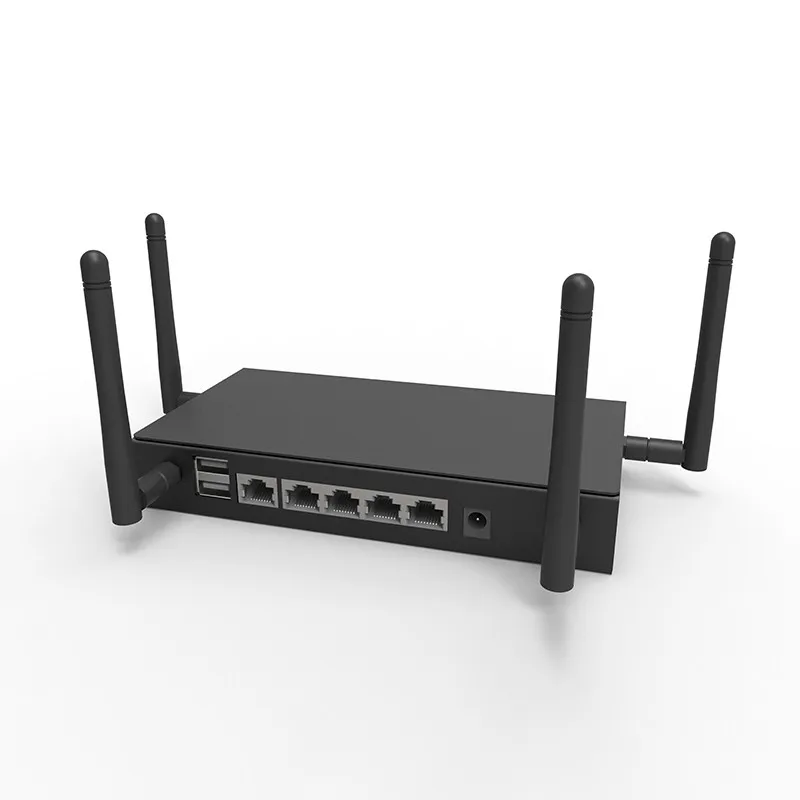

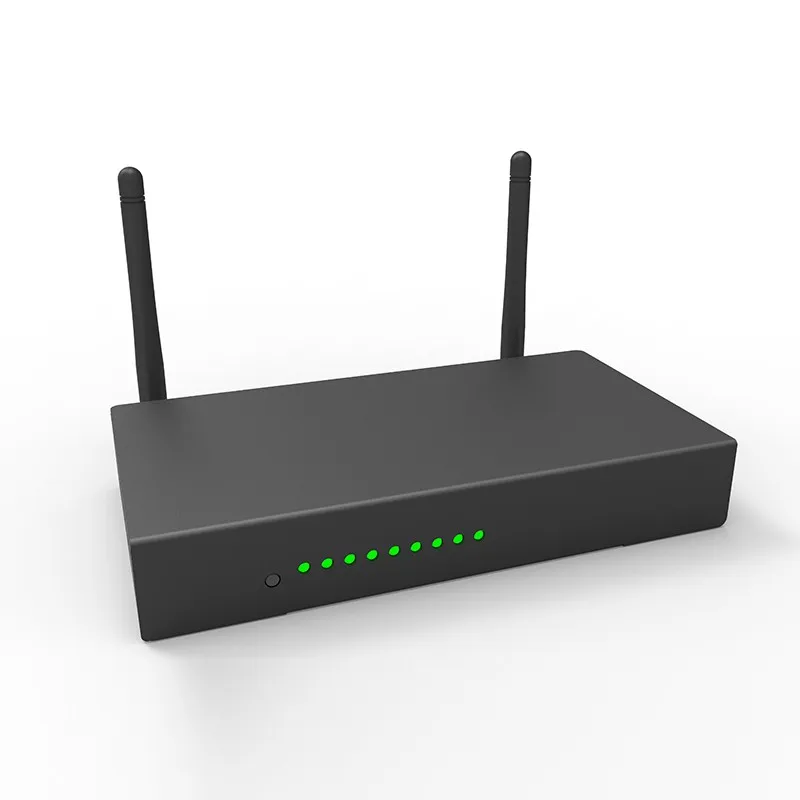

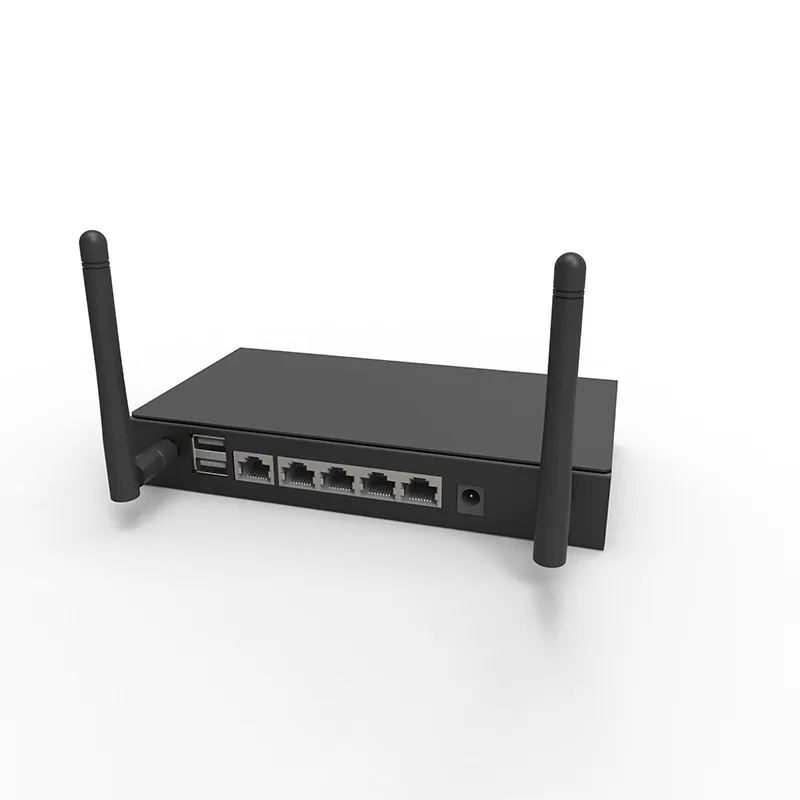

Oolite box V1.0 wireless wifi router sim card wifi modem


Oolite-Box-V1.0 is exquisite portable and small wireless router that supports 802.11b/g/b 2x2 2.4GHz WIFI. It compatible 802.11 a/b/g/n/ac maximum wireless rate can reach to 300Mbps. It is made up of base board and module.The base board use the QCA9531 chip that is a highly integrated and feature-rich IEEE802.11 b/g/n 2x2 2.4 GHz System-on-a-Chip (SoC) for advanced WLAN platforms.

Oolite-Box-V1.0 has 2 FE RJ45 ports which support both wired connection and wireless connection at the same time.it allowsusers not only able to share their internet by wired connection but also wireless connection.Its power consumption is very low.

Oolite-Box-V1.0 standard version can update to support 2 * 4G Mini-Pcie Card or 1 * 4G Module ( Mini-Pcie Interface ) + 1 * WiFI Module(Mini-Pcie Interface).

Product details

Items Contents

Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency 2.412GHz - 2.472GHz

Signal Rate 11n: Up to 2x150Mbps(dynamic)

11g: Up to 2x54Mbps(dynamic)

11b: Up to 2x11Mbps(dynamic)

Wireless Modes AP Mode, Router Mode , Repeater Mode,Bridge Mode

Wireless Security 64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

WAN Type Dynamic IP, Static IP, PPPoE, PPTP, L2TP

Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS DynDns, Comexe, NO-IP

Management Access Control Local Management Remote Management

Certification CE, FCC

Package Contents Power Adapter Quick Installation Guide

System Requirements Windows,MAC OS,UNIX , Linux

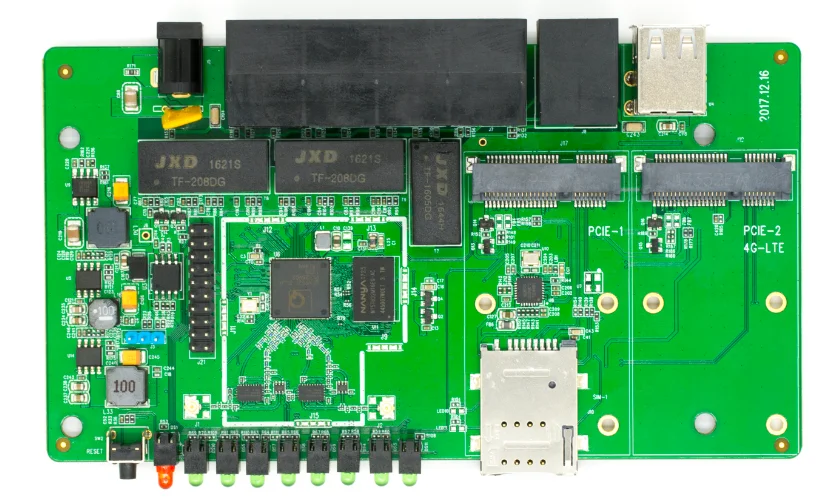

The positive side

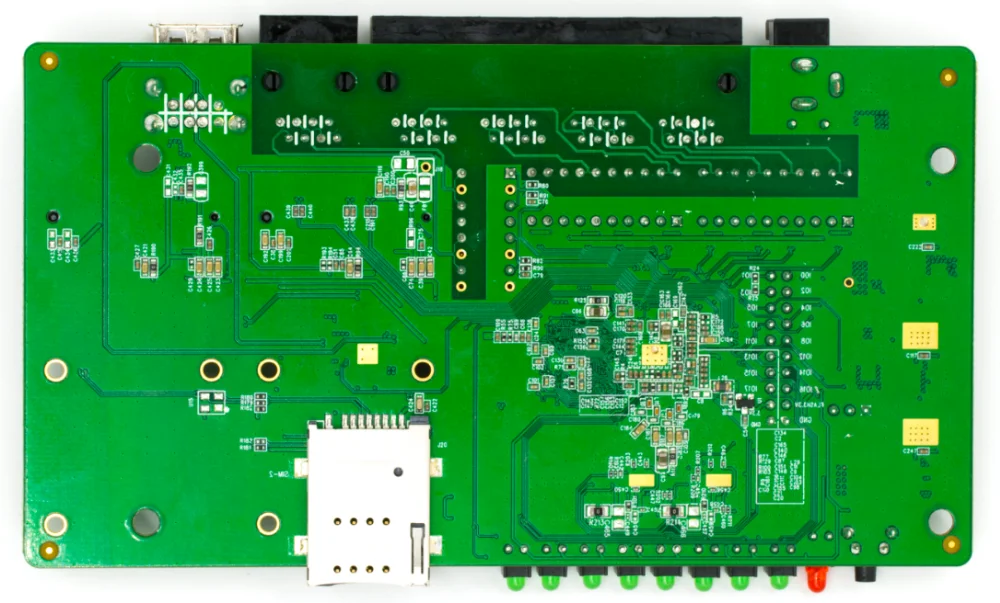

The Negative side
Our Company


Shenzhen Gainstrong Technology Ltd. is a professional manufacturer for Network communication products ,including wifi Routers,wifi modules, Industial wifi equipment,smart home devices...and so on .The company was established on 2009 ,Our factory located in Shajing town ,Bao An District ,Shenzhen, China ,We are focus on ODM and OEM service to the customer all over the world with professional R&D team . Factory equipped with sophisticated manufacturing machines ,include 1 High-speed SMT production lines and 2 product-assembly lines, about 40 staff, Production capacity for wifi modules can be 2000pcs per day.

We are focus on Qualcomm Atheros AR9XXX, QCA9XXX, IPQ, QCA40XX and MT76XX ,Allwinner, Intel x86 with wifi, lora, NB-iot, 3G/4G communication devices ODM/OEM.Usually for Industry application.

Our Service

We can flash customer firmware, ODM customer baseboard or redesign whole board, we can make sure device fit FCC,CE and so on. we can supply software design service

Certifications
Packing & Delivery

Packing.

Ourdoor forest wireless networking equipment AP router wireless Router/Repeater

plastic tray or bliste

Delivery

Ourdoor forest wireless networking equipment AP router wireless Router/Repeater
1) By DHL or Fedex express;
2)By sea to the main coastal city in your country;
3)By airmail or EMS;
4)Any other viable methods for delivery accepted by both parties
.

FAQ

1.Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.


2.Do you accept PCBA orders only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.


3.Do you provide firmware support?
Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
