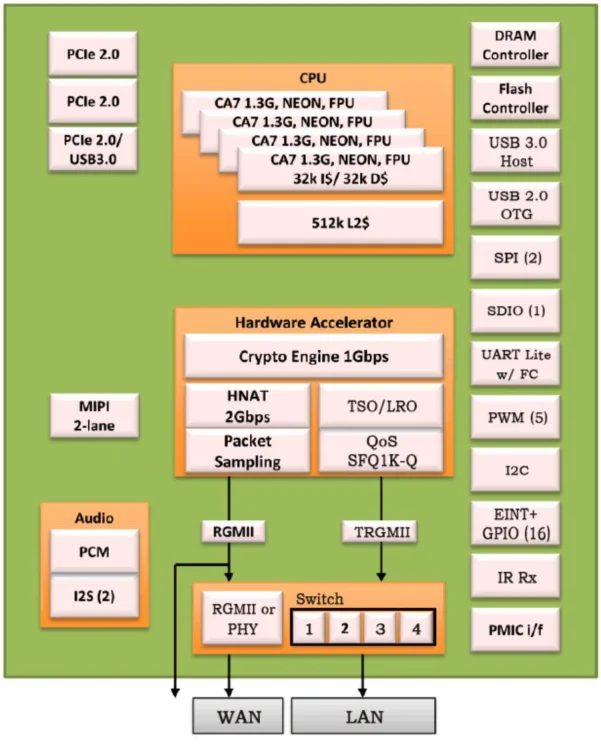

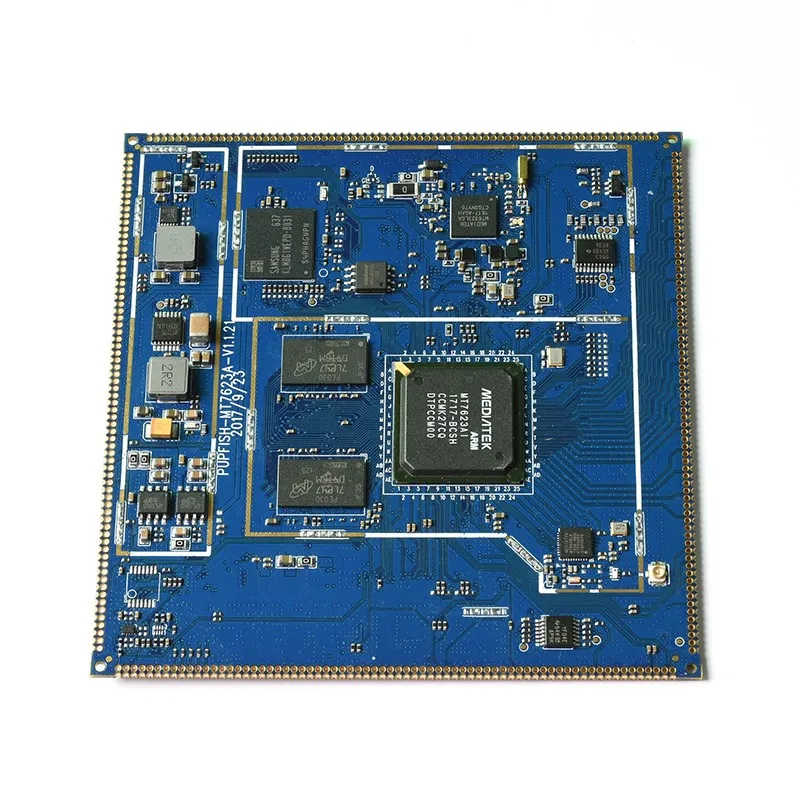

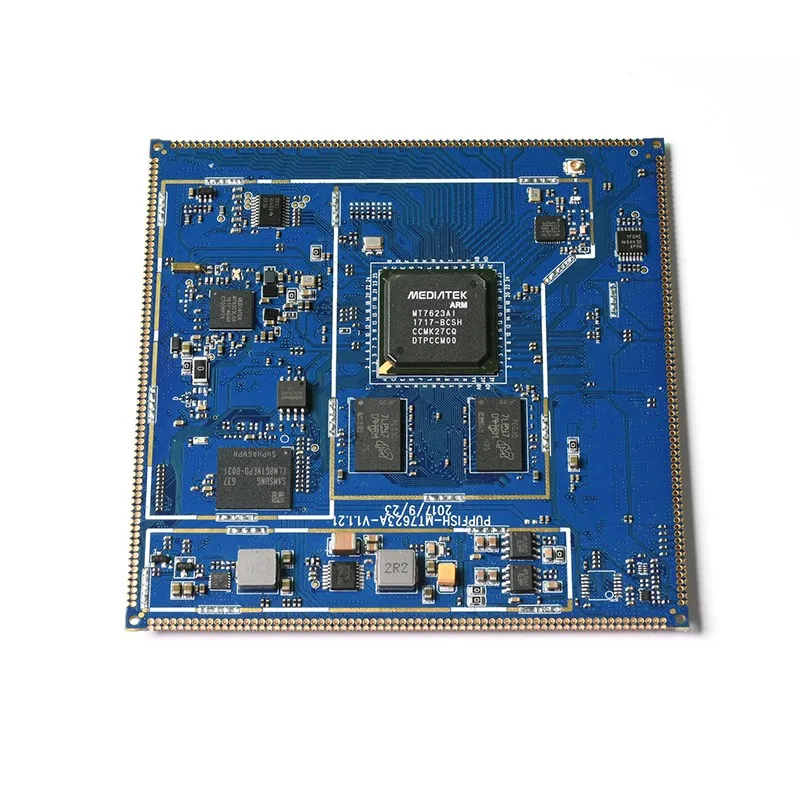

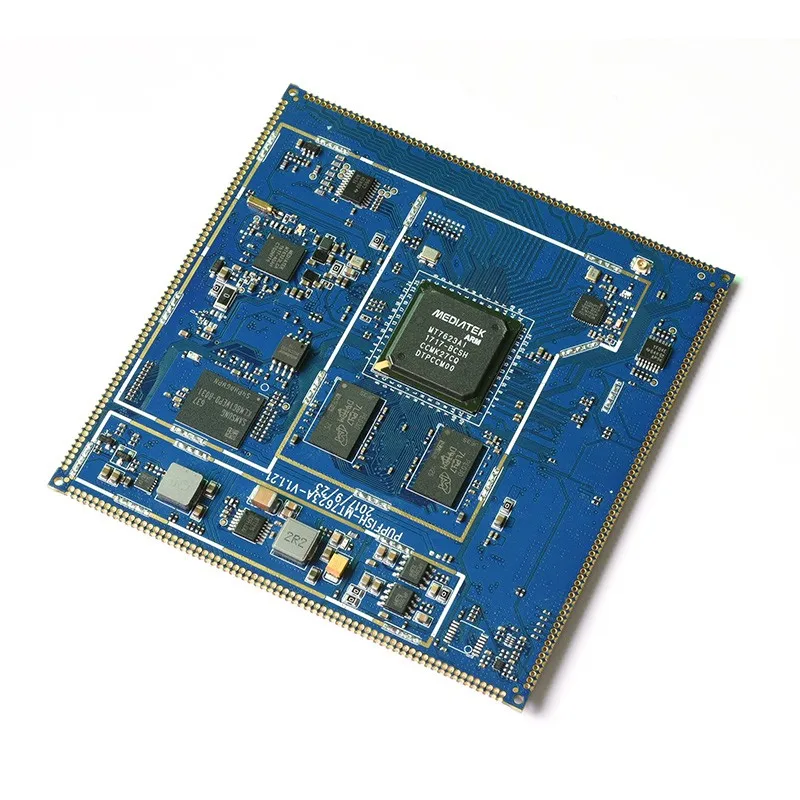

The Pupfish-MT7623A-V1.0 module use the MT7623A chipset.The Mediatek MT723A is a highly integrated network router system-on-chip used for high wireless performance, home entertainment, home automation and so on.MT7623A is fabricated with advanced silicon process and integrates a Quad-core ARM® Cortex-A7 MPCoreTM operating up to 1.3GHz and more DRAM bandwidth. This SoC also includes a variety of peripherals,including MIPI, RGMII, PCIe2.0, USB2.0 OTG ,USB3.0 ports, and 5-port GbE switch. To support popular network applications, MT7623A also implements 10/100/1000 Ethernet RGMII interface, embedded a 5-ports Giga switch and supports 802.11ac/n WLAN connection thru its PCIe port. Besides the connectivity features, the hardware-based NAT engine with QoS embedded in MT7623A transporting the audio/video streams in higher priority than other non-timely services also enriches the home entertainment application. The SFQ separating P2P sessions from audio/video ones so that MT7623A guarantees the streaming service. With the advanced technology and abundant features, Pupfish-MT7623A-V1.0 module is well positioned to be the core of next-generation Smart WiFi AP router, and home gateway systems.
1. Product Features
* Embedded Quad-core ARM® Cortex-A7 MPCore operating at 1.3GHz
