support iot smart wifi module for mt7621a router wifi module

FOB Reference Price:Get Latest Price
  • 1 - 19 Pieces
    $16.00
  • >=20 Pieces
    $14.00
Report Suspicious Activity
Overview
Quick Details
Model Number:
Oolite V8
Brand Name:
Oolite
Place of Origin:
Guangdong, China
Model Numbe:
Oolite V8
chipset:
MT7621
RAM:
256/512 Mbytes option
Flash:
16MB SPI NOR Flash(8/16/32/64M option)
CPU frequency:
880MHz
HW Crypto:
Deliver 400~500 Mbps IPSec throughput
DDR2/3:
ODT off, Self-refresh mode
Firmware:
Linux 2.6 SDK, OpenWRT
Interface:
5 ports
size:
50mm(Length)*50mm(Width)(Tolerance:±0.2mm)
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
plastic tray or blister
Port
shenzhen
Video Description
Product Description

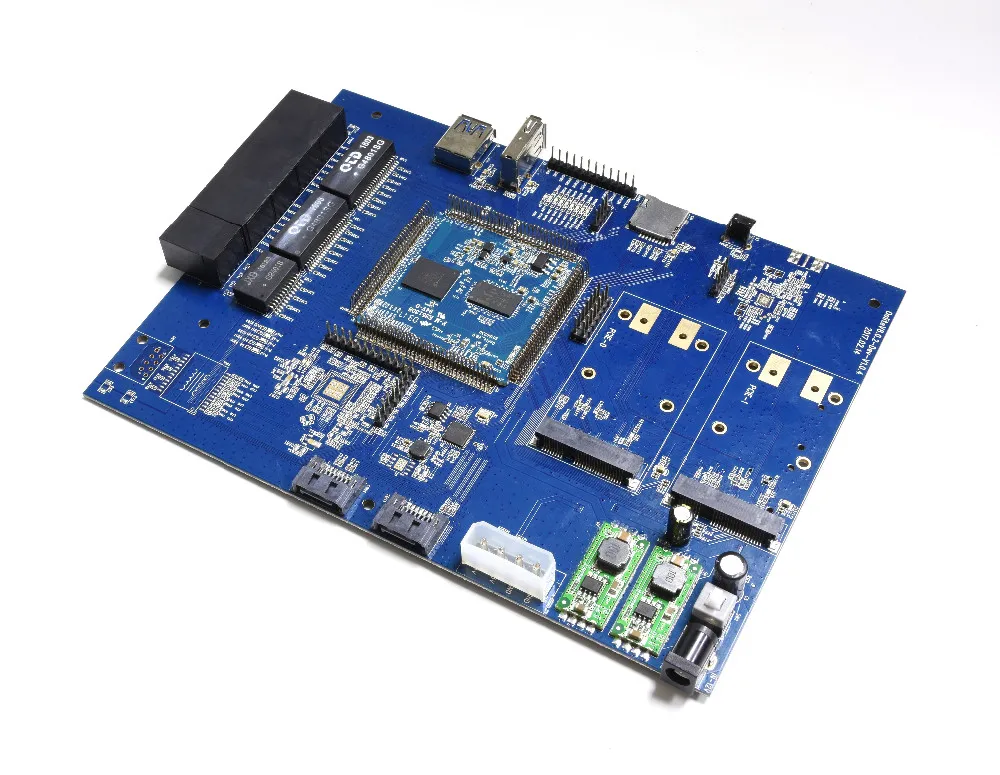

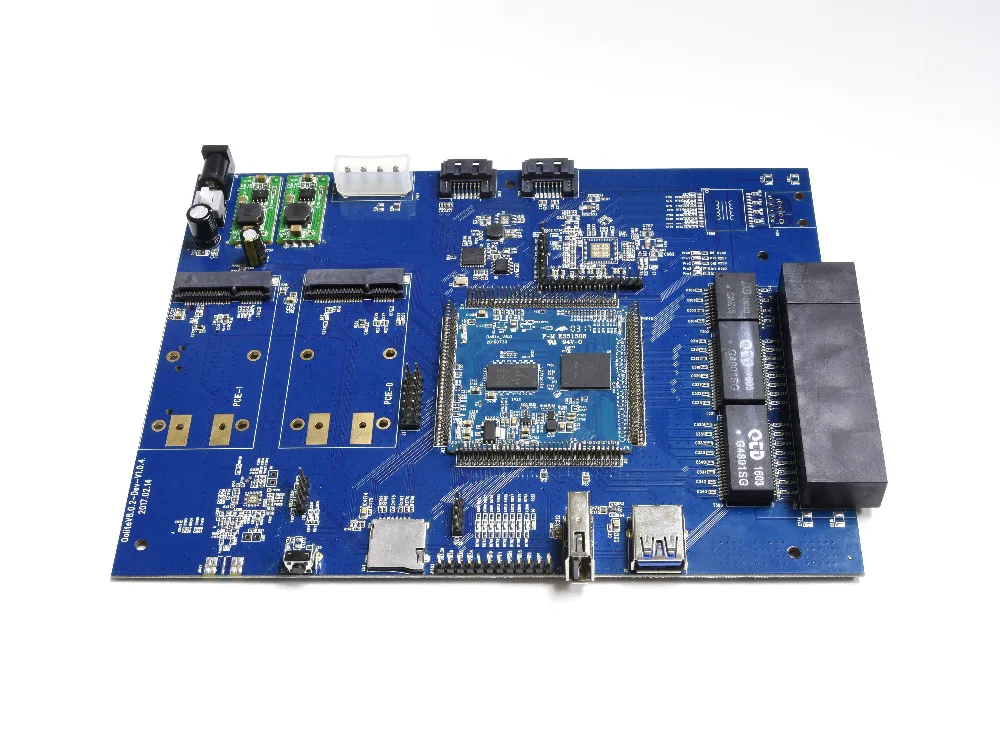

openwrt mt7621a wireless router with detachable antenna

The OoliteV8.0 module use the MT7621A chipset. The MT7621A integrates a dual-core MIPS- 1004Kc (880MHz),HNAT/HQoS/ Samba/VPN accelerators,5-port GbE switch, RGMII, USB3.0, USB2.0, 3xPCIe, SD-XC. The powerful CPU with rich portfolio is suitable for 802.11ac, LTE cat4/5, edge, hotspot, VPN,AC (Access Control). It can also connect to touch-panel, ZigBee/Z-Wave for Internet Service Router and Home Security Gateway.

For the next generation router, MT7621A provides several dedicated hardware engines to accelerate the NAT, QoS, Samba and VPN traffic.These accelerators relief the CPU for other upper layer applications.
product details

1. Features
>> Embedded MIPS1004Kc (880 MHz) with 32 KB ICache and 32 KB D-Cache for each core
>> 16-bit DDR2/3 512 Mbytes
>> SPI, NAND Flash, SDXC, eMMC(4 bits)
>> 1x USB 3.0, 2x USB 2.0, 3x PCIe host
>> 5-port 10/100/1000 SW/PHY and one RGMII
>> I2C, SPI*2, UART lite*3, JTAG, MDC, MDIO, GPIO,PCIe host x 3
>> Deliver the superb Samba performance via USB2.0/USB 3.0/SD-XC
>> HW storage accelerator
>> HW NAT - 2Gbps wired speed - L2 bridge - IPv4 routing, NAT, NAPT
IPv6 routing, DS-Lite, 6RD, 6to4 HW QoS 16 hardware queues to guarantee the
min/max bandwidth of each flow. -Seamlessly co-work with HW NAT engine. - 2Gbps wired speed.

HW Crypto Deliver 400~500 Mbps IPSec throughputFirmware:
>> Linux 2.6 SDK, or OPENWRT
>> One RGMII/MII interface
>> VoIP support (I2S, PCM) , Audio interface (SPDIF-Tx, I2S, PCM)

2. Functional Block Diagram

3. MECHANICAL

Dimensions
(mm)
Length
Width
Height
50
(Tolerance:±0.2mm)
50
(Tolerance:±0.2mm)
4
(Tolerance:±0.2mm)

3. MECHANICAL

Dimensions
(mm)
Length
Width

Height

  48.0
(Tolerance:±0.2mm)
39.5
(Tolerance:±0.2mm)
1.6
(Tolerance:±0.2mm)

4. PINS DESCRIPTION

Our Company


Shenzhen Gainstrong Technology Ltd. is a professional manufacturer for Network communication products ,including wifi Routers,wifi modules, Industial wifi equipment,smart home devices...and so on .The company was established on 2009 ,Our factory located in Shajing town ,Bao An District ,Shenzhen, China ,We are focus on ODM and OEM service to the customer all over the world with professional R&D team . Factory equipped with sophisticated manufacturing machines ,include 1 High-speed SMT production lines and 2 product-assembly lines, about 40 staff, Production capacity for wifi modules can be 2000pcs per day.
With professional mind, we are trying to offer the customer the most competive price ,quick lead time for delivery, strict quality inspection and intimate customer servervice. To satisfy customer perfectly,we are managing the safety ability and the design which combines the sensibility and technique , as well as the advanced equipment.

Our Service

with many years experience ,We can flash customer firmware, ODM and OEM are both provided .  we can make sure device fit FCC,CE and so on. we can supply software design service.

Certifications
Packing & Delivery

Packaging Details:openwrt mt7621a wireless router with detachable antenna plastic tray or blister
Delivery Detail:openwrt mt7621a wireless router with detachable antenna3-5days or 15-25days

FAQ

1.Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.

2.Do you accept PCBA orders only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.

3.Do you provide firmware support?
Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
