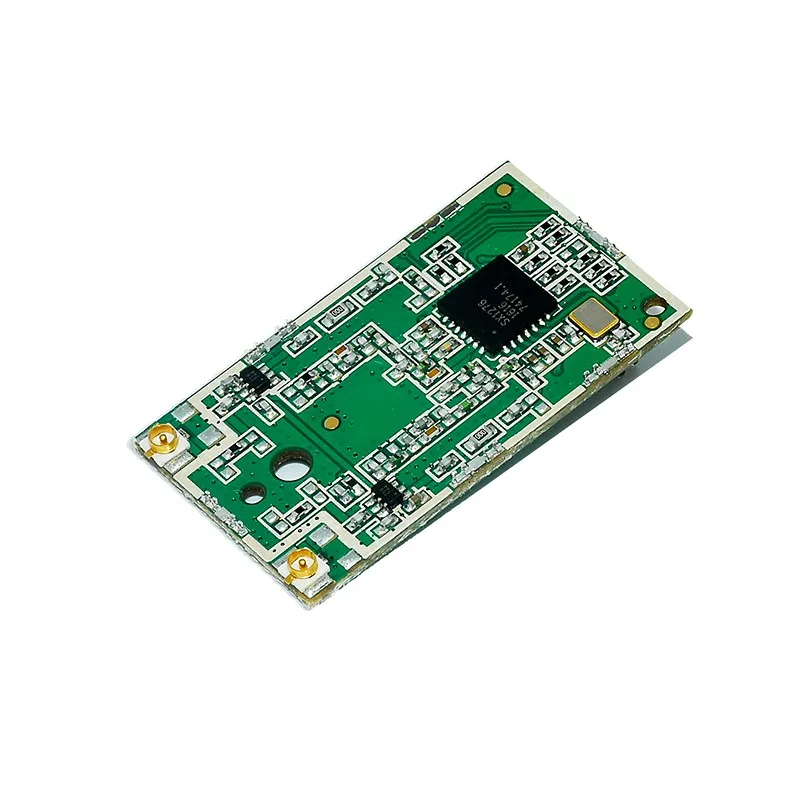

long range sx1276 433MHz 470MHz 868MHz 915MHz lora module

FOB Reference Price:Get Latest Price
  • 1 - 1999 Pieces
    $10.00
  • 2000 - 4999 Pieces
    $5.00
  • >=5000 Pieces
    $4.50
Report Suspicious Activity
Overview
Quick Details
Model Number:
lora house v1.0
Brand Name:
oolite
Product Name:
lora house V2.0
TX Power On HF RF Output:
20 dBm
TX Power On LF RF Output:
14 dBm
Programmable bit rate:
300 kbps
High sensitivity:
down to -148 dBm
Bullet-proof front end:
IIP3
Modue Size:
35mm * 20mm * 8mm
product status:
in stock
chipset:
sx1276
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
30pcs/tray, 300pcs/package
Port
shenzhen
Product Description

Powerfull more than 10km Long range SX1276/SX1278 LoRa 868 MHz rf module for IOT



1.An Overview of Product:

The LoRa.House V2.0 transceivers feature the LoRa TM long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption. It's support most of the common communication frequency 433MHz/470MHz/868MHz/915MHz. LoRa.House V2.0 137 MHz to 1020 MHz Low Power Long Range Transceiver Module.
Using Semtech's patented LoRaTM modulation technique LoRa.House V2.0 can achieve a
sensitivity of over -148dBm using a low cost crystal and bill of materials. The high sensitivity
combined with the integrated +20 dBm power amplifier yields industry leading link budget
making it optimal for any application requiring range or robustness. LoRaTM also provides
significant advantages in both blocking and selectivity over conventional modulation
techniques, solving the traditional design compromise between range,interference immunity
and energy consumption.

These devices also support high performance (G)FSK modes for systems including WMBus,
IEEE802.15.4g. The Lora.House V2.0 deliver exceptional phase noise, selectivity, receiver
linearity and IIP3 for significantly lower current consumption than competing devices.


2. FEATURES:

  LoRa TM Modem Module ( 433MHz/470MHz,/868MHz,/915MHz ).


 +20 dBm TX Power On HF RF Output(862MHz-1020MHz)

 +14 dBm TX Power On LF RF Output(135-175MHz,410-525MHz)

 168 dB maximum link budget.

 Programmable bit rate up to 300 kbps.

 High sensitivity: down to -148 dBm.

 Bullet-proof front end: IIP3 = -11 dBm.

 Excellent blocking immunity.

 Low RX current of 9.9 mA, 200 nA register retention.

 Fully integrated synthesizer with a resolution of 61 Hz.

 FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.

 Built-in bit synchronizer for clock recovery.

 Preamble detection.

 127 dB Dynamic Range RSSI.

 Automatic RF Sense and CAD with ultra-fast AFC.

 Packet engine up to 256 bytes with CRC.

 Built-in temperature sensor and low battery indicator.

 Modue Size:35mm * 20mm * 8mm

 2*10 20Pin 1.27mm Dual in line Pin Header

3.APPLICATIONS FIELDS:

<< Automated Meter Reading.

<< Home and Building Automation.

<< Wireless Alarm and Security Systems

<< Industrial Monitoring and Control

<< Long range Irrigation Systems

Detailed Images
Packing & Delivery

Packing details:Plastic electrostatic prevention tray : 30pcs / tray. 900pcs / carton


Delivery details:6 working days after payment

Our Company
Our Team
FAQ

1.Are you a manufacturer of distributor or trading company?
Manufacturer

2.Do you reable/reband product to our company name and logo?
Yes, we accept OEM and ODM.

3.Do you redesign products/packing to suit our needs?
. Yes, we accept OEM/ODM.

4.Do you supply to the United States or Europe or Japan?
Yes, we have certificate, like FCC for the United States,CE &ROHS for Europe and TELEC for Japan.

5.What is trhe average lead time (to shipping) for a typical order?
7-10 days.
