high quality 4g lte modem wireless wifi router

  • 1 - 1999 Pieces
    $90.00
  • 2000 - 4999 Pieces
    $57.60
  • >=5000 Pieces
    $54.80
Model Number:
minibox-lte
Report Suspicious Activity
Overview
Quick Details
With Modem Function:
No
Standards And Protocols:
Wi-Fi 802.11b, Wi-Fi 802.11g, Wi-Fi 802.11n
Wi-Fi Supported Frequency:
2.4G
2.4G Wi-Fi Transmission Rate:
300 Mbps
Products Status:
Stock
Type:
Wireless
Function:
Firewall, QoS
LAN Ports:
1
WAN Ports:
1
Brand Name:
oolite
Place of Origin:
China (Mainland)
Product name:
4G Lte wifi router
Chipset:
QCA9531
Color:
white
DDR2:
64MB/128MB optional
Flash:
16MB/8MB optional
Power Sypply:
DC 5V/1A Input
wireless speed:
300Mbps
button:
1 reset button
Dimensions:
64mm x 44.5mm x22.3mm
porudct status:
in stock
Supply Ability
Supply Ability:
2000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
gift box and carton box
Port
shenzhen
Lead Time :
7-14 working days
Product Description

portable and small wireless 4G/LTE router Minibox-LTE

The Minibox-LTE V1.0 is an exquisite portable and small wireless 4G/LTE router which designed for those who use mobile devices like smart phone, PADs, notebook to surf the internet.The Router based on Qualcomm QCA9531,Which supported well by OPENWRT/LEDE has 2 FE RJ45 ports which support both wired connection and wireless connection at the same time.it allows users not only able to share their internet by wired connection but also wireless connection.
The Minibox-LTE V1.0 Wi-Fi link is a 2T2R 802.11b/g/n 300Mbps solution. The Wi-Fi link is highly integrated, and includes an energy efficient on-board power amplifier and LNA. For the 2.4 GHz band, RF switches are also integrated. The Minibox-LTE V1.0 Wi-Fi link is optimized for low system cost, and minimizes the number and cost of any components required to achieve a reliable Wi-Fi link. EC25 series is Quectel ’ s new generation of LTE category-4 module, optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 10 LTE technology, it delivers 150Mbps downlink and 50Mbps uplink data rates. The Product to a wide range applications such as Router, AP, Rugged tab-let, Automotive,
Live Video Streaming, Security and IOT/M2M.

Product Details
1. Product Feature

Qualcomm QCA9531 with 650MHZ MIPS 24Kc

IEEE 802.11b/g/n 2x2 2.4 GHz 300Mbps WiFi

DDR2:64MB/128MB optional

Flash:16MB/8MB optional

Ethnet Port: 1 * 10/100M Wan Port & 1 * 10/100M Lan Port

Power Sypply: 1 * Micro USB(DC 5V/1A Input)

1 * NANO SIM Card Solt.

1 * 4G/LTE Build-in Module(Regions and countries can be Select)

1* 4G/LTE Power On/Off Switch

2.4G WiFi Antenna(build-in shell) + 1* 4G/LTE Antenna(build-in shell)

Status LED: 1 * System status LED, 1 * 4G/LTE Status LED

1 * Reset Button(for flash fw in uboot or factory reset)

Dimensions: 64mm x 44.5mm x22.3mm(L x W x H)

OS: Openwrt/LEDE/QSDK

U-Boot: in chlude web to flash U-Boot/OSs

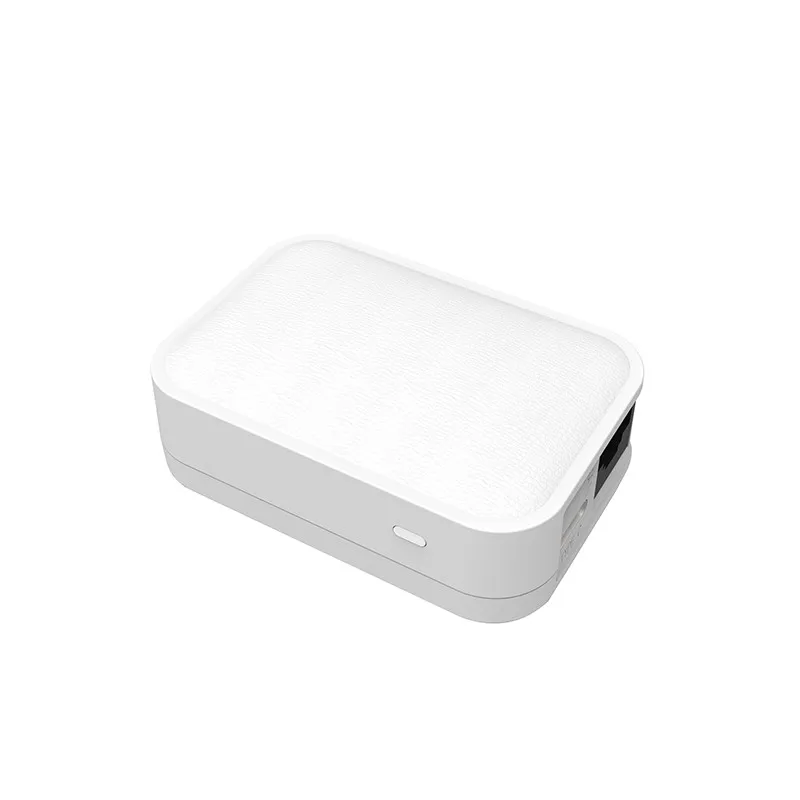

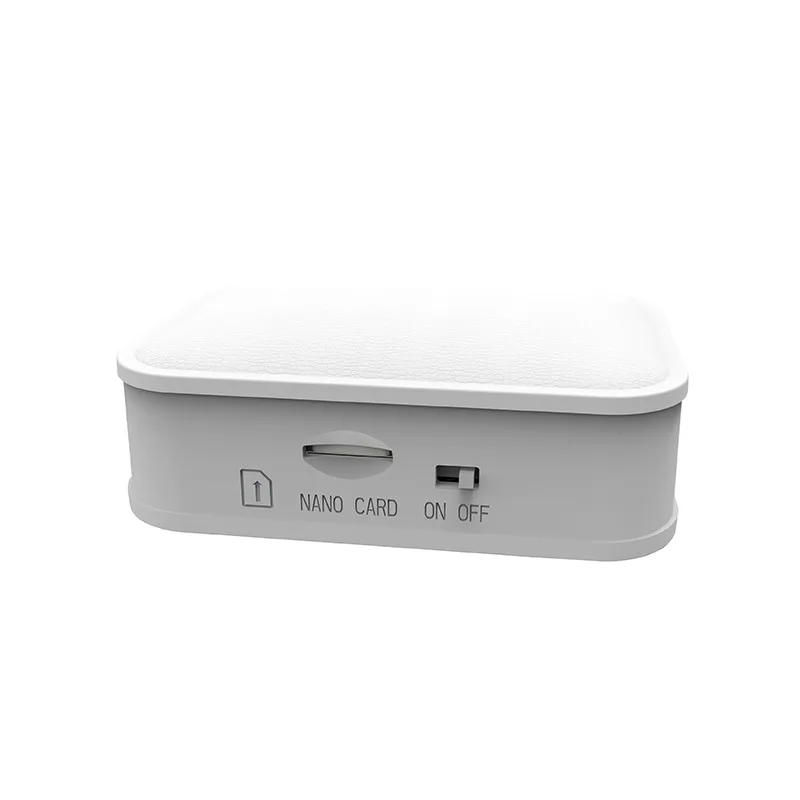

2. Product Photo

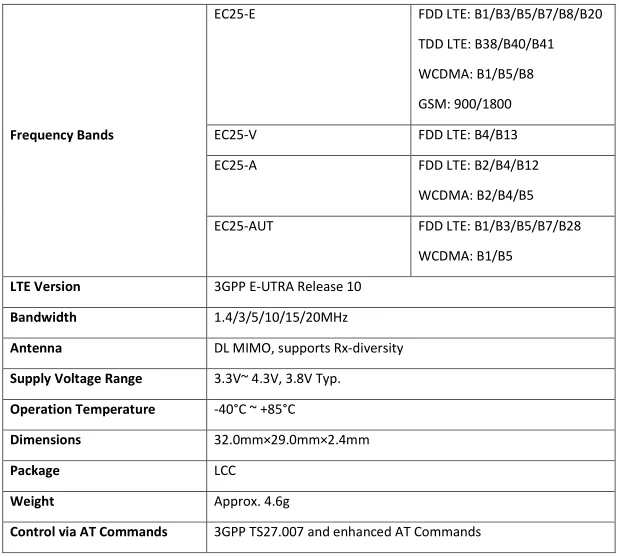

3. 4G LTE (EC25) Specification

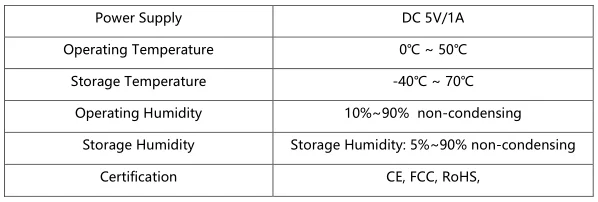

4. Environment
Our Company
Our Team
Packing & Delivery
FAQ

1.Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.

2.Do you accept PCBA orders only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.

3.Do you provide firmware support?
Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
