16 Port gigabit POE Switch for CCTV IP Camera

FOB Reference Price:Get Latest Price
$164.00 - $175.00 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
GC-SW057H
Product name:
GC-SW057H
product status:
in stock
Fixed port:
16 10/100Base-TX ports. 2 Gigabit Combo Ports
LED Indicators:
PWR, PoE, Link/Act LED
Input voltage:
100V~240V AC,50/60Hz
Switching capacity:
7.2G
Weight:
<4.5 Kg
PoE port:
8/16 10/100Base-TX ports
PoE Standard:
IEEE802.3af, IEEE802.3at, per port 15.4W, max 30W
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
oolite
Supply Ability
Supply Ability:
2000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
PE bag and gift box
Port
shenzhen
Product Description
16+2G Ports POE Switch with internal power supplies

The GC-SW057H is a 16 ports 10/100M and two Gigabit Uplink Combo Ports POE Switch which It is


used for residential building in the corridor-level broadband switching equipment, for the edge of the


access and LAN to provide high-quality network connections. It provides 16 10/100Mbps Auto-


Negotiation RJ45 ports, 2Gigabit Combo Ports( SFP+RJ45) and 8 or 16 POE ports. The POE ports can

automatically detect and supply power for the IEEE802.3af and IEEE802.3at compliant Powered


Devices (PDs), like Voip Phone, PoE APs, IP Phones, IP cameras,etc.

The GC-SW057H is a 19" case-shaped device with 1U high. It is with the internal industrial power


supplies, have two optional power supplies-250W, 400W. All POE ports support both IEEE802.3af


and IEEE802.3at Standard; each port can output 30W max.Extend Function: Power lightning


protection, solid vlan.

Product Details
1. Product Features

IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at

Provides 16 10/100Base-TX ports, 2 Gigabit Combo Ports( SFP+RJ45)

Provides 8/16 PoE ports, Each POE port output 30W max power

Build in power supplies, optional 250W or 400W

High back-plane bandwidth 7.2Gbps

4K entry MAC address table of the PoE switch with auto-learning and auto-aging

IEEE802.3x Flow control

Surge protection for power port and data ports

19'' rack-mounted size metal case for the POE switch

Pin Feet: V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6)

EMI standards complies with FCC, CE class B

Extend Function: Power lightning protection, solid vlan.


Package: S2018-P POE switch,User Manual,Power Cable,Warranty Card

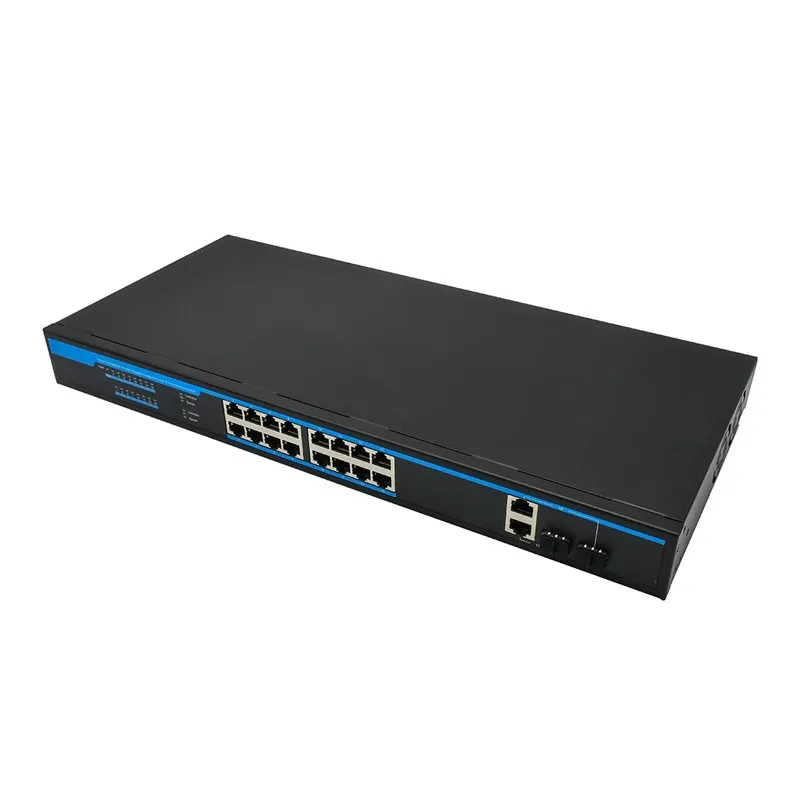

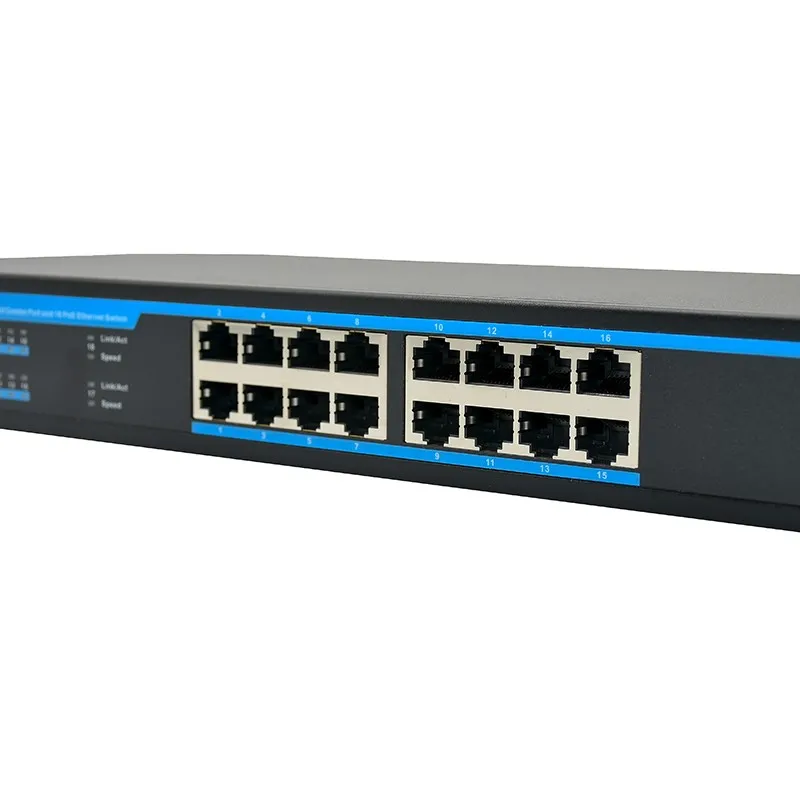

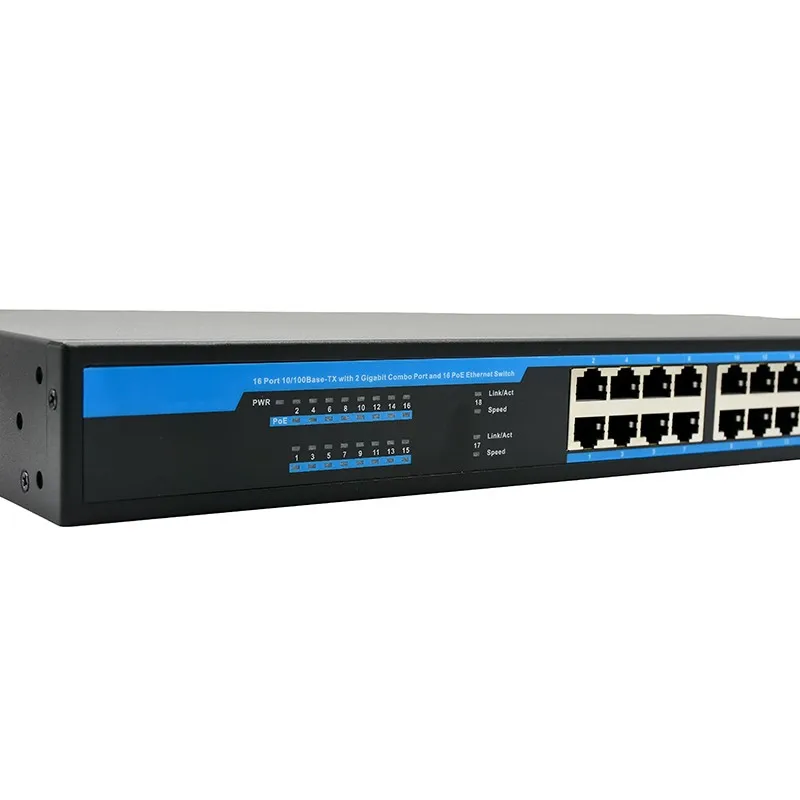

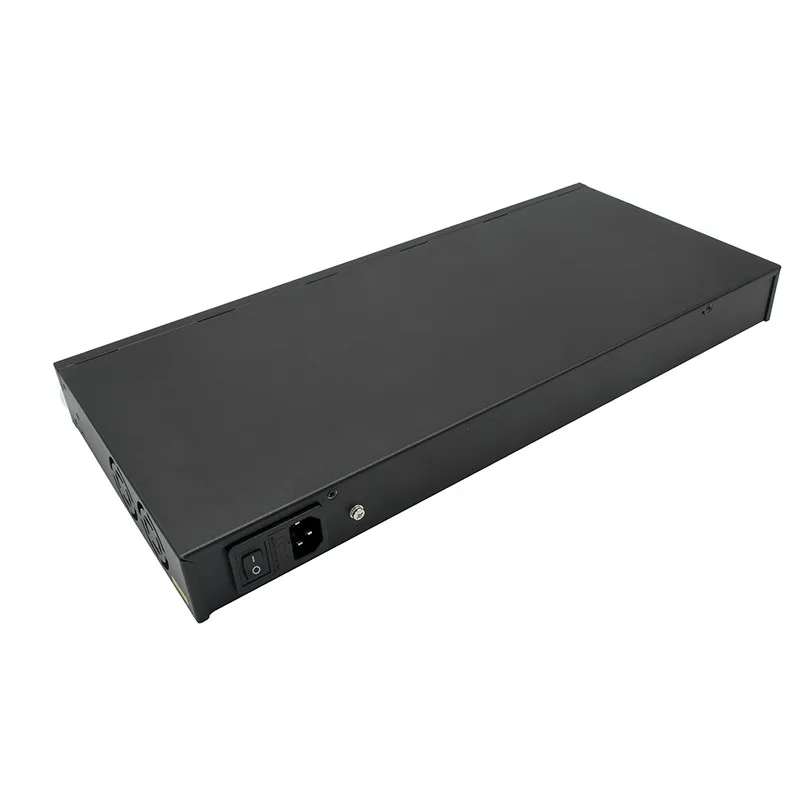

2. Product photo
3. Environment
Our Company
Our Team
Packing & Delivery
FAQ

1.Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.

2.Do you accept PCBA orders only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.

3.Do you provide firmware support?
Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
