300Mbps 2.4G wireless wifi USB mini family small AP router

  • 1 - 1999 Pieces
    $18.00
  • 2000 - 4999 Pieces
    $11.80
  • >=5000 Pieces
    $11.50
Model Number:
MiniBox V3
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Max. LAN Data Rate:
300Mbps
With Modem Function:
No
Standards And Protocols:
Wi-Fi 802.11b, Wi-Fi 802.11g, Wi-Fi 802.11n
Wi-Fi Supported Frequency:
2.4G
Wi-Fi Transmission Standard:
802.11b
Wired Transfer Rate:
10/100Mbps
2.4G Wi-Fi Transmission Rate:
300 Mbps
Type:
Wireless
Application:
Enterprise
Function:
WEP, WPA/WPA2,WPA-PSK/WPA2-PSK encryptions.
LAN Ports:
1
WAN Ports:
1
Certification:
CE FCC ROHS, CE, FCC, RoHS
Brand Name:
Oolite
Place of Origin:
Guangdong, China
CPU:
QCA9531
RAM:
64M DDR2
Frequcency:
2.4~2.484GHz
Antenna Type:
Built-in smart omnidirectional antenna
Port:
2 FE RJ45
Dimensions:
64mm x 44.5mm x22.3mm(L x W x H)
EIRP:
<20dBm (EIRP)
Wireless Standards:
IEEE 802.11b/g/n
Indicator:
WLAN/System
Products Status:
Stock
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
white paper box or as your request
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Product Description

Hotsale Openwrt Mobile Mini Wifi Router


1. Overview:

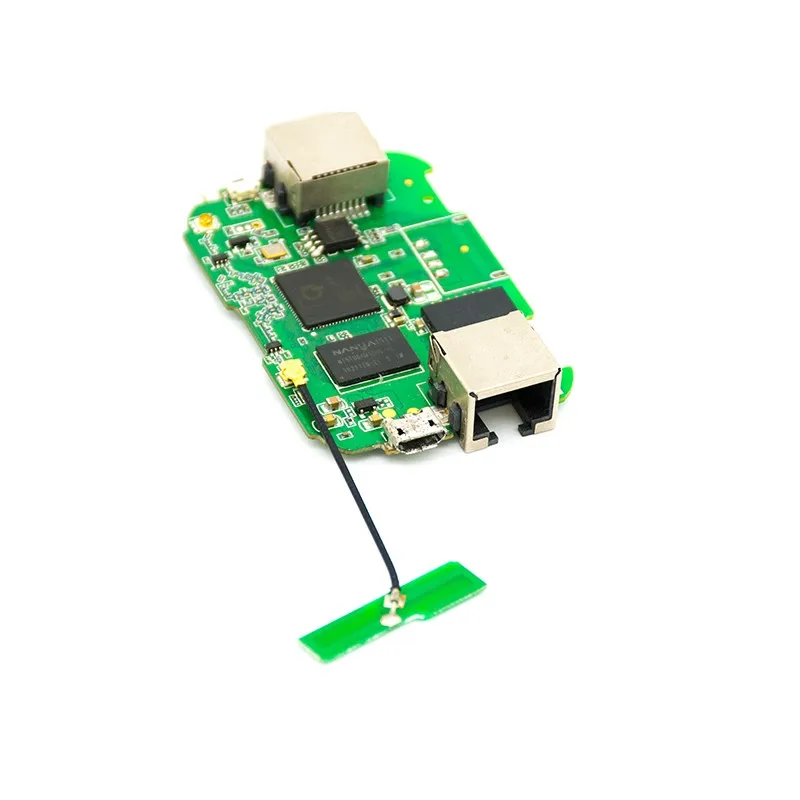

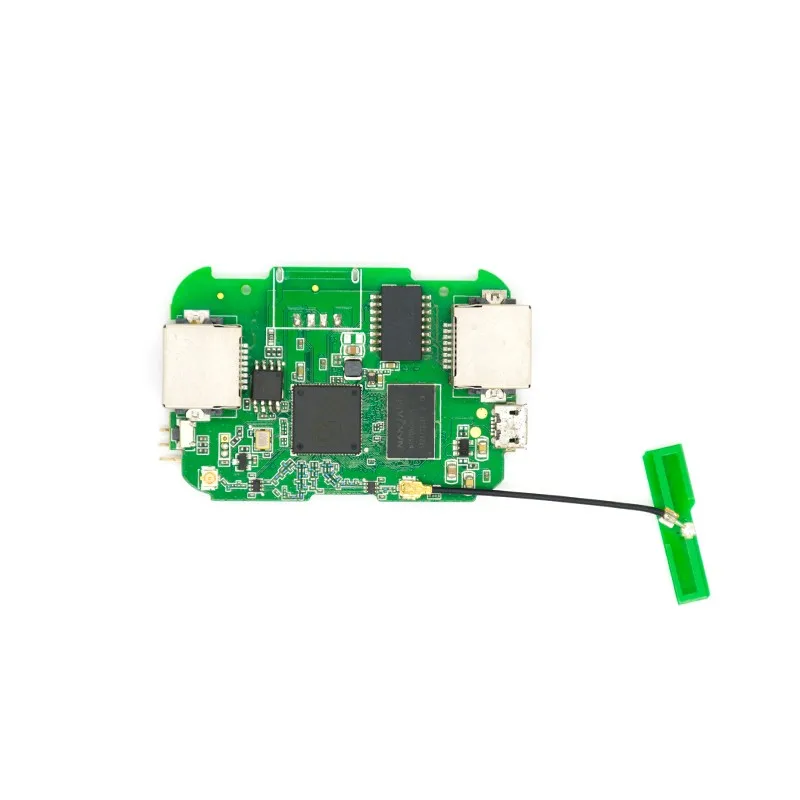

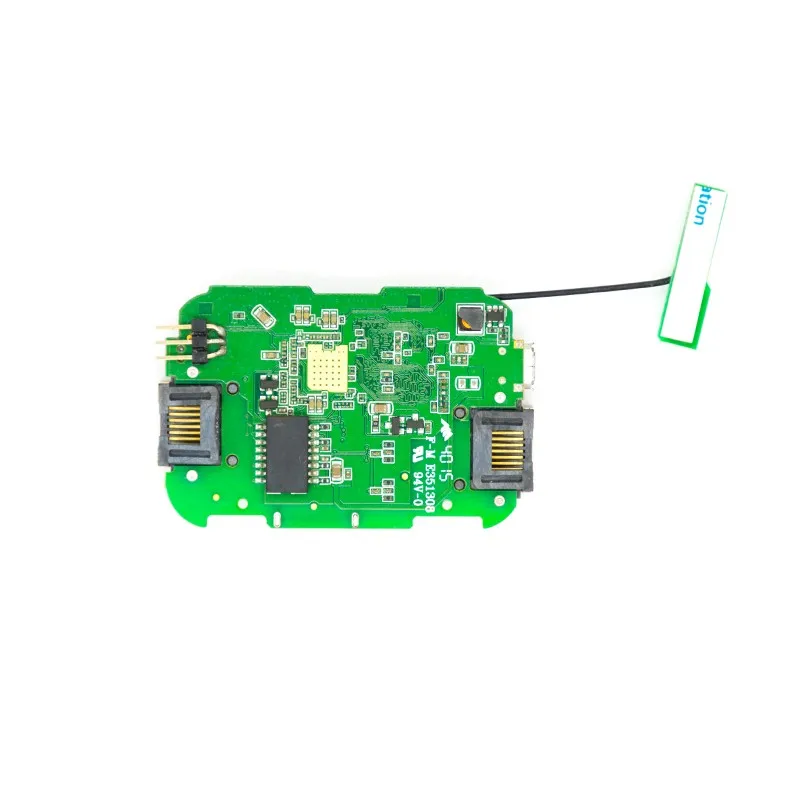

MiniBox V3.0 is exquisite portable and small wireless router which designed for those who use
mobile devices like smart phone, PADs, notebook to surf the internet. MiniBox V3.0 Router has 2 FE
RJ45 ports which support both wired connection and wireless connection at the same time.it allows users not only able to share their internet by wired connection but also wireless connection.

MiniBox V3.0 Router comply with internet standard IEEE802.11b,IEEE802.11g and IEEE802.11n,maximum wireless rate can reach to 300Mbps ,with 2X2T2R MIMO technology.Wireless signal is more powerful ,wider extension. The power consumption of MiniBox V3.0 is very low(<2W)


Hardware Specifications






Interface
1 10/100Mbps WAN/LAN Port
1 10/100Mbps LAN Port
1 USB Port
1 UART console
1 RESET Button
1 Micro USB (5V/0.5A Input)
Wireless Standards
IEEE 802.11b/g/n
Indicator
WLAN/System
Antenna Type
Built-in smart omnidirectional antenna
Dimensions
Dimensions
CPU
AR9331
DDR2
64M
Frequcency
2.4~2.484GHz

Signal Rate
11n: Up to 135Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
EIRP
<20dBm (EIRP)


Reception Sensitivity
135M:-70dBm@10%PER
65M:-73dBm@10%PER
54M:-76dBm@10%PER
Wireless Modes
AP Mode, Router Mode
Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security
64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Our Company

Shenzhen Gainstrong Technology Ltd.was established on 2009 ,Our factory located in Shajing town ,Bao An District ,Shenzhen, China , professional manufacturer of various wifi module wifi router specialize in Qualcomm Atheros AR9XXX, QCA9XXX, IPQ, QCA40XX and MT76XX ,Allwinner, Intel x86 with wifi, lora, NB-iot, 3G/4G communication devices ODM/OEM.Usually for Industry application.

Packing & Delivery

Packing.
Low Power Wireless Lora Transmitter Receiver Module Wireless Control System plastic tray or blister
Delivery
Low Power Wireless Lora Transmitter Receiver Module Wireless Control System
1) By DHL or Fedex express;
2)By sea to the main coastal city in your country;
3)By airmail or EMS;
4)Any other viable methods for delivery accepted by both parties.

FAQ

1.Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.
2.Do you accept PCBA orders only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
3.Do you provide firmware support?
Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
skype :bella(a)ioes.cn email:bella(a)ioes.cn
