Router+RF+IR+Wifi wireless control home security via phone

FOB Reference Price:Get Latest Price
$50.00 - $150.00 / Piece | 5 Piece/Pieces (Min. Order)
Support Sea freight
Report Suspicious Activity
Quick Details
Model Number:
Minibox-LoRa V1.0
Brand Name:
Place of Origin:
Guangdong, China
MT7688AN + SX1276
Spi Nor Flash:
1 * WiFi external antenna,80211 b/g/n 150Mbps
1 * 10Mbps/100Mbps Ethnet Port
1 * System LED
1 * Reset Button
power supply:
5V/1A DC
433MHz/470 MHz/868MHz,/915 MHz,can be setting
Smart Home,IOT,Industry 4.0
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Carton case
Shenzhen / hongkong
Lead Time :
3-20 working days after payment
Product Description

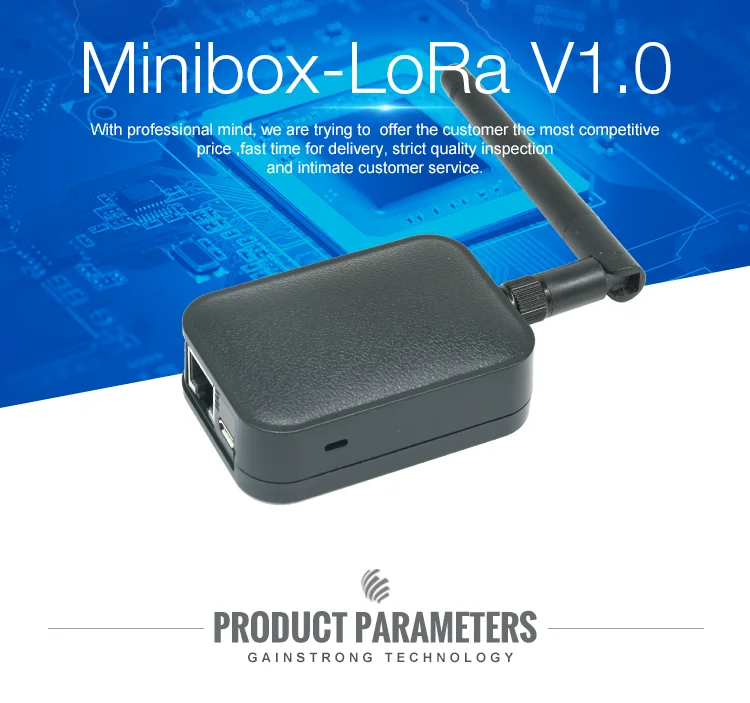

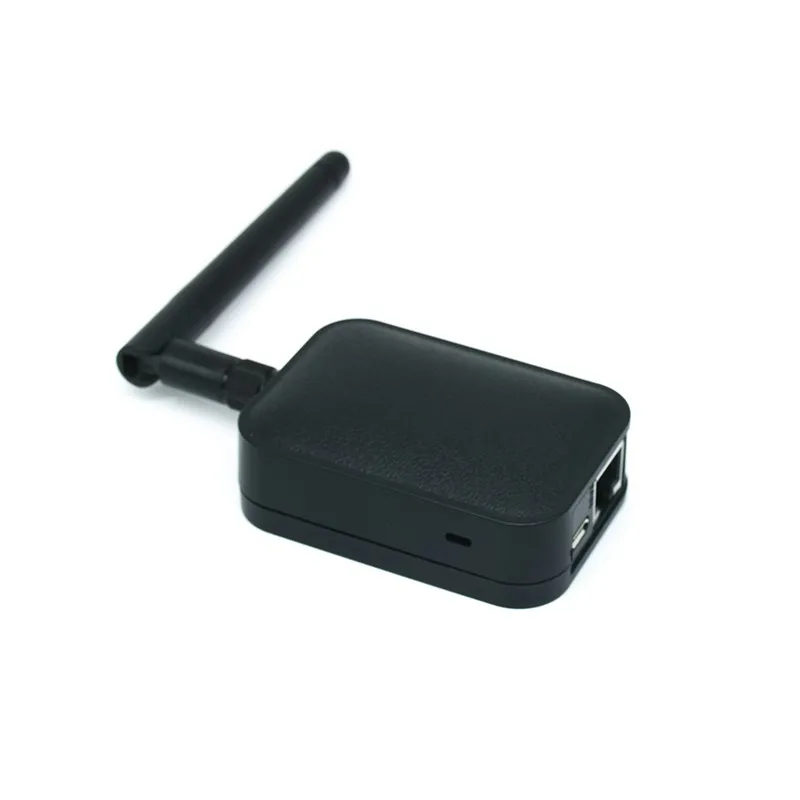

Minibox-LoRa is a smart LoRa sulution for IOT. MT7688AN + SX1276 (433MHz 470 MHZ or 868MHZ or 915Mbps.Can update local data to Internet(Server).
MT7688 family integrates a 1T1R 802.11n Wi-Fi radio, a 580MHz MIPS® 24KEc™ CPU, 1-port fast Ethernet PHY,USB2.0 host, PCIe, SD-XC, I2S/PCM and multiple slow IOs.
MT7688 provides two operation modes – IoTgateway mode and IoT device mode. In IoT gateway mode, the PCI Express interface can connect to 802.11ac.chipset for 11ac dual-band concurrent gateway. The high performance USB 2.0 allows MT7688 to add 3G/LTE modem support or add a H.264 ISP for wireless IP camera. For the IoT device mode, MT7688 supports eMMC,SD-XC and USB 2.0. MT7688 can support the WiFi high quality audio via 192Kbps/24bits I2S interface and VoIPapplication through PCM. In IoT device mode, it further supports PWM, SPI slave, 3rd UART and more GPIOs.For IoT gateway, it can connect to touch panel and BLE, Zigbee/Z-Wave and sub-1G RF for smart home control.
The SX1276/77/78/79 transceivers feature the LoRaTM long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.
These devices also support high performance (G)FSK modes for systems including WMBus, IEEE802.15.4g. The SX1276/77/78/79 deliver exceptional phase noise, selectivity, receiver linearity and IIP3 for significantly lower current consumption than competing devices.
Automated Meter Reading.  Home and Building Automation.  Wireless Alarm and Security Systems.  Industrial Monitoring and Control  Long range Irrigation Systems.

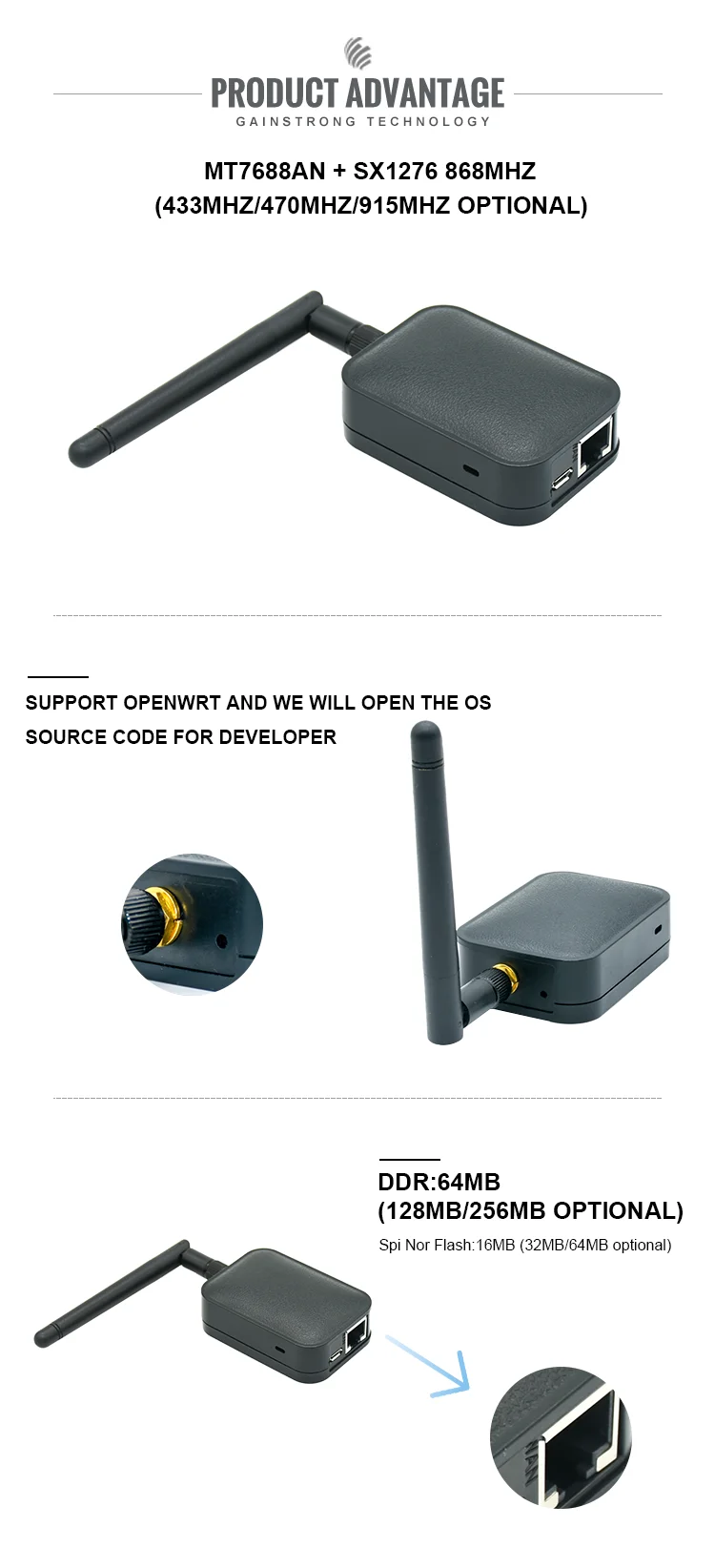

MT7688AN + SX1276 (433MHz/470 MHz/868MHz,/915 MHz,can be setting)


Spi Nor Flash:16MB/32MB/64MB

1 * WiFi external antenna,80211 b/g/n 150Mbps.

1 * 10Mbps/100Mbps Ethnet Port.

1 * System LED

1 * Reset Button

Used for Smart Home,IOT,Industry 4.0, etc…

5V/1A DC power supply

MT7688AN + SX1276
Spi Flash
1* WiFi external antenna,80211 b/g/n 150Mbps.
Ethnet Port
1 * 10Mbps/100Mbps
1 * System LED
1 * Reset Button
power supply
5V/1A DC power supply
433MHz/470 MHz/868MHz,/915 MHz,can be setting
STM32 + SX1276 (433MHz/470MHz/868MHz/915 MHz,can be setting)

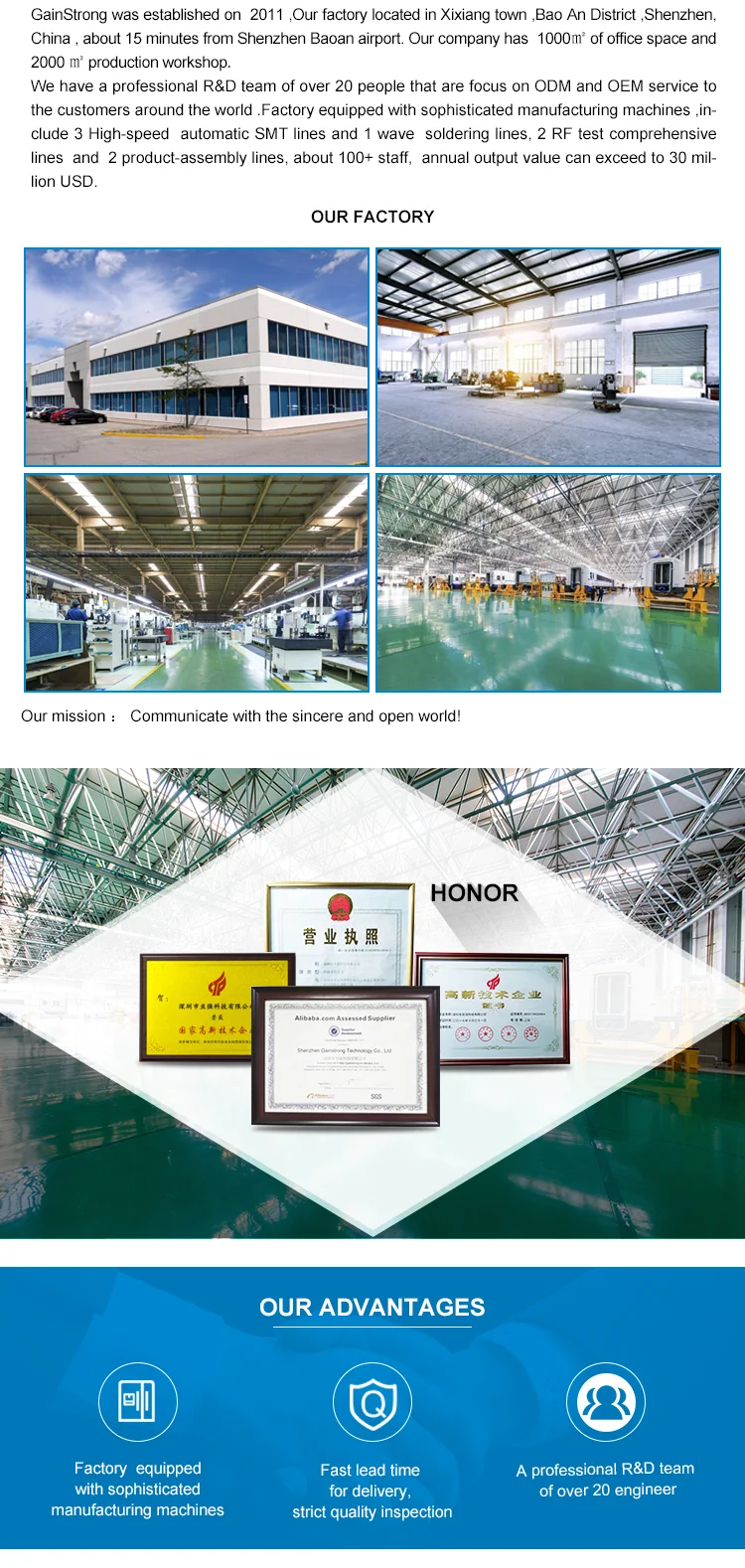

Our Company

Packing & Delivery

1.OEM and ODM are warm welcomed;
2.Reply your inquiry in 24 working hours;
3.Delivery the goods to our partners with high speed and great precision;
4.Offer customers the most competitive price with good quality wireless networking equipment.


1. Can I take a sample before bulk order?
Yes, we can support you samples for function test first.

2. How long to make sample or mass production?
Usually we have sample in stock, processing time will be around 3~5days

3. Do you accept OEM / OEM?
GainStrong is engaged in providing professional ODM/OEM service of customized electronic productions. Our R&D team members have rich hardware and software experience on providing global customers with complete stable and cost-effective products.

4. Is there MOQ limit?
Welcome to place sample order to check the quality before bulk orders.
Any qty welcome,but as you know,different qty with different price.
Large qty means low cost.
