MT7688AN low cost openwrt wifi module and mini wifi router

  • 1 - 1999 Pieces
    $20.00
  • 2000 - 4999 Pieces
    $9.10
  • >=5000 Pieces
    $8.70
Model Number:
Oolite V3.4S(MT7688AN)
Report Suspicious Activity
Overview
Quick Details
With Modem Function:
No
Products Status:
Stock
Type:
Wireless
Product name:
openwrt wifi module
Chipset:
MT7688AN
RAM:
64 Mbytes DDR2
Flash:
16MBytes SPI NOR Flash
Frequency:
2.4Ghz
wifi speed:
300Mbps
GPIO:
37
USB:
USB 2.0
Antenna:
2 IPEX external antenna
Power supply voltage:
3.3V
Supply Ability
Supply Ability:
2000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
gift box
Port
shenzhen
Lead Time :
20-30 working days
Product Description

Smallest openwrt wifi module

Oolite V3.4 is powerful, reliable,easy to use and with extremely small size(35mmx 20mm x 2.5mm).Low power consumption so can use on IOT device. MT7628AN with 580/575 MHz MIPS 24KEc with 64 KB I-Cache and 32 KB D-Cache. WiFi: 2T2R 2.4 GHz With 300Mbps 802.11 b/g/n.
MCM 64 Mbytes DDR2 KGD(Build in MT7628AN Chipset) .16MB SPI NOR Flash ROM(8/16/32/64M optional).
The MT7628AN router-on-a-chip includes an 802.11n MAC and baseband, a 2.4 GHz radio and FEM, a 575/580 MHz MIPS® 24K™ CPU core, a 5-port 10/100 fast ethernet switch. The MT7628AN includes everything needed to build an AP router from a single chip. The embedded high performance CPU can process advanced applications effortlessly, such as routing, security and VoIP. The MT7628AN also includes a selection
of interfaces to support a variety of applications, such as a USB port for accessing external storage.

Product Details
1. Features

CPU: MT7628AN with 580/575 MHz MIPS 24KEc with 64 KB I-Cache and 32 KB D-Cache

RAM: MCM 64 Mbytes DDR2 KGD(Build in MT7628AN Chipset)

Flash: 16MBytes SPI NOR Flash ROM(8MB/16MB/32MB/64MB optional)

WiFi: 2T2R 2.4 GHz With 300Mbps 802.11 b/g/n

GPIO:37(total and share with), High-speed UART for console support

USB: 1 x USB 2.0 master interface, support USB hub extension

5-port 10/100 FE PHY in Gateway Mode

1-port 10/100 FE PHY in IOT Mode

1×PCIE interface

Antenna:2 × IPEX external antenna(default) or use the stamp hole pins interface

Debug: serial debugging interface has lead out.

Power supply voltage: 3.3V

Size: 35mm x 20mm x 2.5mm (without shield)

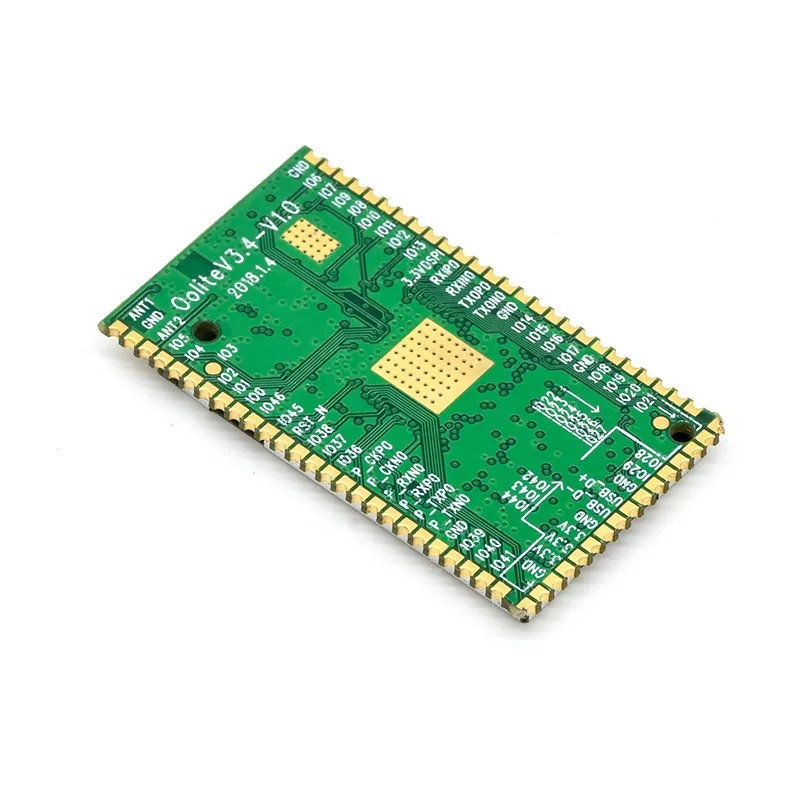

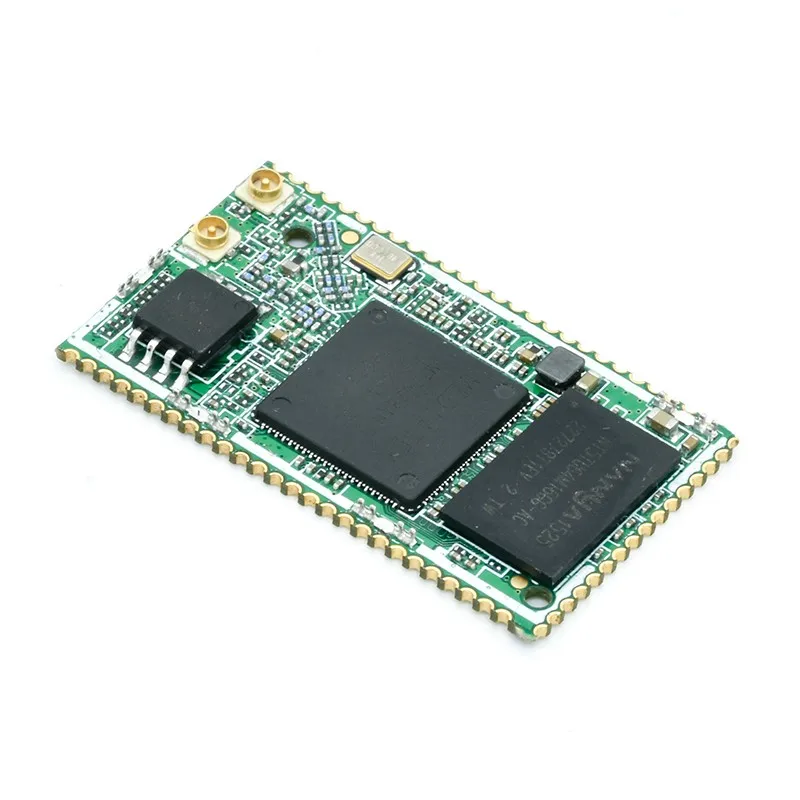

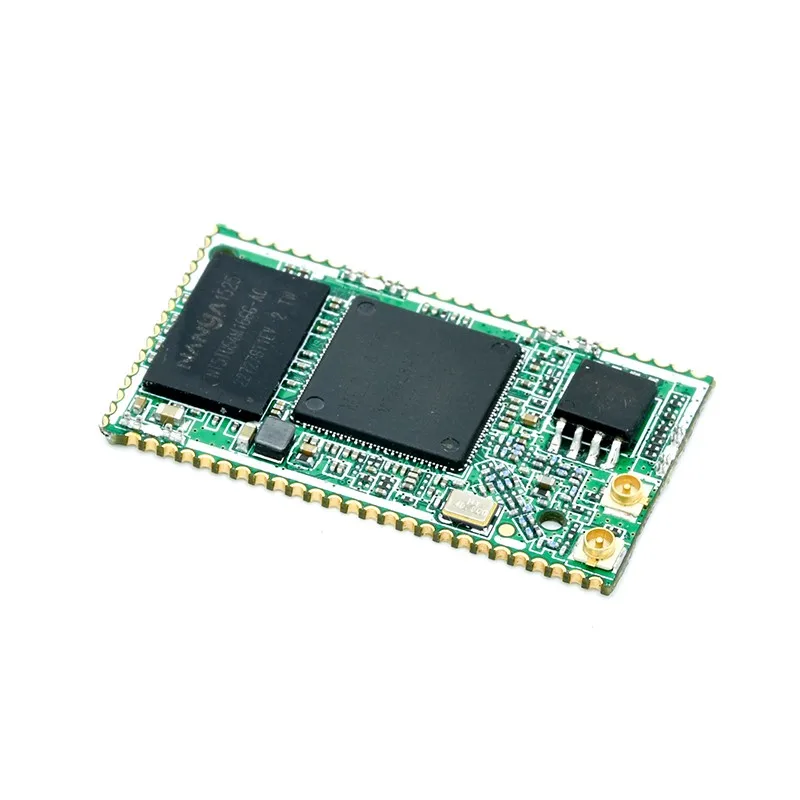

2. Product photos

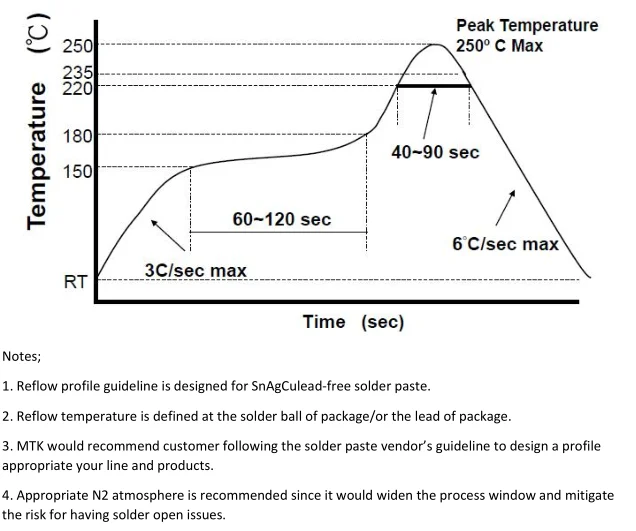

3. Reflow Profile Guideline

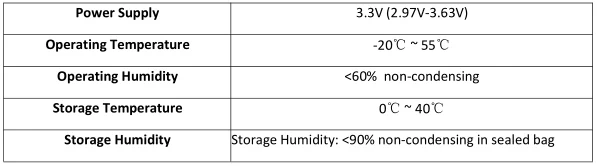

4. Environment
Our Company
Our Team
Packing & Delivery
FAQ

1.Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.

2.Do you accept PCBA orders only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.

3.Do you provide firmware support?
Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
