base board module mini pocket pcie 3g 4g wifi router openwrt

  • 1 - 1999 Pieces
    $22.00
  • 2000 - 4999 Pieces
    $18.50
  • >=5000 Pieces
    $17.50
Model Number:
MiniBox V3.2
Report Suspicious Activity
Overview
Quick Details
With Modem Function:
No
Products Status:
Stock
Type:
Wireless
Function:
Firewall, QoS
Brand Name:
oolite
Place of Origin:
Guangdong, China (Mainland)
Chipset:
QCA9531
RAM:
128MB DDR2 RAM (64MB optional)
Flash:
16MB SPI NOR Flash(8/16/32/64M option)
EEPROM:
32Kbit
USB::
1 Micro USB (support 1 USB2.0)
RESET Button:
1 RESET Button
Port:
1WAN+ 1 LAN
Antenna:
3 external antenna
PCIE:
1 PCIE
UART:
1 UART console
Supply Ability
Supply Ability:
3000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
plastic bag or other
Port
shenzhen
Lead Time :
3 weeks
Product Description

General Description

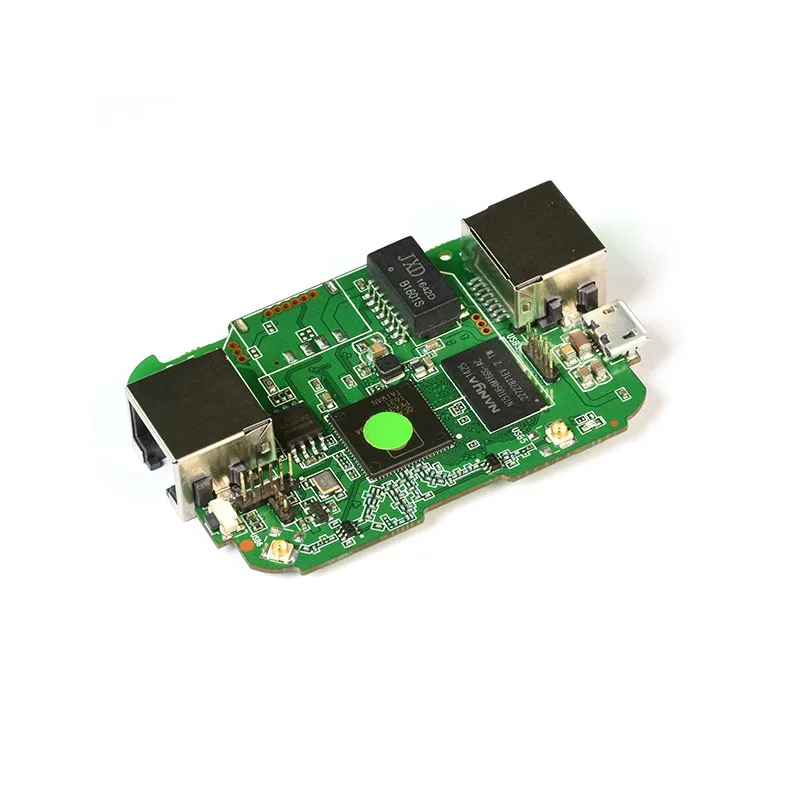

MiniBox V3.2 is exquisite portable and small wireless router that supports 5G WIFI and 2.4G WIFI. Itcompatible 802.11 a/b/g/n/ac maximum wireless rate can reach to 300Mbps.It is made up of base boardand module.The base board use the QCA9531 chip that is a highly integrated and feature-rich IEEE802.11n2x2 2.4 GHz System-on-a-Chip (SoC) for advanced WLAN platforms. The module use the QCA9887 chipwhich integrates a multi-protocol MAC, PHY, analog-to-digital/ digital-to-analog converters (ADC/DAC),1x1radio transceivers, and PCI Express interface in an all-CMOS device for lowpower consumption and smallform-factor applications.
MiniBox V3.2 has 2 FE RJ45 ports which support both wired connection and wireless connection at thesame time.it allows users not only able to share their internet by wired connection but also wirelessconnection.Its power consumption is very low.
Applications Stage
● Smart home network equipment
● Wireless WIFI device
● Industrial field

Features:
◆ CPU: QCA9531 with 550 MHz MIPS 24Kc and QCA9887
◆ Supports 20/40/80 MHz at 5 GHz
◆ RAM: 128MB DDR2 RAM (64MB optional)
◆ Flash: 16MB SPI NOR Flash(8/16/32/64M option)
◆ EEPROM:32Kbit
◆ USB: 1×Micro USB (support 1×USB2.0)
◆ Power supply voltage: 5V
◆ Port: 1WAN+ 1 LAN
◆ Antenna: 3×external antenna.
◆ PCIE:1× PCIE

1×RESET Button
◆ 1×UART console

Detailed Images
Our Company

Shenzhen Gainstrong Technology Ltd. is a professional manufacturer for Network communication products ,including wifi Routers,wifi modules, Industial wifi equipment,smart home devices...and so on .The company was established on 2009 ,Our factory located in Shajing town ,Bao An District ,Shenzhen, China ,We are focus on ODM and OEM service to the customer all over the world with professional R&D team . Factory equipped with sophisticated manufacturing machines ,include 1 High-speed SMT production lines and 2 product-assembly lines, about 40 staff, Production capacity for wifi modules can be 2000pcs per day.

With professional mind, we are trying to offer the customer the most competive price ,quick lead time for delivery, strict quality inspection and intimate customer servervice. To satisfy customer perfectly,we are managing the safety ability and the design which combines the sensibility and technique , as well as the advanced equipment.

FAQ

1. Can I order a sample ? how fast can l get it ?
Yes, usually we have sample in stock, even without, processing time will be around 3~4days

2.. How fast can l get my order after paid?
Our processing time from 1-4 business days, according to size and quantity, and shipping way
Usually, for sample order we ship out in 3-5days , delivery time is around 20~25days

3.Do you support Logo ordering? what is the mini order quantity?
Yes, we provide logo ordering for customers who purchase at least 1000 dollars.
If the assume doesn’t reach 1000 dollars, we need to ask about 1000RMB for design cost.


GainStrong is engaged in providing professional ODM/OEM service of customized electronic productions. Our R&Dteam members have rich hardware and software experience on providing global customers with complete stable andcost-effective products.
