Fourl antenna oolite box4019 wifi openwrt router with TF interface

FOB Reference Price:Get Latest Price
$93.50 - $100.00 / Pieces | 500 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Oolite
Model Number:
Oolite Box4019
Product name:
GC-R014T
Chipset:
IPQ4019+8075
Frequency:
2.4Ghz and 5Ghz dual band
Color:
Black
RAM:
256MB
ROM:
Nor flash 2M nand flash 128M
10/100/1000 Ethernet ports:
5
Number of USB ports:
2
Supported input voltage:
DC: 12V/2A; POE: 802.3 at POE+ 48V/0.5A
Dimensions:
280 mm*166 mm*24mm
Supply Ability
Supply Ability:
2000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Gift Box
Port
Shenzhen
Product Introduction

Oolite Box4019 router, your best choice!

The IPQ4018 is a highly integrated system-on-chip (SoC) designed for high-performance, powerefficient, and cost-effective 2×2, 802.11ac, dual-band concurrent access-point applications. The SoC incorporates a quad-core ARM Cortex A7 processor, two dual-band, concurrent 802.11ac Wave-2 Wi-Fi subsystems, and a five-port Gigabit Ethernet Layer2/3/4 multilayer switch supporting line rate network address translation (NAT). It supports one USB3.0 and one USB2.0. It also supports miscellaneous interfaces such as I2S, SPDIF, I2C, SMI, UART, JTAG, etc., which can be configured as general purpose I/O pins. The block diagram in Figure1-1 shows the major components of the SoC.

Product Parameters
Product Name
Oolite Box4019
Chipset
IPQ4019+8075
Frequency
2.4Ghz+5G Dual Band
RAM
256MB
ROM
 flash 128M
10/100/1000 Ethernet Ports
 4
USB ports
1*USB2.0 and 1*USB3.0
Supported input voltage
DC: 12V/2A; POE: 802.3 at POE+ 48V/0.5A
PoE in
48V/0.5A
PoE out
5V/5A
Slot
1xPCIE
SD slot
1x SD card
LED
POWER/5G/2.4G/LAN1/LAN2/LAN3/LAN4/WAN/USB
Lan port
4
Wan port
1
Button
Reset
Operating system
Openwrt
Dimensions
280 mm×166 mm×24mm
2G Wireless standard
802.11 a/b/g/n/ac
5G Wireless standard
802.11 n/a/ac
Temperature Range
Operation Temperature: -10oC to +50oC
Storage Temperature: -40oC to +70oC

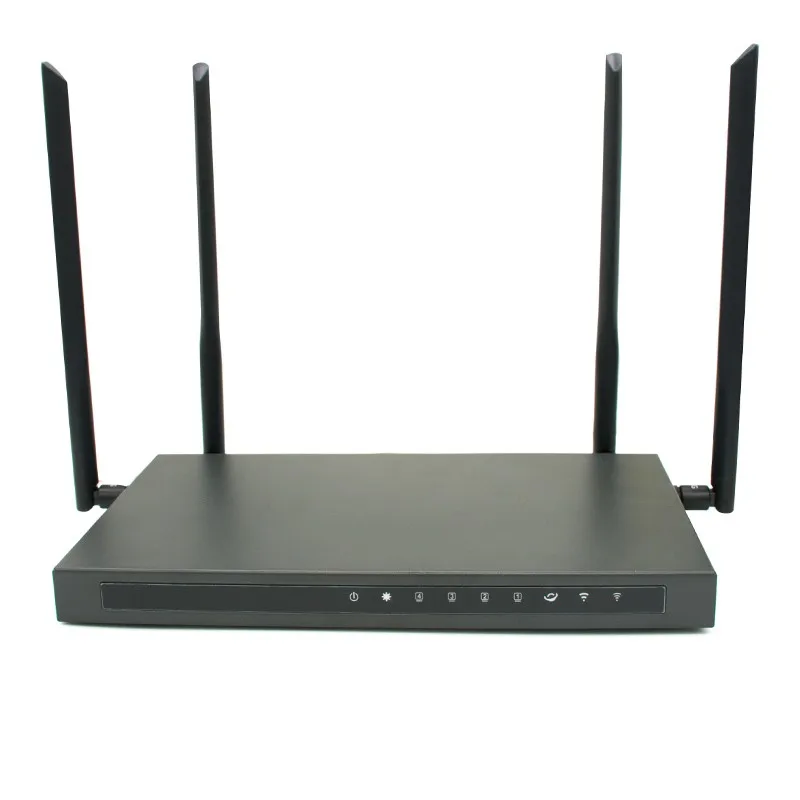

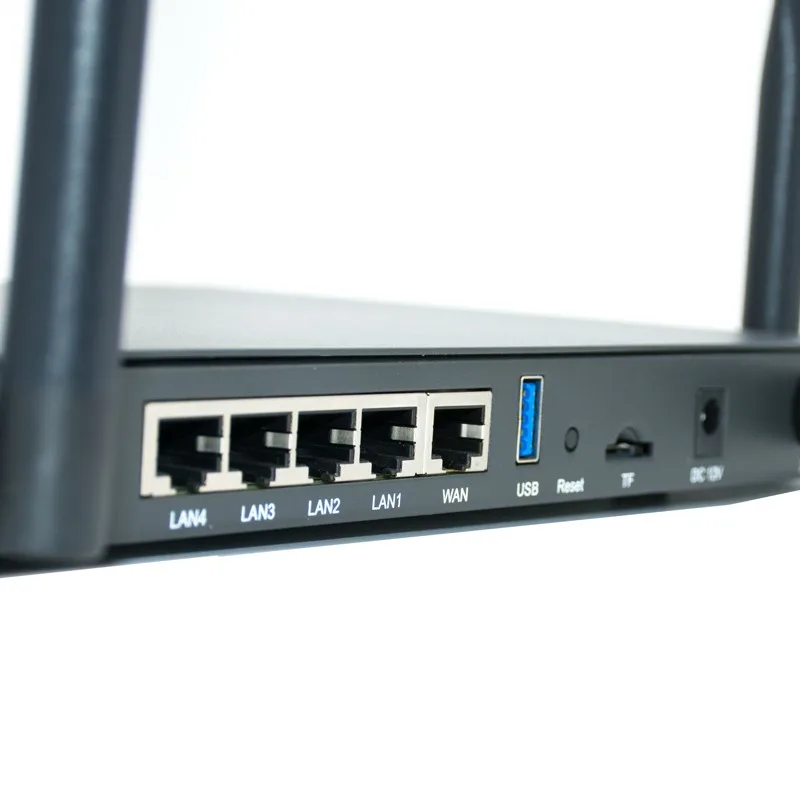

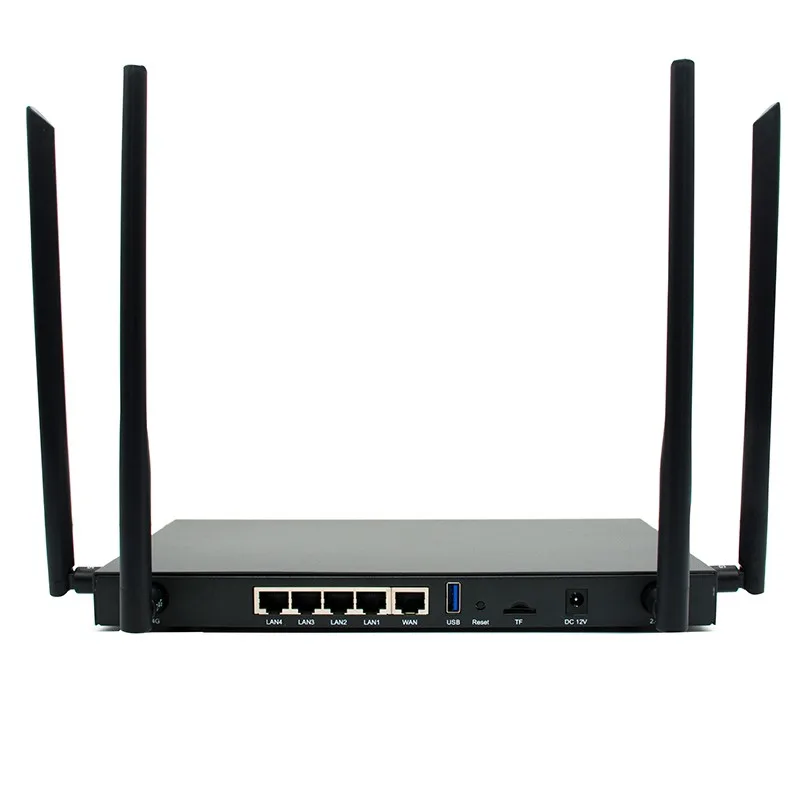

Product Details Show

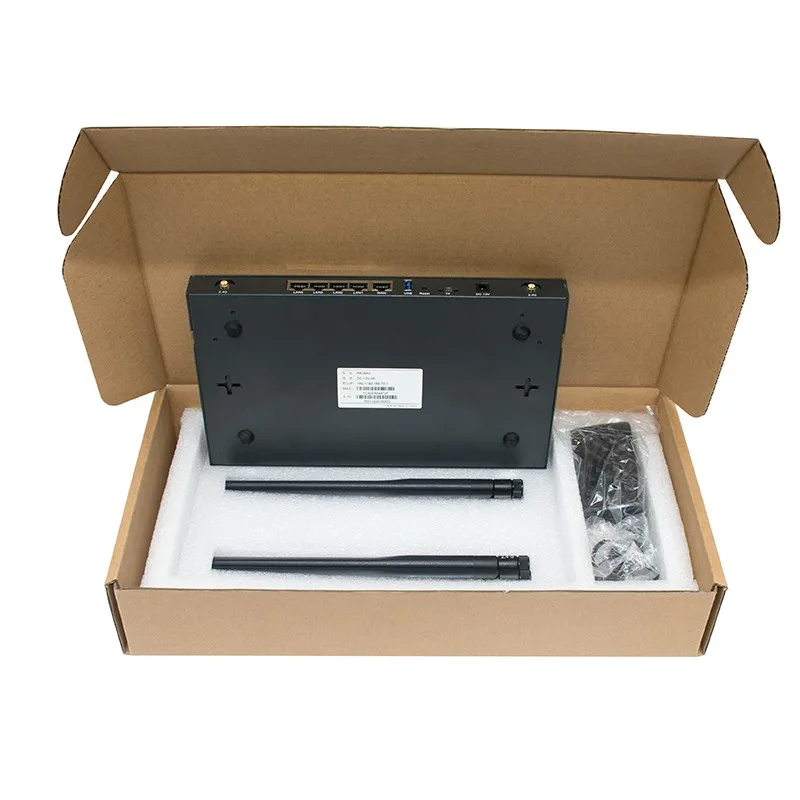

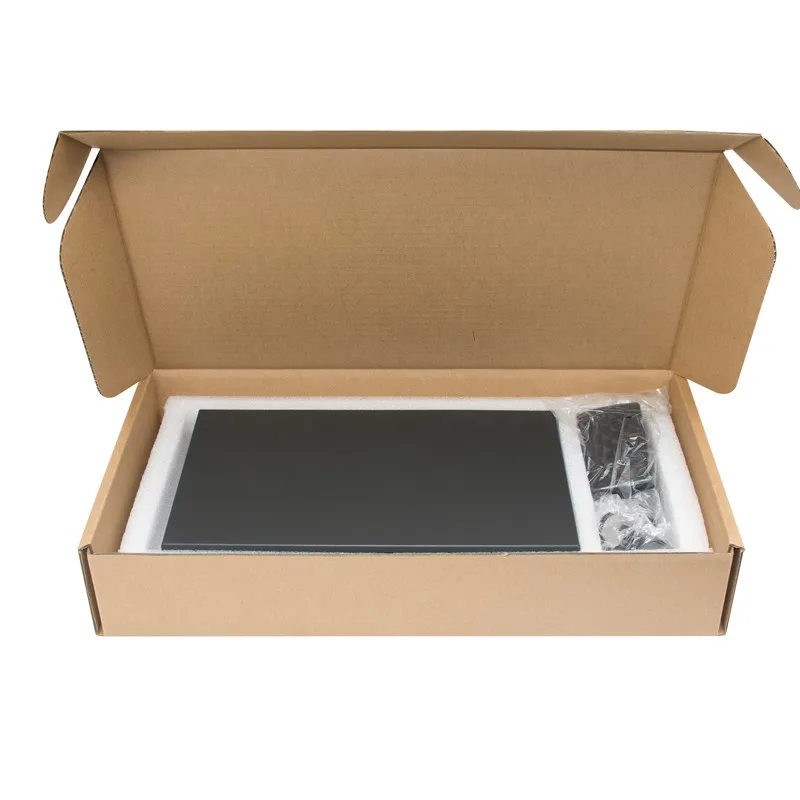

Product Packing
Other Hot Products
Our Company
FAQ

Q1: Why Choose us?
1. We have 8 years experiences on electronics

2. Absolutely prompt shipping time.


Q2: How to pay for order?
You can pay by TTWestern Union,Paypal


Q3: What is the delivery time for order?
We have the products in stock, we could arrange shipping within 3 days
