high-performance best 2.4G 5G dual band new indoor and outdoor super wifi router

  • 1 - 1999 Pieces
    $50.00
  • 2000 - 4999 Pieces
    $42.00
  • >=5000 Pieces
    $39.00
Model Number:
CPE5GD02
Report Suspicious Activity
Overview
Quick Details
Max. LAN Data Rate:
1000Mbps
With Modem Function:
No
Wi-Fi Supported Frequency:
2.4G & 5G
Wi-Fi Transmission Standard:
802.11n
2.4G Wi-Fi Transmission Rate:
300 Mbps
Products Status:
Stock
Type:
Wireless, 5G
Function:
Firewall, QoS
LAN Ports:
1
WAN Ports:
1
Brand Name:
oolite
Place of Origin:
Guangdong, China (Mainland)
Product name:
CPE5GD02 V1.0
Color:
White
Certification:
180*90*1.6
Data Rates:
1167Mbps(300Mbps+867Mbps)
Chipset:
QCA9531/QCA9886
RAM:
DDR2 64M
ROM:
SPI Flash 8M
Button:
1Reset Button
Interface:
USB 2.0
Supply Ability
Supply Ability:
500 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
white paper box
Port
shenzhen
Lead Time :
20~25 DAYs
Introduction

CPE5GD02 V1.0 is a highly integrated and feature-rich IEEE 802.11n 2x2 2.4GHz and 1x1 5GHz System-on-a-Chip (SoC) for wireless local area network (WLAN) AP and router model. It supports 802.11n operations up to 144 Mbps for 20 MHz and 300 Mbps for 40 MHz, and 802.11b/g data rates.
CPE5GD02 V1.0 includes a MIPS 24Kc processor, five port IEEE802.3 Fast Ethernet Switch with MAC/PHY, one USB 2.0 interface,4096 x8 bits,EEPROM
CPE5GD02 V1.0 use QCA9531, The Qualcomm Atheros QCA9531 is a highly integrated and feature-rich IEEE 802.11n 2x2 2.4 GHz System-on-a-Chip (SoC) for advanced WLAN platforms. It runs fast and function rich.
CPE5GD02 V1.0 can be used indoors, hotels, supermarkets and other indoor and outdoor location. It can make life more convenient and quickly. It is fully for human production and life.
The QCA9886 implements half-duplex OFDM, CCK, and DSSS PHY, supporting 867 Mbps for 802.11ac 80 MHz channel operation in 5 GHz mode and IEEE 802.11a/n/ac data rates. Additional features include 802.11ac explicit transmit beamforming (TxBF), 802.11 compatible implicit TxBF, multi-user MIMO(MU-MIMO), Dynamic Bandwidth Switching, Per Packet Switching between 2SS/80 MHz, MaximalLikelihood (ML) decoding, Low-Density Parity Check (LDPC), Maximal Ratio Combining (MRC), SpaceTime Block Code (STBC), and On-Chip One-Time Programmable (OTP) memory to eliminate the needfor an external flash and to further reduce the external component count and BOM cost. The QCA9886supports 802.11 wireless MAC protocol, 802.11i security, Wi-Fi offload, error recovery, and 802.11equality of service (QoS).


Characteristics

QCA9531 2*2 MIMO 2.4GHz WiFi 802.11 b/g/n
QCA9886 2*2 MIMO 5GHz WiFi 802.11 an/ac;
Sigle side compoments and stamp hole pins;
1*PCI Express 1.1 interface(Used by QCA9886);
1*LAN(POE) and 1*WAN(POE) port;
RAM:DDR2 64MBytes/128MBytes Option;
ROM:SPI Flash 8Mbyte/16Mbyte Option;
1*USB 2.0 interface Host Mode;
1* Reset Button
1*Power LED,1* WiFi LED,1*WAN LED,1*LAN LED
Data Rates:1167Mbps(300Mbps+867Mbps);
PCB size:180mm*90mm*1.6mm

PCB SIZE

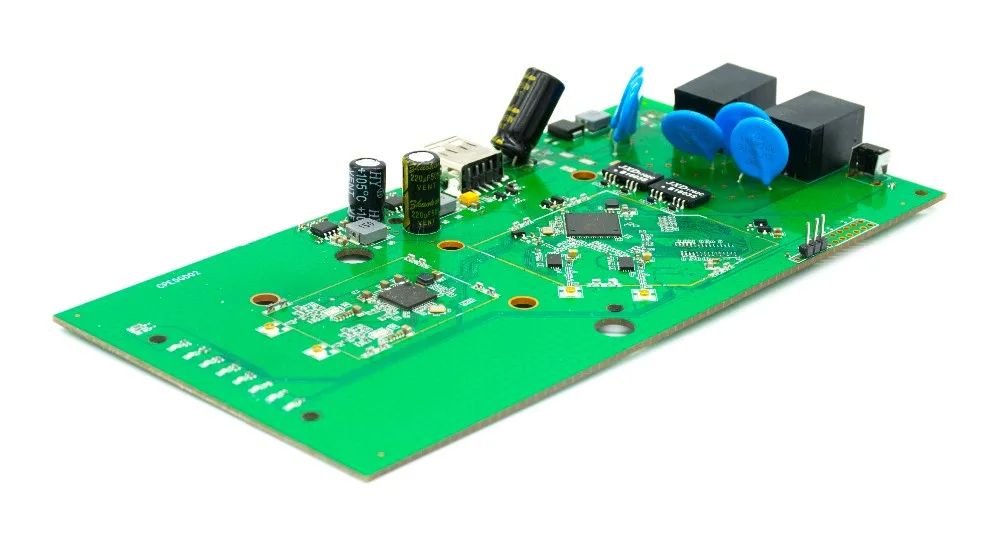

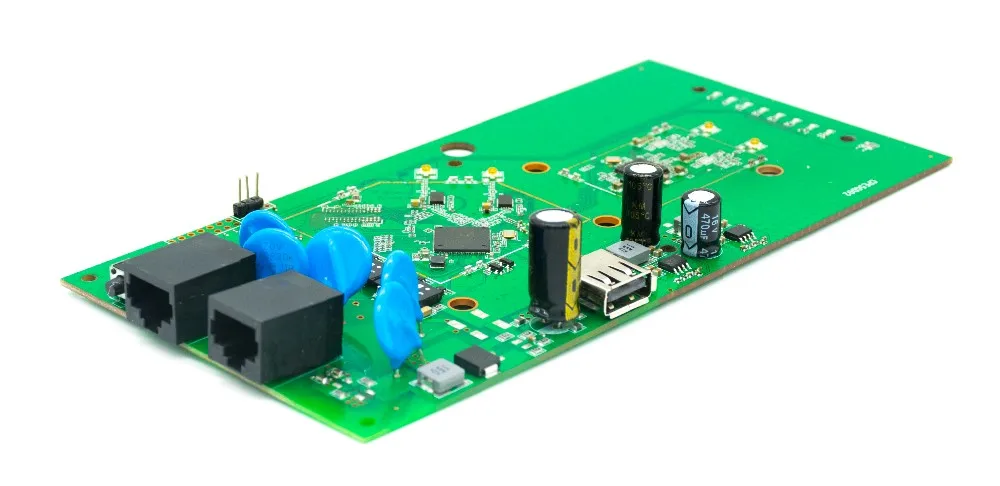

Detailed Image
Environment

Working temperature: -20 ℃ to 50 ℃;
Storage temperature: -40 ℃ to 70 ℃;
Humidity: 10% to 90%RH no condensation;
Storage humidity: 5% to 90%RH no condensation.

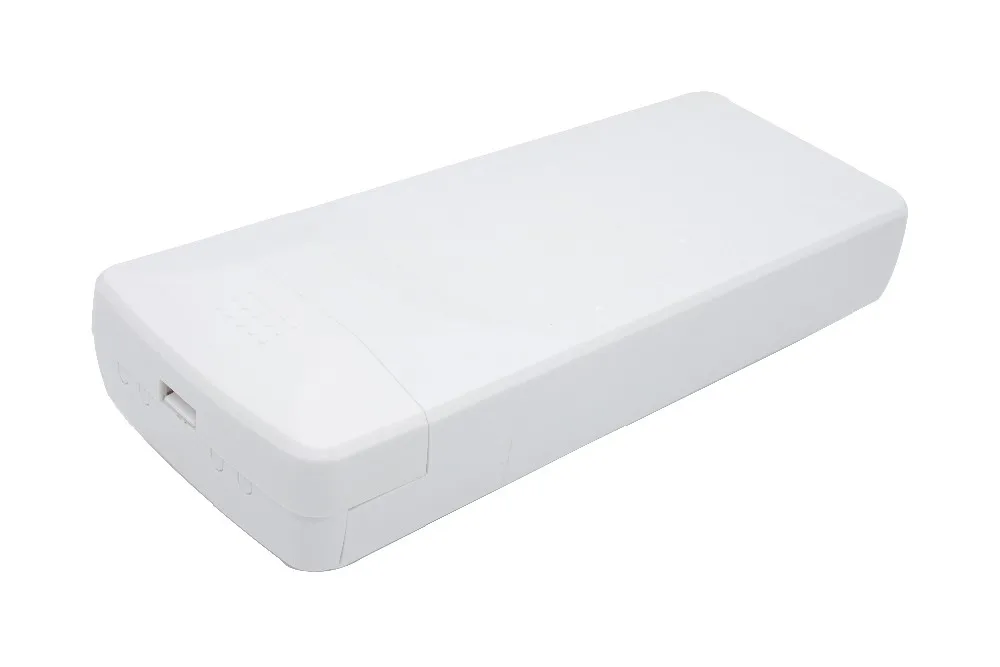

Housing
Our Company

Shenzhen Gainstrong Technology Ltd. is a professional manufacturer for Network communication products ,including wifi Routers,wifi modules, Industial wifi equipment,smart home devices...and so on .The company was established on 2009 ,Our factory located in Shajing town ,Bao An District ,Shenzhen, China ,We are focus on ODM and OEM service to the customer all over the world with professional R&D team . Factory equipped with sophisticated manufacturing machines ,include 1 High-speed SMT production lines and 2 product-assembly lines, about 40 staff, Production capacity for wifi modules can be 2000pcs per day.
With professional mind, we are trying to offer the customer the most competive price ,quick lead time for delivery, strict quality inspection and intimate customer servervice. To satisfy customer perfectly,we are managing the safety ability and the design which combines the sensibility and technique , as well as the advanced equipment.

FAQ

1. Can I order a sample ? how fast can l get it ?
Yes, usually we have sample in tock, even without, processing time will be around 3~4days
2.. How fast can l get my order after paid?
Our processing time from 1-4 business days, according to size and quantity, and shipping way.
usually, for sample order we ship out in 3-5days , delivery time is around 20~25days
3.Do you support Logo ordering? what is the mini order quantity?
Yes, we provide logo ordering for customers who purchase at least 1000 dollars.
If the assume doesn’t reach 1000 dollars, we need to ask about 1000RMB for design cost.
