1.2V High Power Outdoor Board/wireless Access Point/ap Board,Ar9344 at8327wifi module

FOB Reference Price:Get Latest Price
$17.00 - $23.00 / Pieces | 500 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
Oolite V9
Brand Name:
Oolite
Place of Origin:
Guangdong, China
chipset:
AR9344
Voltage:
1.2V
usb:
usb 2.0
Supply Ability
Supply Ability:
3000 Piece/Pieces per Day
Packaging & Delivery
Port
shenzhen
Lead Time :
20-25 working days
Product Description

1.2V High Power Outdoor Board/wireless Access Point/ap Board,Ar9344 at8327wifi module

    The Oolite V9 is a highly integrated and feature-rich IEEE 802.11n 2x2 2.4/5 GHz system-on-a-Chip for advanced WLAN platforms. Which supposes 802.11n operations up to 144 Mbps for 20 MHz and 300 Mbps for 40 MHz respectively, and 802.11a/b/g data rates.
    It includes a MIPS 74Kc processor, PCI Express 1.1 Root Complex and Endpoint interfaces, five port IEEE 802.3 fast Ethernet Switch with MAC/PHY, one MII /RMII/RGMII interface, one USB 2.0 MAC/PHY, and external memory interfaces for serial flash, SDRAM, DDR1or DDR2, I2S/SPDIF-Out audio interface, SLIC VOIP/PCM interface, two UARTs and GPIOs that can be used for LED controls or other general purpose interface configurations.

AR8327
    The AR8327 supports many operating modes that can be configured using a low-cost EEPROM and /or the MDC?MDIO interface. The AR8327 also supports a CPU header mode that appends two bytes to each frame.
    The AR8327 contains a 2 K-entry address lookup table that employs three per bucket to avoid hash collision and maintain non-blocking forwarding performance. The table provides read/write accesses from the serial and CPU interfaces; each entry can be configured as a static entry. The AR8327 supports 4K VLAN entries configurable as port-bases VLANs or 802.1Q tag-based VLANs.
    The CPU can be detected frame with header to configure the switch register, the address lookup table, and VLAN and receive auto-cast MIB frames. The sixth port(port5) supports a PHY interface as a WAN port. The first port (port0) supports a MAC interface and can be configured in MII_PHY or RMII_PHY mode to connect to an external management CPU or an integrated CPU in a routing or xDSL engine.

Product Details

1. Features

74Kc MIPS processor with 64KB I-Cache and 32KB D-Cache, operating at up 533 MHz
32KB D-Cache, operating at up to 533 MHz
External 16- or 32- bit DDR1,DDR2 operating at up to 200 MHz(400 M transfers/sec), or 16-bit SDRAM memory interface operating at up to 200 MHz
NAND and SPI NOR Flash memory support
0/100 Ethernet Switch with five IEEE 802.3 Ethernet LAN ports
MII/RMII/RGMII interface
802.3az Energy Efficient Ethernet compliant
Hardware-based NAT&ACL accelerators for Ethernet interface
Both PCI Express 1.1 Root Complex and Endpoint interface supported simultaneously
One USB 2.0 controller with built-in MAC/PHY supports Host or Device mode
Boot from external CPU via PCIE, USB, xMII, eliminating need for external flash
I2S/SPDIF-out audio interface
SLIC for VOIP/PCM
One low-speed UART(115 kpbs), one high-speed UART(3 Mbps), and multiple GPIO pins for general purpose I/O
Fully integrated RF Front-End including PAs and LNAs
Optional external LNA/PA

25 MHz or 40 MHz reference clock input
1.2 V switching regulator
Advanced power management with ddynamic clock switching for ultra-low power modes
409-pin BGA package

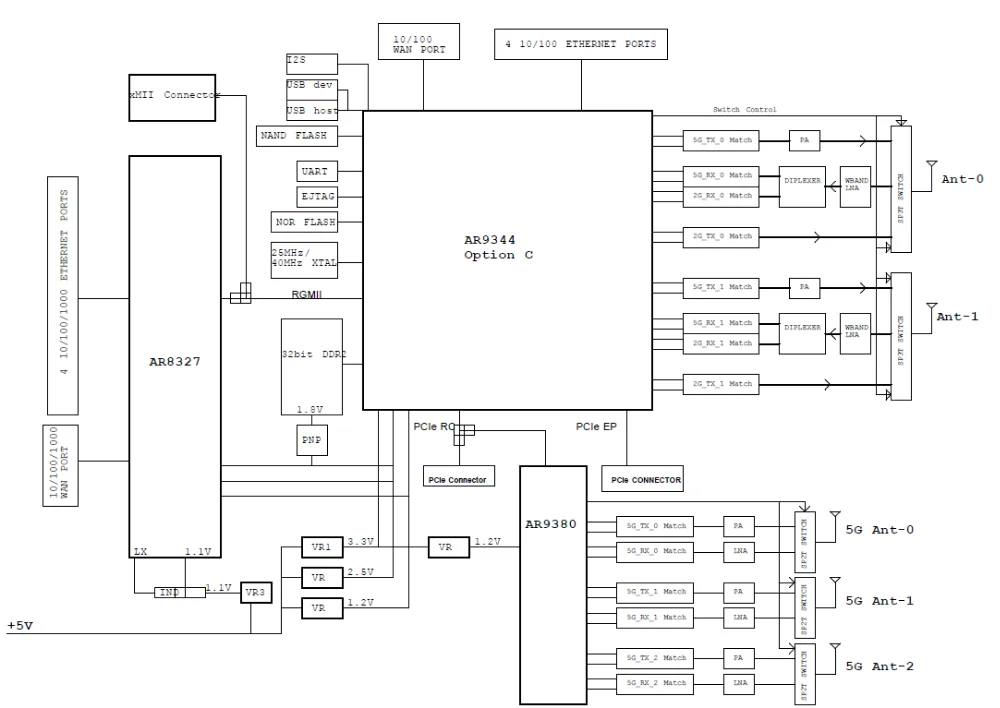

2. Functional Block Diagram

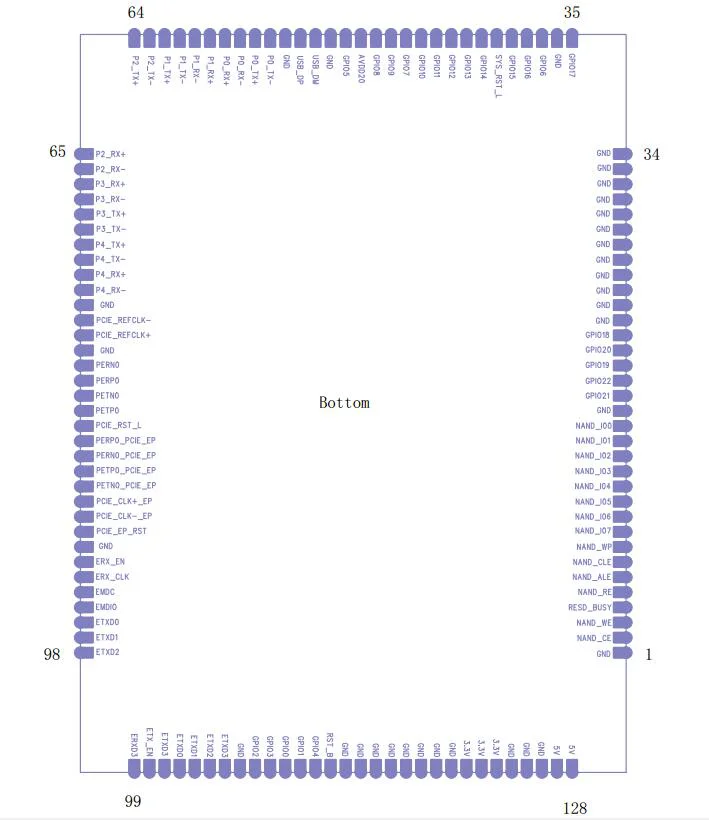

3. PINS

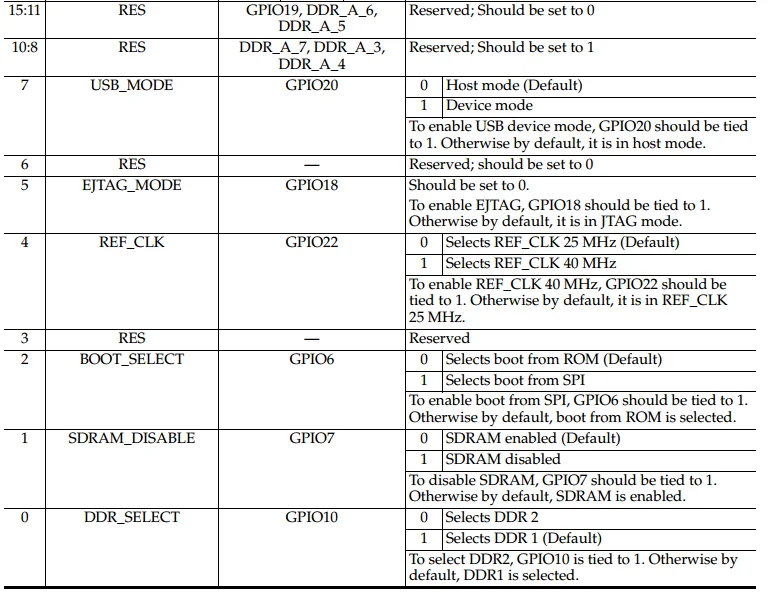

4.Bootstrap setting


Our Company
Our Service
We can flash customer firmware, ODM customer baseboard or redesign whole board, we can make sure device fit FCC,CE and so on. we can supply software design service
