868Mhz smart plug wifi LoRa TM modem wifi module

FOB Reference Price:Get Latest Price
$4.50 - $10.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
Lora.House V1.0
Place of Origin:
Guangdong, Guangdong, China (Mainland)
Brand Name:
Oolite, Oolite
LoRa TM Modem:
868Mhz
power:
168 dB maximum link budget.
High sensitivity:
down to -148 dBm.
Bullet-proof front end:
IIP3 = -12.5 dBm.
Certification:
FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation
Modue Size:
16.8*32.3mm
Programmable bit rate:
Up to 300bps
Type:
Wifi module
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
PE or as your need
Port
shenzhen
Lead Time :
Automatic Meter Reading 20-25workingdays

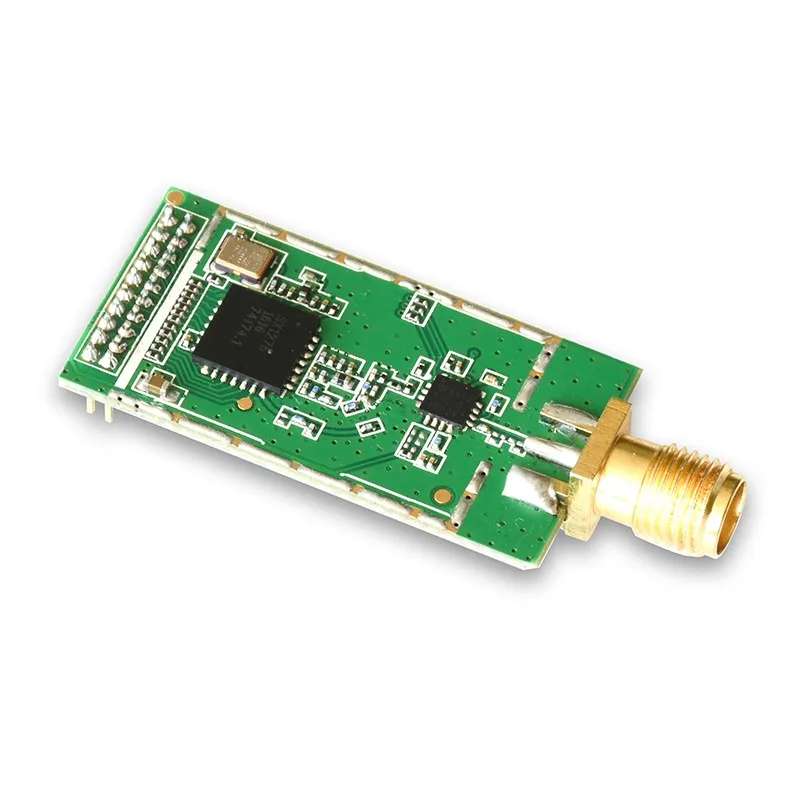

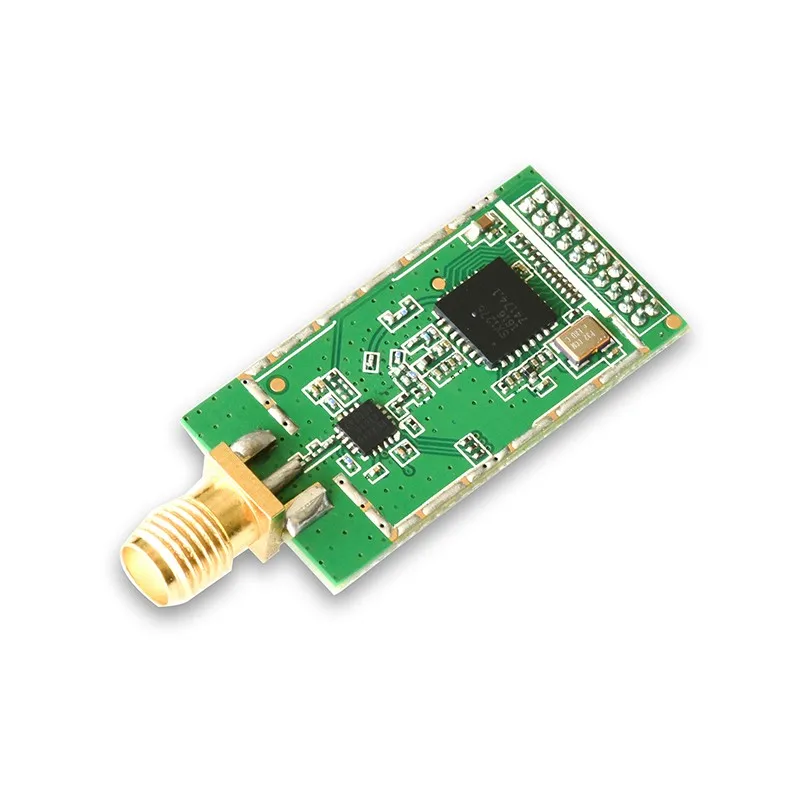

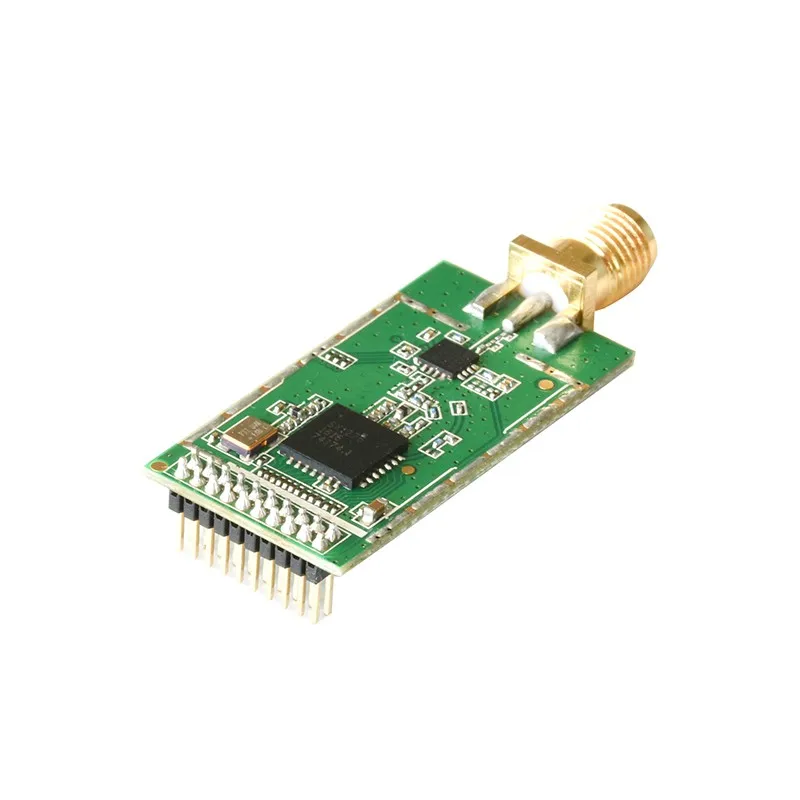

Detailed Images

Features:
  LoRa TM Modem (868Mhz).

 168 dB maximum link budget.
+27 dBm +- 1dbm constant RF output vs. V supply.
+20 dBm high efficiency PA - RFX1010.
Programmable bit rate up to 300 kbps.
 High sensitivity: down to -148 dBm.
 Bullet-proof front end: IIP3 = -12.5 dBm.
Excellent blocking immunity.
 Low RX current of 10.3 mA, 200 nA register retention.
 Fully integrated synthesizer with a resolution of 61 Hz.
FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
Built-in bit synchronizer for clock recovery.
 Preamble detection.
 127 dB Dynamic Range RSSI.
Automatic RF Sense and CAD with ultra-fast AFC.
 Packet engine up to 256 bytes with CRC.
 Built-in temperature sensor and low battery indicator.
 Modue Size:16.8*32.3mm
Product Description
smart plug wifi module

 The Lora.House V1.0 transceivers feature the LoRa TM long range modem that provides ultra-long range spread spectrum

communication and high interference immunity whilst minimising  current consumption. Using Hope RF‟s patented LoRa TM modulation technique RFM95/96/97/98  can achieve a sensitivity of over -148dBm using a low cost crystal and bill of

materials. The high  sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget

making it optimal for any application requiring range or robustness. LoRa TM also provides significant advantages in both

blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range,

interference immunity and energy consumption. These devices also support high performance (G)FSK modes for systems including WMBus,  IEEE802.15.4g. The Lora.House V1.0 deliver exceptional phase noise, selectivity, receiver linearity  and IIP3 for significantly lower current consumption than competing devices。

Packing & Delivery

Packing.
Automatic Meter Reading Lora Low Power Long Distance Wireless Lora Module plastic tray or blister
Delivery
Automatic Meter Reading Lora Low Power Long Distance Wireless Lora Module
1) By DHL or Fedex express;
2)By sea to the main coastal city in your country;
3)By airmail or EMS;
4)Any other viable methods for delivery accepted by both parties.

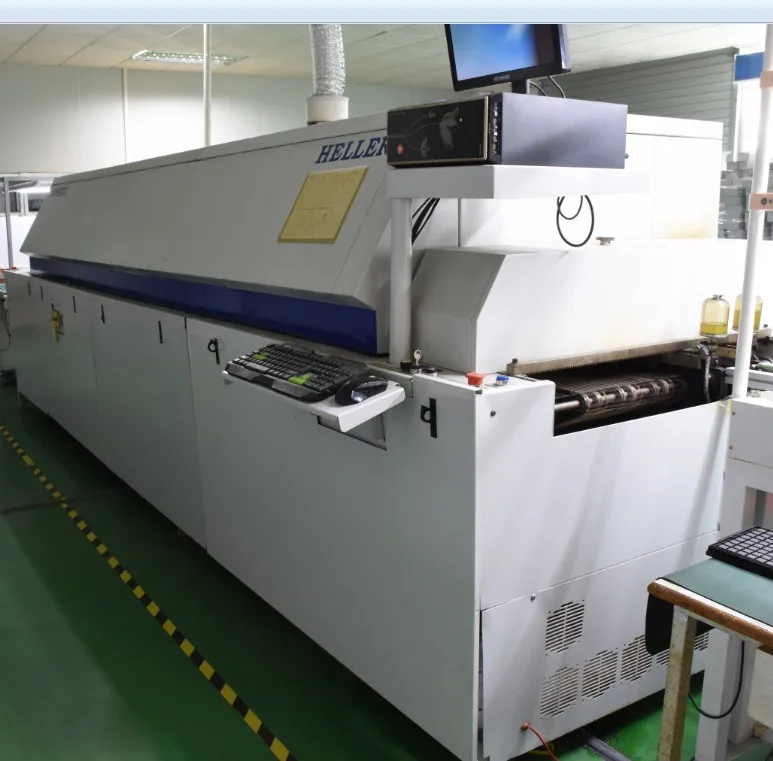

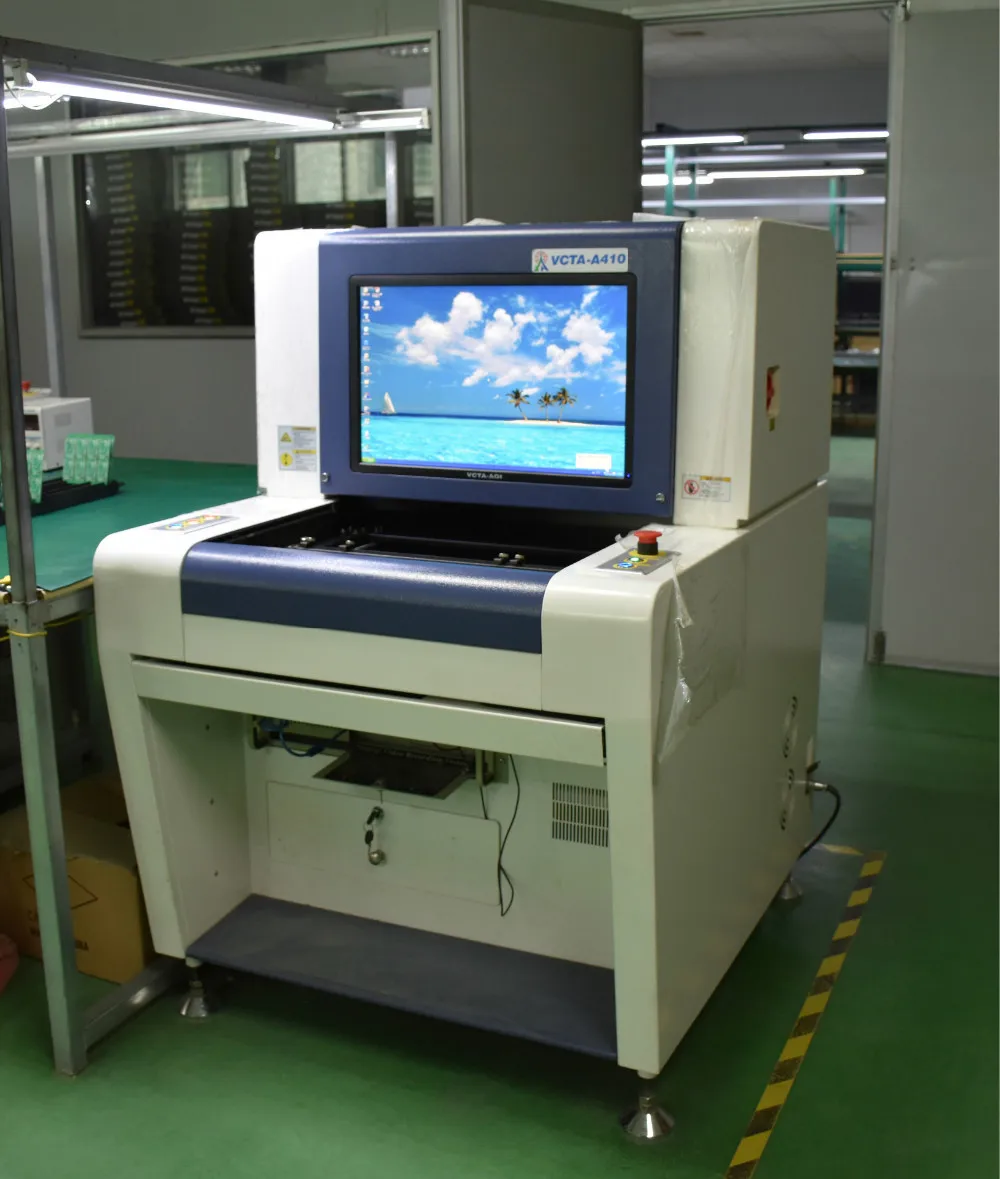

Our Company
FAQ

1.Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.
2.Do you accept PCBA orders only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
3.Do you provide firmware support?
Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
