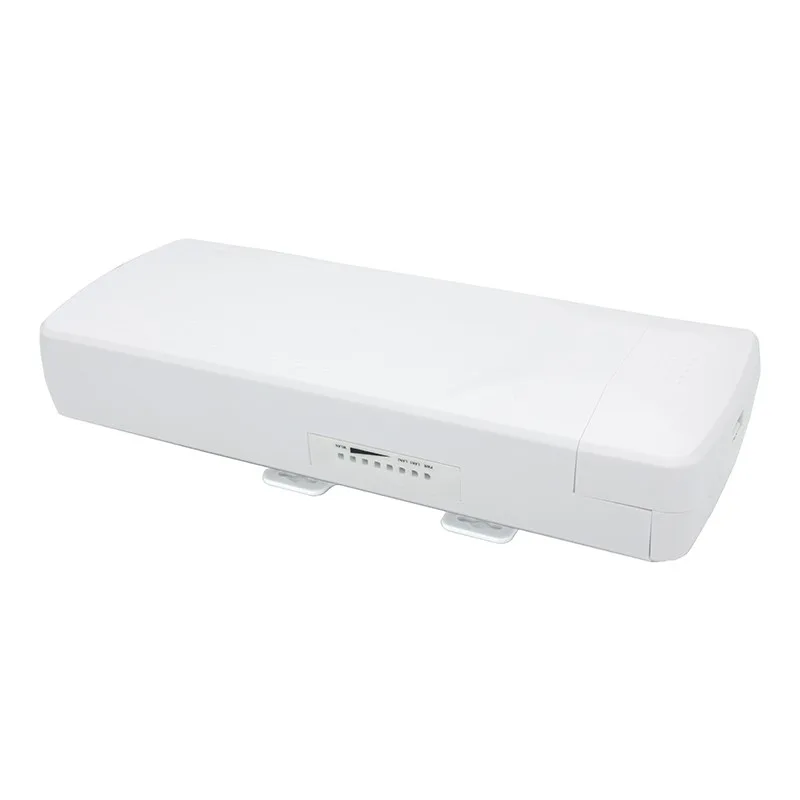

CPE5GD02 V1.0 is a highly integrated and feature-rich IEEE 802.11n 2x2 2.4GHz and 1x1 5GHz System-on-a-Chip (SoC) for wireless local area network (WLAN) AP and router model. It supports 802.11n operations up to 144 Mbps for 20 MHz and 300 Mbps for 40 MHz, and 802.11b/g data rates.

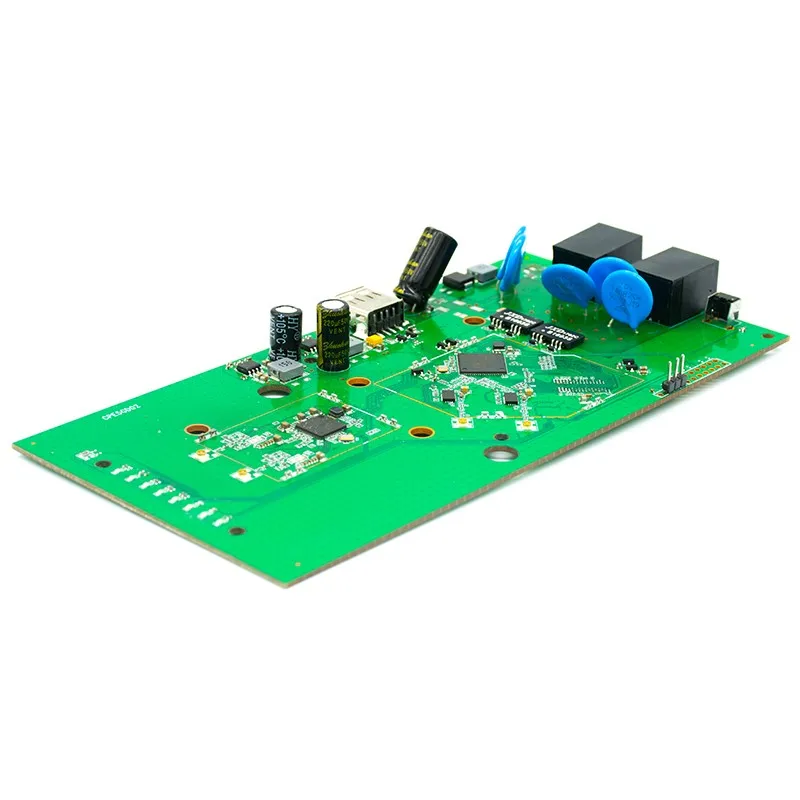

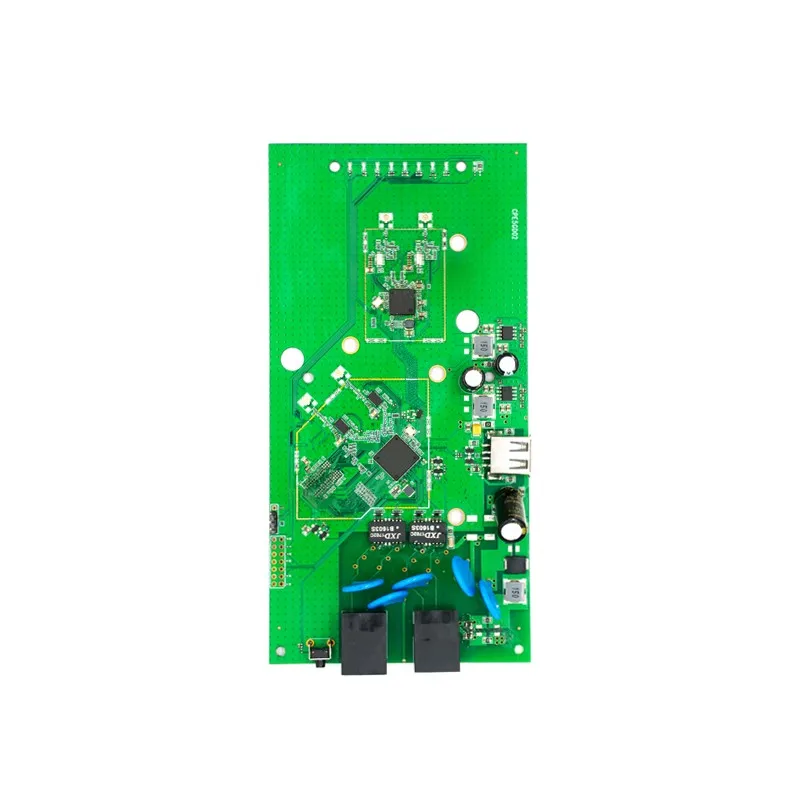

CPE5GD02 V1.0 includes a MIPS 24Kc processor, five port IEEE802.3 Fast Ethernet Switch with MAC/PHY, one USB 2.0 interface,4096 x8 bits,EEPROM
CPE5GD02 V1.0 use QCA9531, The Qualcomm Atheros QCA9531 is a highly integrated and feature-rich IEEE 802.11n 2x2 2.4 GHz System-on-a-Chip (SoC) for advanced WLAN platforms. It runs fast and function rich.
CPE5GD02 V1.0 can be used indoors, hotels, supermarkets and other indoor and outdoor location. It can make life more convenient and quickly. It is fully for human production and life.
The QCA9886 implements half-duplex OFDM, CCK, and DSSS PHY, supporting 867 Mbps for 802.11ac 80 MHz channel operation in 5 GHz mode and IEEE 802.11a/n/ac data rates. Additional features include 802.11ac explicit transmit beamforming (TxBF), 802.11 compatible implicit TxBF, multi-user MIMO(MU-MIMO), Dynamic Bandwidth Switching, Per Packet Switching between 2SS/80 MHz, MaximalLikelihood (ML) decoding, Low-Density Parity Check (LDPC), Maximal Ratio Combining (MRC), SpaceTime Block Code (STBC), and On-Chip One-Time Programmable (OTP) memory to eliminate the needfor an external flash and to further reduce the external component count and BOM cost. The QCA9886supports 802.11 wireless MAC protocol, 802.11i security, Wi-Fi offload, error recovery, and 802.11equality of service (QoS).
Packing & Delivery
1.Can I take a sample before bulk order? Yes, we can support you samples for function test first.
2. How long to make sample or mass production? Usually we have sample in stock, processing time will be around 3~5days
3. Do you accept OEM / OEM? GainStrong is engaged in providing professional ODM/OEM service of customized electronic productions. Our R&Dteam members have rich hardware and software experience on providing global customers with complete stable and cost-effective products.
4. Is there MOQ limit? Welcome to place sample order to check the quality before bulk orders. Any qty welcome,but as you know,different qty with different price. Large qty means low cost.
