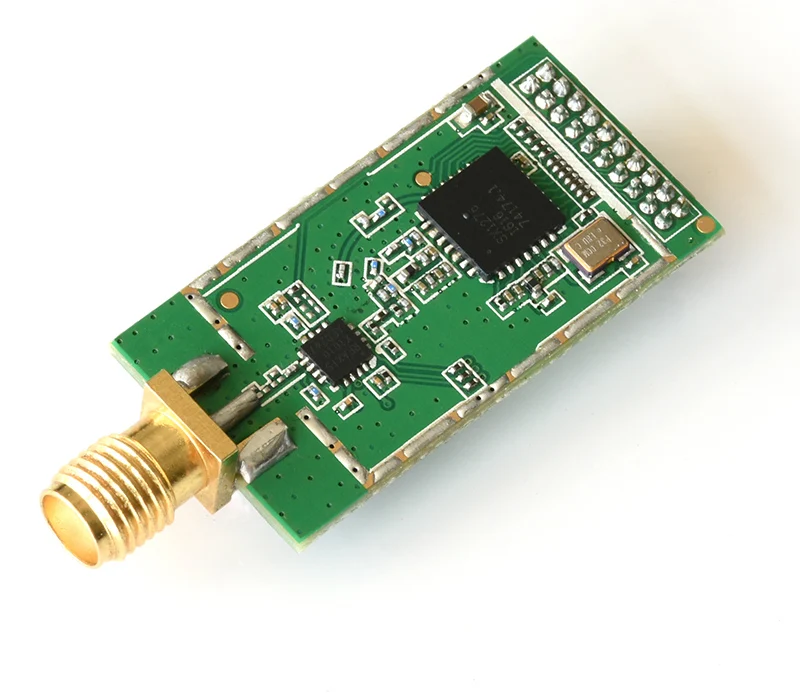

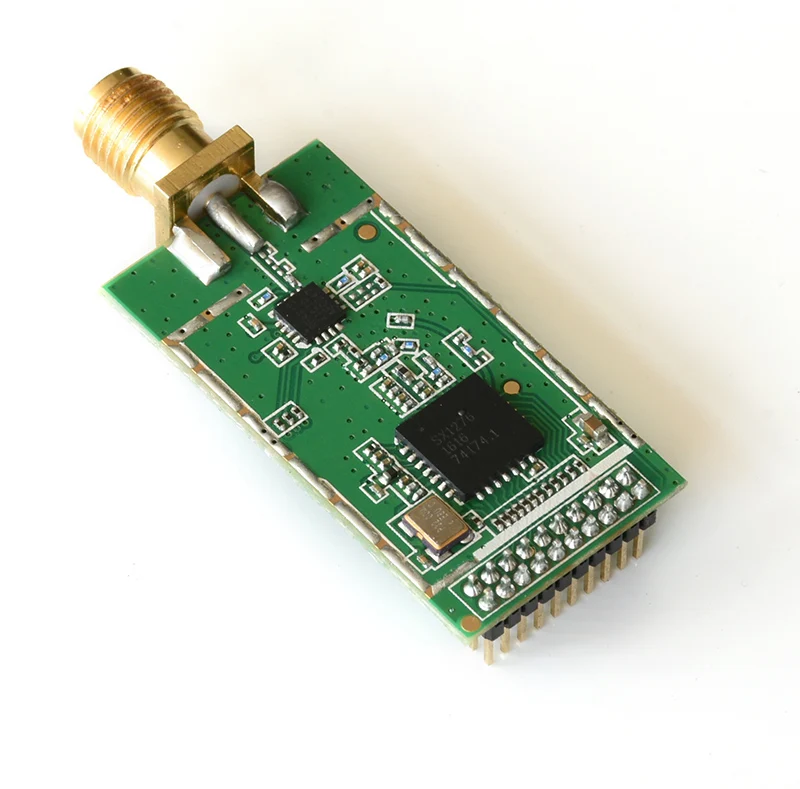

The Lora.House V1.0 transceivers feature the LoRa TM long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption. Using Hope RF‟s patented LoRa TM modulation technique RFM95/96/97/98 can achieve a sensitivity of over -148dBm using a low cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness. LoRa TM also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range,interference immunity and energy consumption.
These devices also support high performance (G)FSK modes for systems including WMBus, IEEE802.15.4g. The Lora.House V1.0 deliver exceptional phase noise, selectivity, receiver linearity and IIP3 for significantly lower current consumption than competing devices
LoRa TM Modem (868Mhz).
168 dB maximum link budget.
+27 dBm +- 1dbm constant RF output vs. V supply.
+20 dBm high efficiency PA - RFX1010.
Programmable bit rate up to 300 kbps.
High sensitivity: down to -148 dBm.
Bullet-proof front end: IIP3 = -12.5 dBm.
Excellent blocking immunity.
Low RX current of 10.3 mA, 200 nA register retention.
Fully integrated synthesizer with a resolution of 61 Hz.
FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
Built-in bit synchronizer for clock recovery.
127 dB Dynamic Range RSSI.
Automatic RF Sense and CAD with ultra-fast AFC.
Packet engine up to 256 bytes with CRC.
Built-in temperature sensor and low battery indicator.
Automated Meter Reading.
Home and Building Automation.
Wireless Alarm and Security Systems.
Industrial Monitoring and Control
Long range Irrigation Systems
1.OEM and ODM are warm welcomed;
2.Reply your inquiry in 24 working hours;
3.Delivery the goods to our partners with high speed and great precision;
4.Offer customers the most competitive price with good quality wireless networking equipment.
1. Can I take a sample before bulk order? Yes, we can support you samples for function test first.
2. How long to make sample or mass production? Usually we have sample in stock, processing time will be around 3~5days
3. Do you accept OEM / OEM? GainStrong is engaged in providing professional ODM/OEM service of customized electronic productions. Our R&D team members have rich hardware and software experience on providing global customers with complete stable and cost-effective products.
4. Is there MOQ limit? Welcome to place sample order to check the quality before bulk orders. Any qty welcome,but as you know,different qty with different price. Large qty means low cost.
