Developable sensor gateway sensor node switch and smart home of lora

FOB Reference Price:Get Latest Price
$15.00 - $25.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
Minibox-LoRa V1.0
Chipset:
MT7688AN+SX1276
Frequency:
433MHz/470 MHz/868MHz,/915 MHz,can be setting
DDR:
64MB/128MB/256MB(optional)
Flash:
16MB/32MB/64MB
Antenna:
1*WiFi external antenna,80211 b/g/n 150Mbps
Port:
1*10Mbps/100Mbps Ethnet Port
LED:
1*System
Button:
1*Reset
Color:
White
Size:
64.1mm*44.7mm*22.0mm
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Oolite
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
white neutral paper box
Port
shenzhen
Lead Time :
3 weeks
Product Description

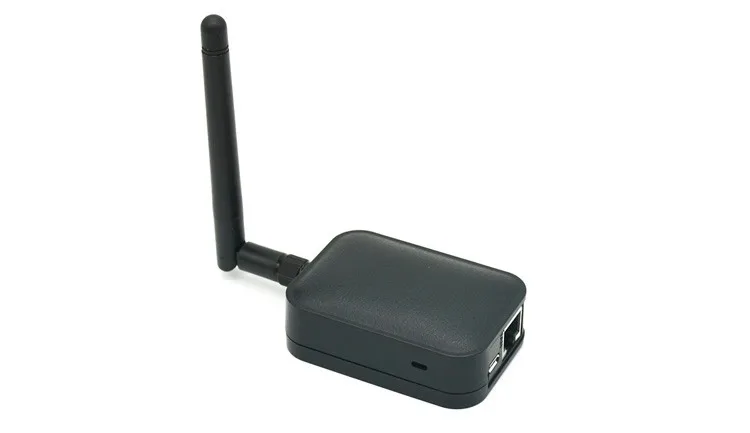

Lora.AI LoRaWan Intelligent Control IOT Device MT7688AN SX1276 Chipset

INTRODUCTION

Minibox-LoRa is a smart LoRa sulution for IOT. MT7688AN + SX1276 (433MHz 470 MHZ or 868MHZ or 915Mbps.Can update local data to Internet(Server).

MT7688 family integrates a 1T1R 802.11n Wi-Fi radio, a 580MHz MIPS® 24KEc™ CPU, 1-port fast Ethernet PHY,USB2.0 host, PCIe, SD-XC, I2S/PCM and multiple slow IOs.

MT7688 provides two operation modes – IoTgateway mode and IoT device mode. In IoT gateway mode, the PCI Express interface can connect to 802.11ac.chipset for 11ac dual-band concurrent gateway. The high performance USB 2.0 allows MT7688 to add 3G/LTE modem support or add a H.264 ISP for wireless IP camera. For the IoT device mode, MT7688 supports eMMC,SD-XC and USB 2.0. MT7688 can support the WiFi high quality audio via 192Kbps/24bits I2S interface and VoIPapplication through PCM. In IoT device mode, it further supports PWM, SPI slave, 3rd UART and more GPIOs.For IoT gateway, it can connect to touch panel and BLE, Zigbee/Z-Wave and sub-1G RF for smart home control.

The SX1276/77/78/79 transceivers feature the LoRaTM long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.

These devices also support high performance (G)FSK modes for systems including WMBus, IEEE802.15.4g. The SX1276/77/78/79 deliver exceptional phase noise, selectivity, receiver linearity and IIP3 for significantly lower current consumption than competing devices.

Automated Meter Reading.  Home and Building Automation.  Wireless Alarm and Security Systems.  Industrial Monitoring and Control  Long range Irrigation Systems

FEATURES

# MT7688AN+SX1276 (433MHz/470 MHz/868MHz,/915 MHz,can be setting);
# DDR: 64MB/128MB/256MB(optional);
# Spi Nor Flash:16MB/32MB/64MB;
# 1*WiFi external antenna,80211 b/g/n 150Mbps;
# 1*10Mbps/100Mbps Ethnet Port;
# 1*System LED;
# 1*Reset Button;
# Used for Smart Home,IOT,Industry 4.0,etc;
# 5V/1A DC power supply.

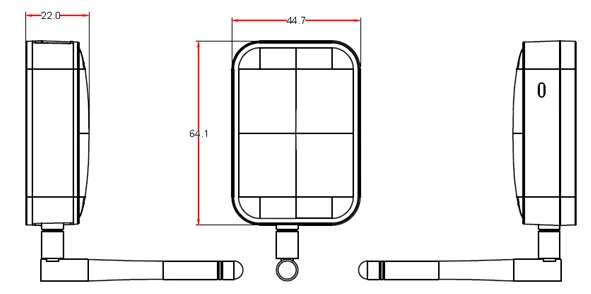

STRUCTURE
Length
Width
Height
Size
64.1mm
44.7mm
22.0mm
Our Company

Shenzhen Gainstrong Technology Ltd. is a professional manufacturer for Network communication products ,including wifi Routers,wifi modules, Industial wifi equipment,smart home devices...and so on .The company was established on 2009 ,Our factory located in Shajing town ,Bao An District ,Shenzhen, China ,We are focus on ODM and OEM service to the customer all over the world with professional R&D team . Factory equipped with sophisticated manufacturing machines ,include 1 High-speed SMT production lines and 2 product-assembly lines, about 40 staff, Production capacity for wifi modules can be 2000pcs per day.

With professional mind, we are trying to offer the customer the most competive price ,quick lead time for delivery, strict quality inspection and intimate customer servervice. To satisfy customer perfectly,we are managing the safety ability and the design which combines the sensibility and technique , as well as the advanced equipment.


FAQ

1. Can I order a sample ? how fast can l get it ?
Yes, usually we have sample in stock, even without, processing time will be around 3~4days


2.. How fast can l get my order after paid?
Our processing time from 1-4 business days, according to size and quantity, and shipping way
Usually, for sample order we ship out in 3-5 days , delivery time is around 20~25 days


3.Do you support Logo ordering? what is the mini order quantity?
Yes, we provide logo ordering for customers who purchase at least 1000 dollars.
If the assume doesn’t reach 1000 dollars, we need to ask about 1000 RMB for design cost.
