high speed ar8327 3g4g mini pcie usb wifi router module with audio recording openwrt router iot module

FOB Reference Price:Get Latest Price
$17.00 - $23.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
Oolite V9
Brand Name:
Oolite
Place of Origin:
Guangdong, China
Chipset:
AR8327
DDR3:
64M
FLASH:
16M SPI Nor Flash with 2G nand Flash support
Cache:
64KB I-Cache and 32KB D-cache
Interface:
Audio interface(I2S,SPDIF-out)
USB:
2*USB 2.0
PCIe:
1* PCIe,
wired speed:
2Gbps
Power supply voltage:
3.3V
Dimensions:
46*62 MM
Supply Ability
Supply Ability:
3000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
plastic bag or other
Port
shenzhen
Lead Time :
3 weeks
Product Description

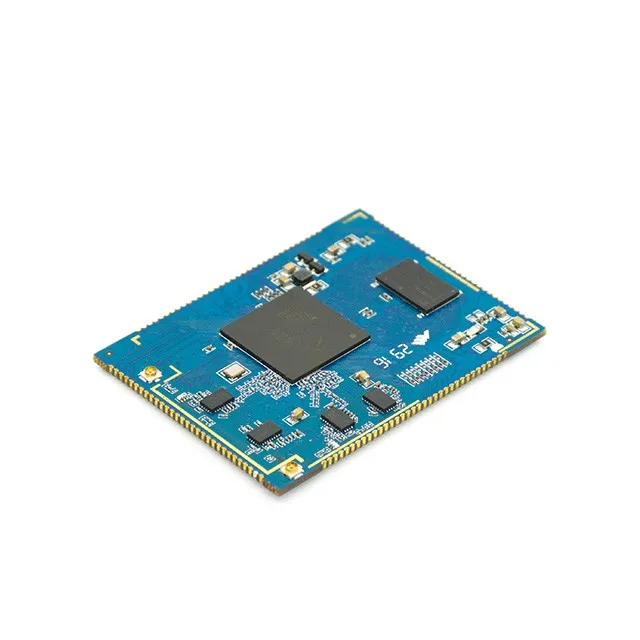

Oolite v9

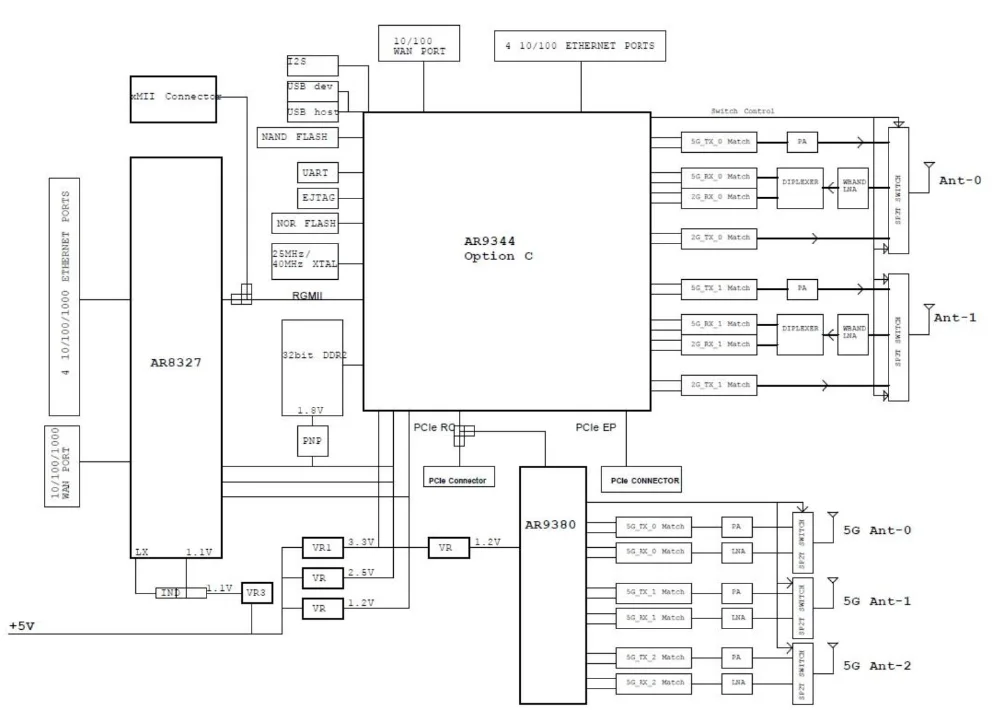

The Oolite V9 is a highly integrated and feature-rich IEEE 802.11n 2x2 2.4/5 GHz system-on-
a-Chip for advanced WLAN platforms. Which supposes 802.11n operations up to 144 Mbps for 20MHz and 300 Mbps for 40 MHz respectively, and 802.11a/b/g data rates.
It includes a MIPS 74Kc processor, PCI Express 1.1 Root Complex and Endpoint interfaces,
five port IEEE 802.3 fast Ethernet Switch with MAC/PHY, one MII /RMII/RGMII interface, one USB2.0 MAC/PHY, and external memory interfaces for serial flash, SDRAM, DDR1or DDR2, I2S/SPDIF-
Out audio interface, SLIC VOIP/PCM interface, two UARTs and GPIOs that can be used for LED
controls or other general purpose interface configurations.


AR8327


The AR8327 supports many operating modes that can be configured using a low-cost
EEPROM and /or the MDC?MDIO interface. The AR8327 also supports a CPU header mode that
appends two bytes to each frame.
The AR8327 contains a 2 K-entry address lookup table that employs three per bucket to
avoid hash collision and maintain non-blocking forwarding performance. The table provides
read/write accesses from the serial and CPU interfaces; each entry can be configured as a static
entry. The AR8327 supports 4K VLAN entries configurable as port-bases VLANs or 802.1Q tag-based
VLANs.
CPU can be detected frame with header to configure the switch register, the address
lookup table, and VLAN and receive auto-cast MIB frames. The sixth port(port5) supports a PHY
interface as a WAN port. The first port (port0) supports a MAC interface and can be configured in
MII_PHY or RMII_PHY mode to connect to an external management CPU or an integrated CPU in a
routing or xDSL engine.


Features

74Kc MIPS processor with 64KB I-Cache and 32KB D-Cache, operating at up 533 MHz
32KB D-Cache, operating at up to 533 MHzExternal 16- or 32- bit DDR1,DDR2 operating at up to 200 MHz(400 M transfers/sec), or 16-bit SDRAM memory interface operating at up to 200 MHz
NAND and SPI NOR Flash memory support10/100 Ethernet Switch with five IEEE 802.3 Ethernet LAN ports
MII/RMII/RGMII interface


802.3az Energy Efficient Ethernet compliant


Hardware-based NAT&ACL accelerators for Ethernet interface

Both PCI Express 1.1 Root Complex and Endpoint interface supported simultaneously

One USB 2.0 controller with built-in MAC/PHY supports Host or Device mode

Boot from external CPU via PCIE, USB, xMII, eliminating need for external flash

I2S/SPDIF-out audio interface

SLIC for VOIP/PCM

One low-speed UART(115 kpbs), one high-speed UART(3 Mbps), and multiple GPIO pins for

general purpose I/O

Fully integrated RF Front-End including PAs and LNAs

Optional external LNA/PA

25 MHz or 40 MHz reference clock input

1.2 V switching regulator

Advanced power management with ddynamic clock switching for ultra-low power modes

409-pin BGA package


Detailed Images
Our Company

Shenzhen Gainstrong Technology Ltd. is a professional manufacturer for Network communication products ,including wifi Routers,wifi modules, Industial wifi equipment,smart home devices...and so on .The company was established on 2009 ,Our factory located in Shajing town ,Bao An District ,Shenzhen, China ,We are focus on ODM and OEM service to the customer all over the world with professional R&D team . Factory equipped with sophisticated manufacturing machines ,include 1 High-speed SMT production lines and 2 product-assembly lines, about 40 staff, Production capacity for wifi modules can be 2000pcs per day.

With professional mind, we are trying to offer the customer the most competive price ,quick lead time for delivery, strict quality inspection and intimate customer servervice. To satisfy customer perfectly,we are managing the safety ability and the design which combines the sensibility and technique , as well as the advanced equipment.






FAQ

1. Can I order a sample ? how fast can l get it ?
Yes, usually we have sample in stock, even without, processing time will be around 3~4days

2.. How fast can l get my order after paid?
Our processing time from 1-4 business days, according to size and quantity, and shipping way
Usually, for sample order we ship out in 3-5days , delivery time is around 20~25days

3.Do you support Logo ordering? what is the mini order quantity?
Yes, we provide logo ordering for customers who purchase at least 1000 dollars.
If the assume doesn’t reach 1000 dollars, we need to ask about 1000RMB for design cost.

GainStrong is engaged in providing professional ODM/OEM service of customized electronic productions. Our R&Dteam members have rich hardware and software experience on providing global customers with complete stable andcost-effective products.
