New Product 5 Ghz Lte Outdoor Wireless Outdoor CPE

FOB Reference Price:Get Latest Price
$39.00 - $50.00 / Pieces | 500 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
CPE5GD02
Place of Origin:
Guangdong, China (Mainland), Guangdong, China (Mainland)
Interface:
USB 2.0
Frequency:
5G
ROM:
SPI Flash 8M
RAM:
DDR2 64M
Data Rates:
1167Mbps(300Mbps+867Mbps)
Color:
White
Product name:
CPE5GD02 V1.0
Button:
1Reset Button
PCB size:
180*90*1.6 mm
Brand Name:
Oolite
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
white paper box
Port
shenzhen
Lead Time :
5-7days
Product Description

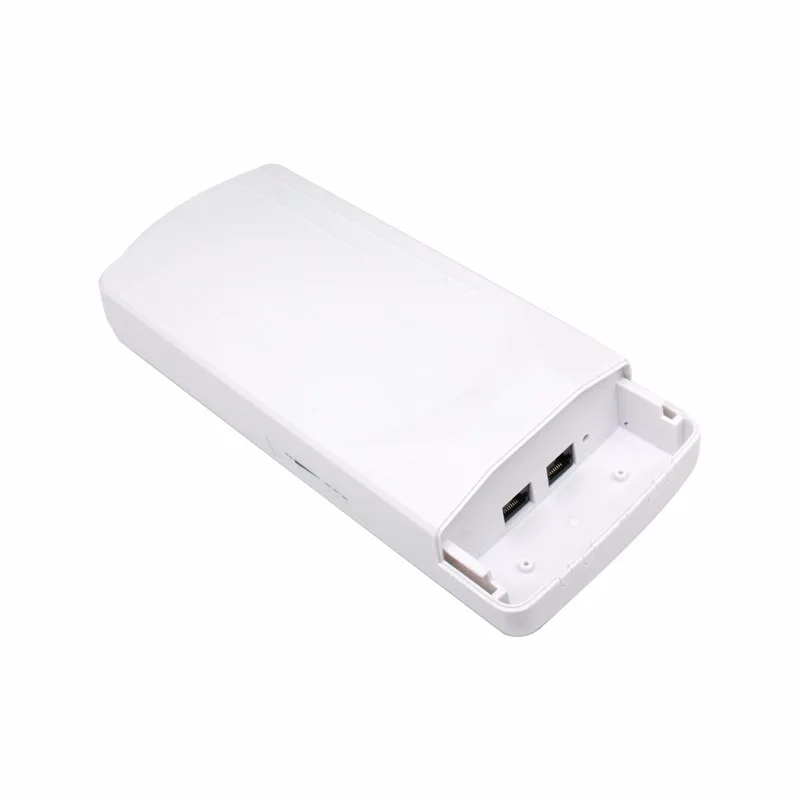

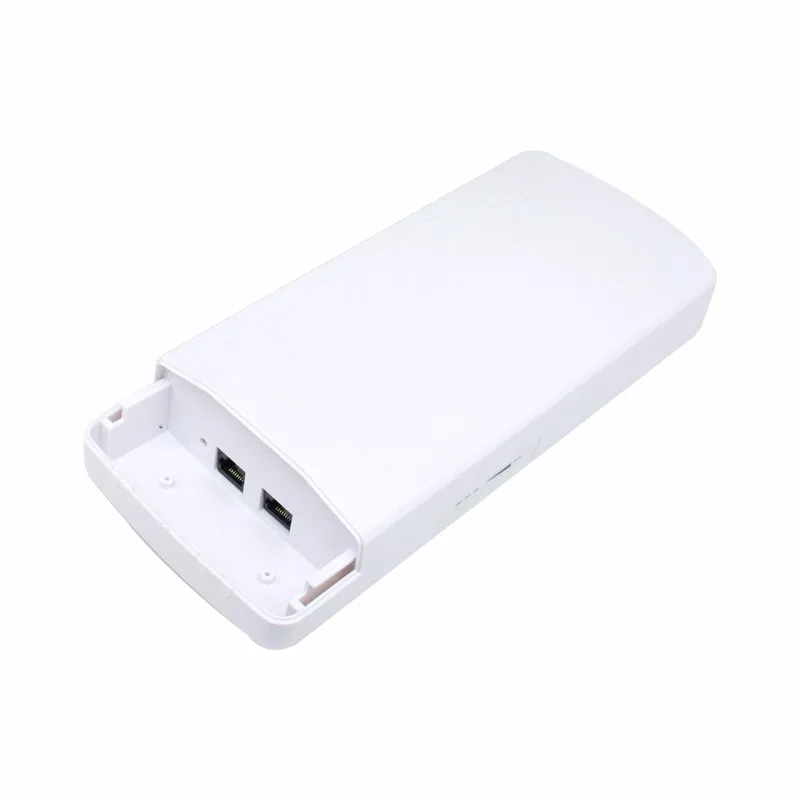

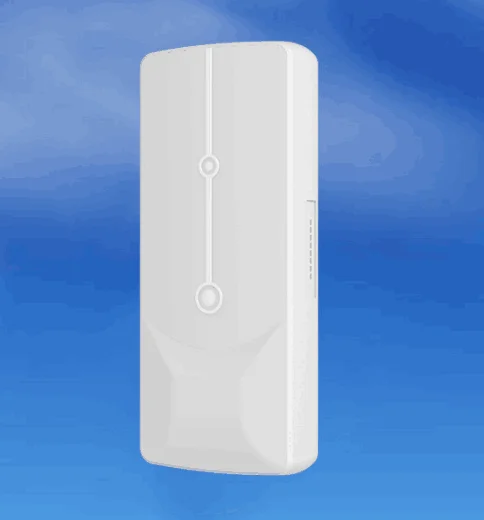

New Product 5 Ghz Lte Outdoor Wireless Outdoor CPE


CPE5GD02 V1.0 is a highly integrated and feature-rich IEEE 802.11n 2x2 2.4GHz and 1x1 5GHz System-on-a-Chip (SoC) for wireless local area network (WLAN) AP and router model. It supports 802.11n operations up to 144 Mbps for 20 MHz and 300 Mbps for 40 MHz, and 802.11b/g data rates.


CPE5GD02 V1.0 includes a MIPS 24Kc processor, five port IEEE802.3 Fast Ethernet Switch with MAC/PHY, one USB 2.0 interface,4096 x8 bits,EEPROM


 CPE5GD02 V1.0 use QCA9531, The Qualcomm Atheros QCA9531 is a highly integrated and feature-rich IEEE 802.11n 2x2 2.4 GHz System-on-a-Chip (SoC) for advanced WLAN platforms. It runs fast and function rich.

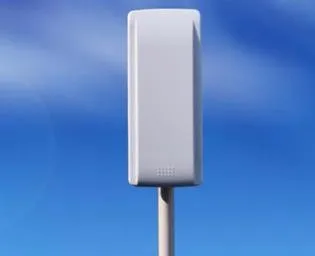

CPE5GD02 V1.0 can be used indoors, hotels, supermarkets and other indoor and outdoor location. It can make life more convenient and quickly. It is fully for human production and life.

1. Overview:

The QCA9886 implements half-duplex OFDM, CCK, and DSSS PHY, supporting 867 Mbps for 802.11ac 80 MHz channel operation in 5 GHz mode and IEEE 802.11a/n/ac data rates. Additional features include 802.11ac explicit transmit beamforming (TxBF), 802.11 compatible implicit TxBF, multi-user MIMO(MU-MIMO), Dynamic Bandwidth Switching, Per Packet Switching between 2SS/80 MHz, MaximalLikelihood (ML) decoding, Low-Density Parity Check (LDPC), Maximal Ratio Combining (MRC), SpaceTime Block Code (STBC), and On-Chip One-Time Programmable (OTP) memory to eliminate the needfor an external flash and to further reduce the external component count and BOM cost. The QCA9886supports 802.11 wireless MAC protocol, 802.11i security, Wi-Fi offload, error recovery, and 802.11equality of service (QoS).

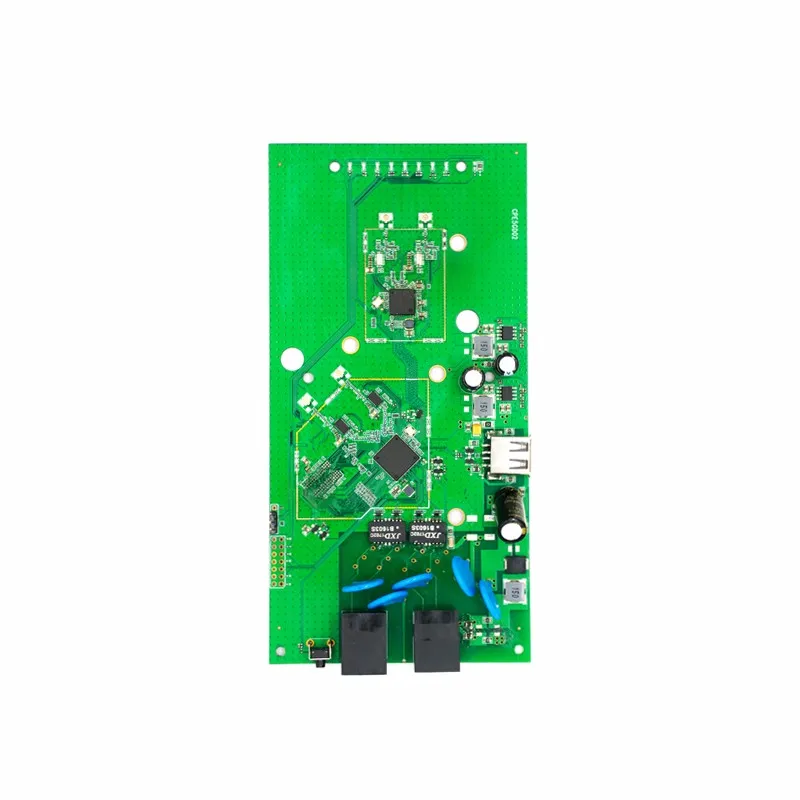

2.  PCB SIZE

3.CHARACTERISTICS

■QCA9531 2*2 MIMO 2.4GHz WiFi 802.11 b/g/n
■QCA9886 2*2 MIMO 5GHz WiFi 802.11 an/ac;
■Sigle side compoments and stamp hole pins;
■1*PCI Express 1.1 interface(Used by QCA9886);
■1*LAN(POE) and 1*WAN(POE) port;
■RAM:DDR2 64MBytes/128MBytes Option;
■ROM:SPI Flash 8Mbyte/16Mbyte Option;
■1*USB 2.0 interface Host Mode;
■1* Reset Button
■1*Power LED,1* WiFi LED,1*WAN LED,1*LAN LED
■Data Rates:1167Mbps(300Mbps+867Mbps);

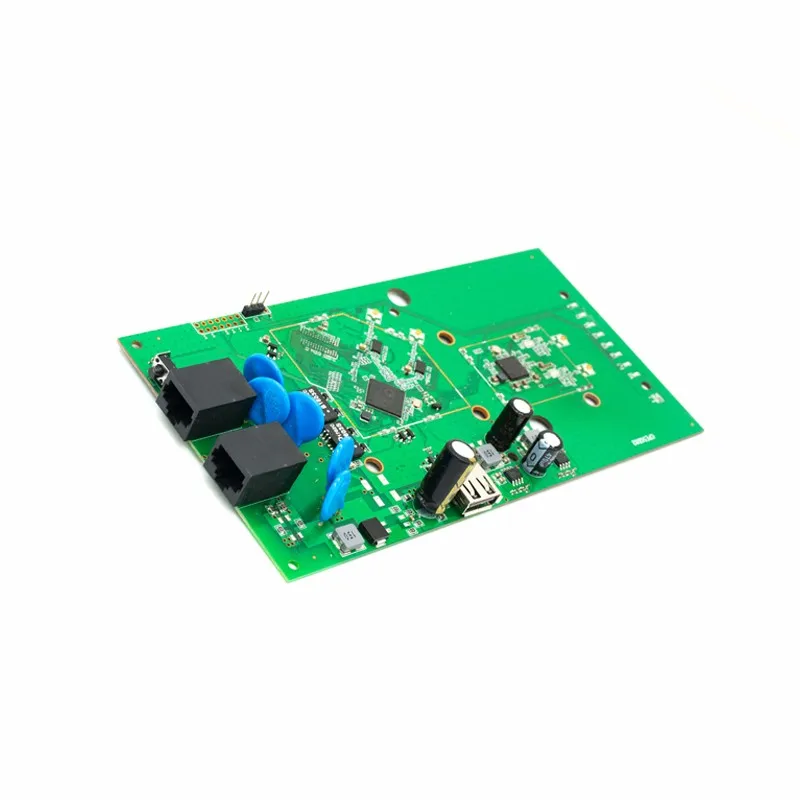

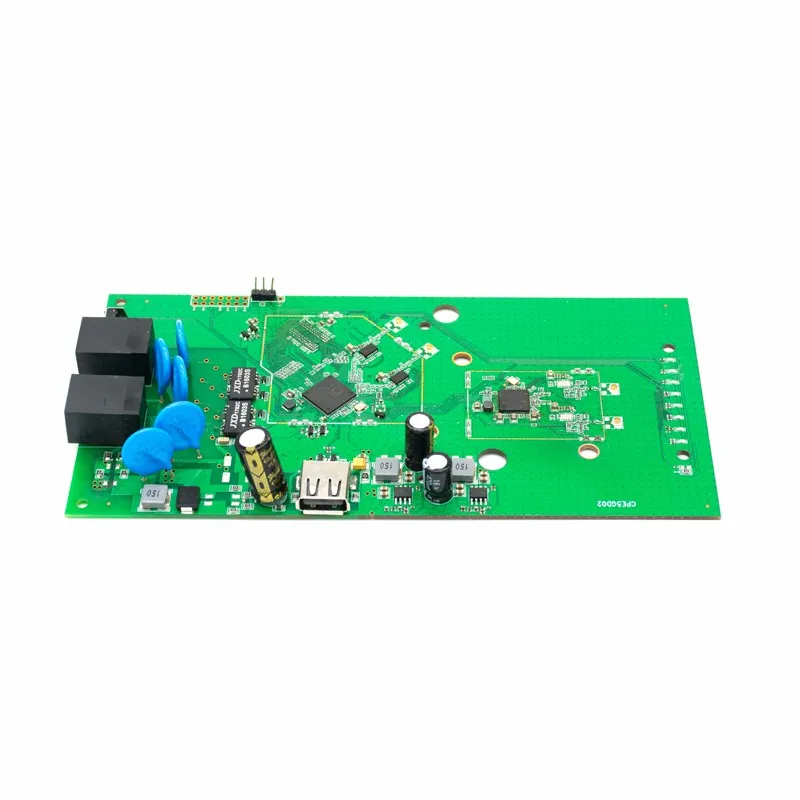

■PCB size:180mm*90mm*1.6mm
Our Company

Shenzhen Gainstrong Technology Ltd.was established on 2009 ,Our factory located in Shajing town ,Bao An District ,Shenzhen, China , professional manufacturer of various wifi module wifi router specialize in Qualcomm Atheros AR9XXX, QCA9XXX, IPQ, QCA40XX and MT76XX ,Allwinner, Intel x86 with wifi, lora, NB-iot, 3G/4G communication devices ODM/OEM.Usually for Industry application.

Packing & Delivery

Packing.
Low Power Wireless Lora Transmitter Receiver Module Wireless Control System plastic tray or blister
Delivery
Low Power Wireless Lora Transmitter Receiver Module Wireless Control System
1) By DHL or Fedex express;
2)By sea to the main coastal city in your country;
3)By airmail or EMS;
4)Any other viable methods for delivery accepted by both parties.

FAQ

1.Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.
2.Do you accept PCBA orders only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
3.Do you provide firmware support?
Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
skype :bella(a)ioes.cn email:bella(a)ioes.cn
