General DescriptionThe Oolite V5R is a complete,small 802.11a/b/g/n Wi-Fi Solution optimized for low-cost, and highly integrated AP and consumer electronic devices,the module integrates all Wi-Fi functionality in a package friendly to low-cost PCB design, requiring only a 3.3V power supply . The module based on the QCA9531 which integrates an 802.11n 2x2. MIMO MAC/BB/ radio with external PA and LNA. It supports 802.11 n operations up to 144 Mbps for 20 MHz and 300 Mbps for 40 MHz, compatible 802.11b/g/n. The module support AP mode, client mode at the same time , and include mass service application software to reduce the research and design work of customer. Applications Stage ● Smart home network equipment ● Wireless WIFI device, unmanned aerial vehicle ● Dual band Router, Industry Controller and so on Features: ◆ CPU: QCA9531 with 550 MHz MIPS 24Kc ◆ RAM: 256MB DDR1 RAM (128MB optional) ◆ Flash: 16MB SPI NOR Flash(8/16/32/64M option) ◆ Wireless speed: 144 Mbps for 20 MHz and 300 Mbps for 40 MHz ◆ USB: USB 2.0 master interface ◆ Power supply voltage: 3.3V ◆ Port: 1WAN+ 4 LAN ◆ GPIO:17 ◆ PCIE:1× PCIE ◆ Antenna:2×external antenna. ◆ 25 MHz reference clock input ◆ 1.2 V switching regulator ◆ Advanced power management with dynamic clock switching for ultra-low power modes

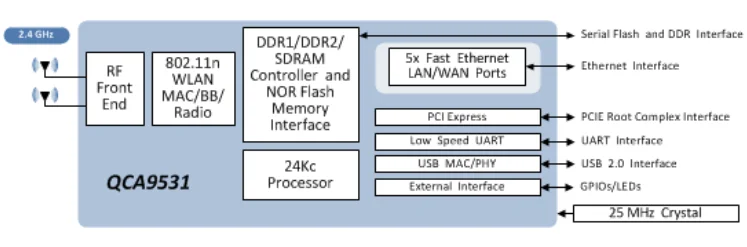

The general Hardware architecture is shown below Figure:
The OoliteV5R has 67 pins , including x1 PCIE channel*1, USB2.0*1, JTAG*1,UART*1, 1WAN AND 4 LAN Ethernet ports, and many GPIOs.
