high quality 300Mbps best use 2.4G/5G wireless router

FOB Reference Price:Get Latest Price
$18.00 - $30.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
Mini Box V3.2
Brand Name:
Oolite
Place of Origin:
Guangdong, China
chipset:
QCA9531 & QCA988
RAM:
128Mbyte
Frequency:
5.180GHz-5.850GHz; 2.412-2.472GHz
ROM:
16MB
Wireless Speed:
300Mbps
Power:
5V micro USB
size:
64mm x 44.7mm x22.5mm(L x W x H)
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
plastic tray or blister
Port
shenzhen
Lead Time :
20-25working days
Product Description

high quality 300Mbps best use 2.4G/5G wireless router

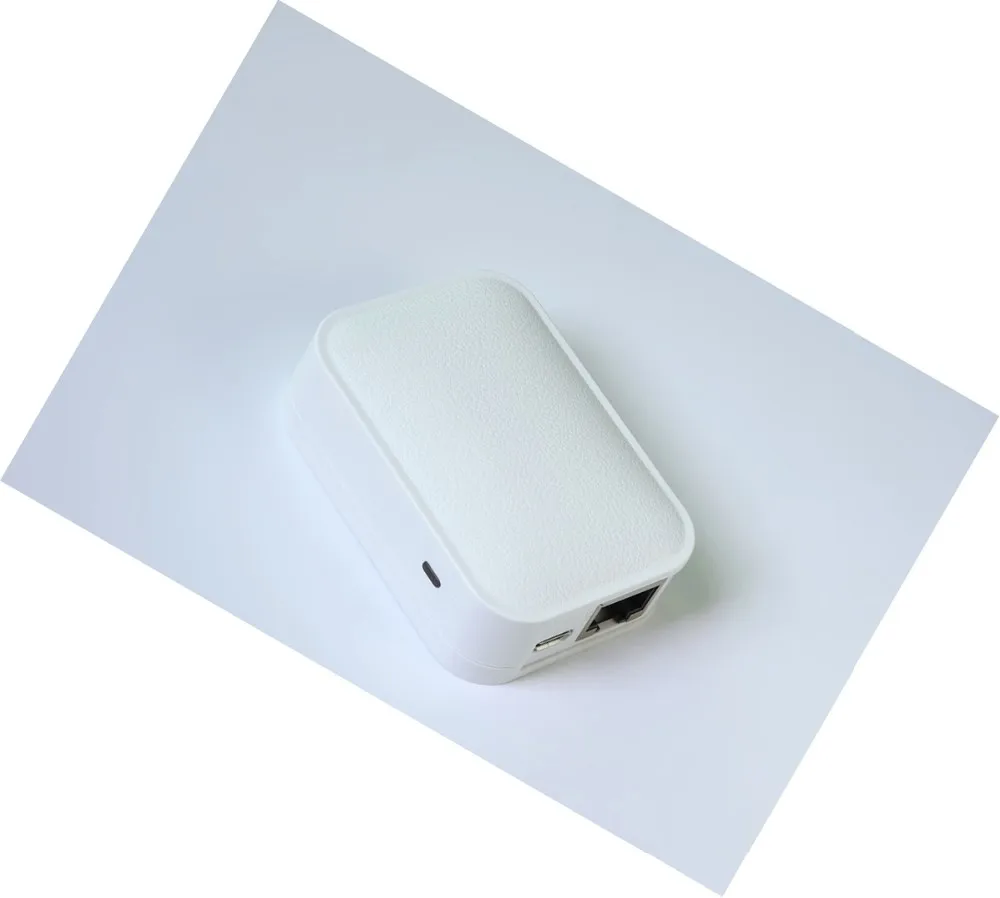

 The product is exquisite portable and small wireless router that supports 5G WIFI and 2.4G WIFI. It compatible 802.11 a/b/g/n/ac maximum wireless rate can reach to 300Mbps.It is made up of base board and module.The base board use the QCA9531 chip that is a highly integrated and feature-rich IEEE802.11n 2x2 2.4 GHz System-on-a-Chip (SoC) for advanced WLAN platforms. The module use the QCA9887 chip which integrates a multi-protocol MAC, PHY, analog-to-digital/ digital-to-analog converters (ADC/DAC),1x1 radio transceivers, and PCI Express interface in an all-CMOS device for lowpower consumption and small form-factor applications.
MiniBox V3.2 has 2 FE RJ45 ports which support both wired connection and wireless connection at the same time.it allows users not only able to share their internet by wired connection but also wireless connection.Its power

consumption is very low.

Applications Stage

1.Smart home network equipment
2.Wireless WIFI device
3.Industrial field

1. Features

>> CPU: QCA9531 with 550 MHz MIPS 24Kc and QCA9887
>> Supports 20/40/80 MHz at 5 GHz
>> RAM: 128MB DDR2 RAM (64MB optional)
>> Flash: 16MB SPI NOR Flash(8/16/32/64M option)
>> EEPROM:32Kbit
>> USB: 1×Micro USB (support 1×USB2.0)
>> Power supply voltage: 5V
>> Port: 1WAN+ 1 LAN
>> Antenna: 3×external antenna.
>> PCIE:1× PCIE
>> 1×RESET Button
>> 1×UART console

2. MECHANICAL

3. ELECTRICAL SPECIFICATIONS


RF hardware performance

4. ENVIRONAMENT


Certifications
Packing & Delivery

Packing
16/128MB high power openwrt wifi router
plastic tray or blister
Delivery
16/128MB high power openwrt wifi router
1) By DHL or Fedex express;
2)By sea to the main coastal city in your country;
3)By airmail or EMS;
4)Any other viable methods for delivery accepted by both parties.

FAQ

1.Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.
2.Do you accept PCBA orders only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
3.Do you provide firmware support?
Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
