Wifi module Qualcomm chipset solution ODM&OEM

FOB Reference Price:Get Latest Price
$8.00 - $20.00 / Pieces | 500 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
Oolite V8.0
Brand Name:
Oolite
Place of Origin:
Guangdong, China
chipset:
MT7621A
CPU frequency:
880MHz
Gigabit Switch:
5 ports
RAM:
256/512 Mbytes
Voltage:
3.3V
Size:
50mm(Length)*50mm(Width)(Tolerance:±0.2mm)
HW Crypto:
Deliver 400~500 Mbps IPSec throughput
DDR2/3:
ODT off, Self-refresh mode RGMII iNIC Driver: Linux 2.4/2.6
Firmware:
Linux 2.6 SDK, OpenWRT
Supply Ability
Supply Ability:
3000 Piece/Pieces per Day
Packaging & Delivery
Port
shenzhen
Lead Time :
20-25 working days
Product Details

Wifi module AR9331 QCA9531 QCA9561 Qualcomm chipset solution ODM&OEM

1. Features

>> Embedded MIPS1004Kc (880 MHz) with 32 KB ICache and 32 KB D-Cache for each core
>> 16-bit DDR2/3 512 Mbytes
>> SPI, NAND Flash, SDXC, eMMC(4 bits)
>> 1x USB 3.0, 2x USB 2.0, 3x PCIe host
>> 5-port 10/100/1000 SW/PHY and one RGMII
>> I2C, SPI*2, UART lite*3, JTAG, MDC, MDIO, GPIO,PCIe host x 3
>> Deliver the superb Samba performance via USB2.0/USB 3.0/SD-XC
>> HW storage accelerator
>> HW NAT - 2Gbps wired speed - L2 bridge - IPv4 routing, NAT, NAPT
IPv6 routing, DS-Lite, 6RD, 6to4 HW QoS 16 hardware queues to guarantee the
min/max bandwidth of each flow. -Seamlessly co-work with HW NAT engine. - 2Gbps wired speed.
HW Crypto Deliver 400~500 Mbps IPSec throughputFirmware:
>> Linux 2.6 SDK, or OPENWRT
>> One RGMII/MII interface
>> VoIP support (I2S, PCM) , Audio interface (SPDIF-Tx, I2S, PCM)


2. Functional Block Diagram


3. MECHANICAL

Dimensions

(mm)
Length
Width
Height
50
(Tolerance:±0.2mm)
50
(Tolerance:±0.2mm)
4
(Tolerance:±0.2mm)

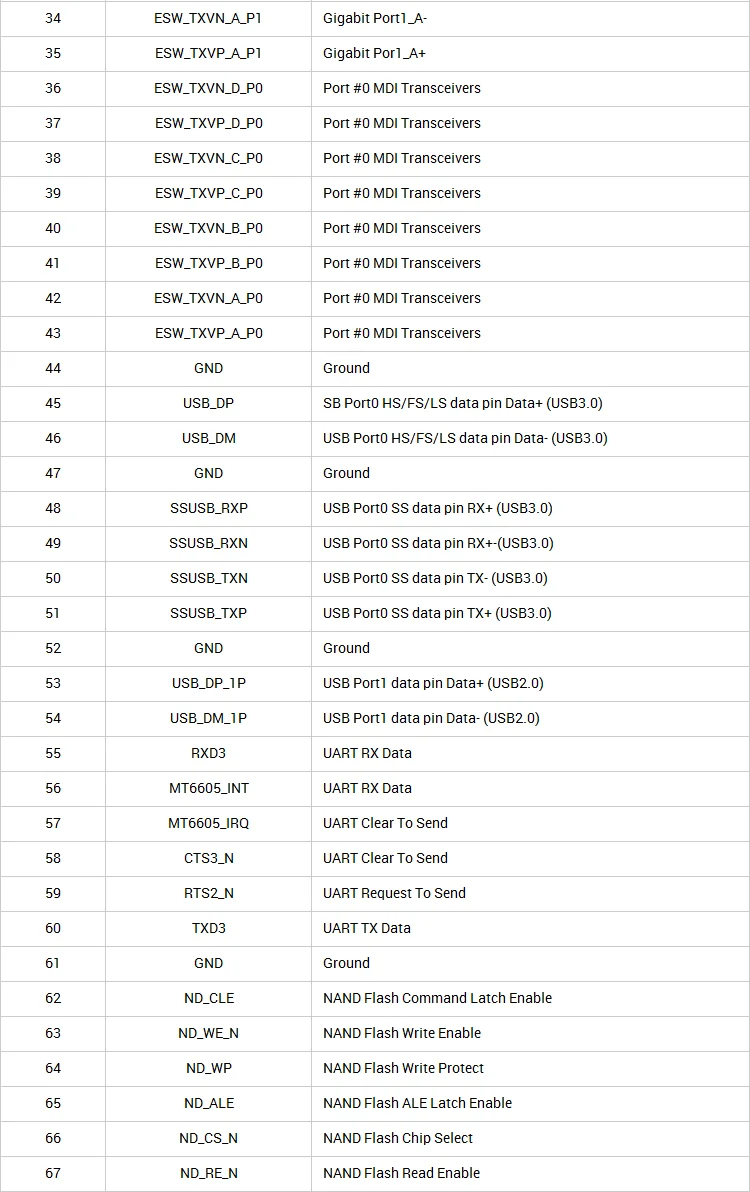

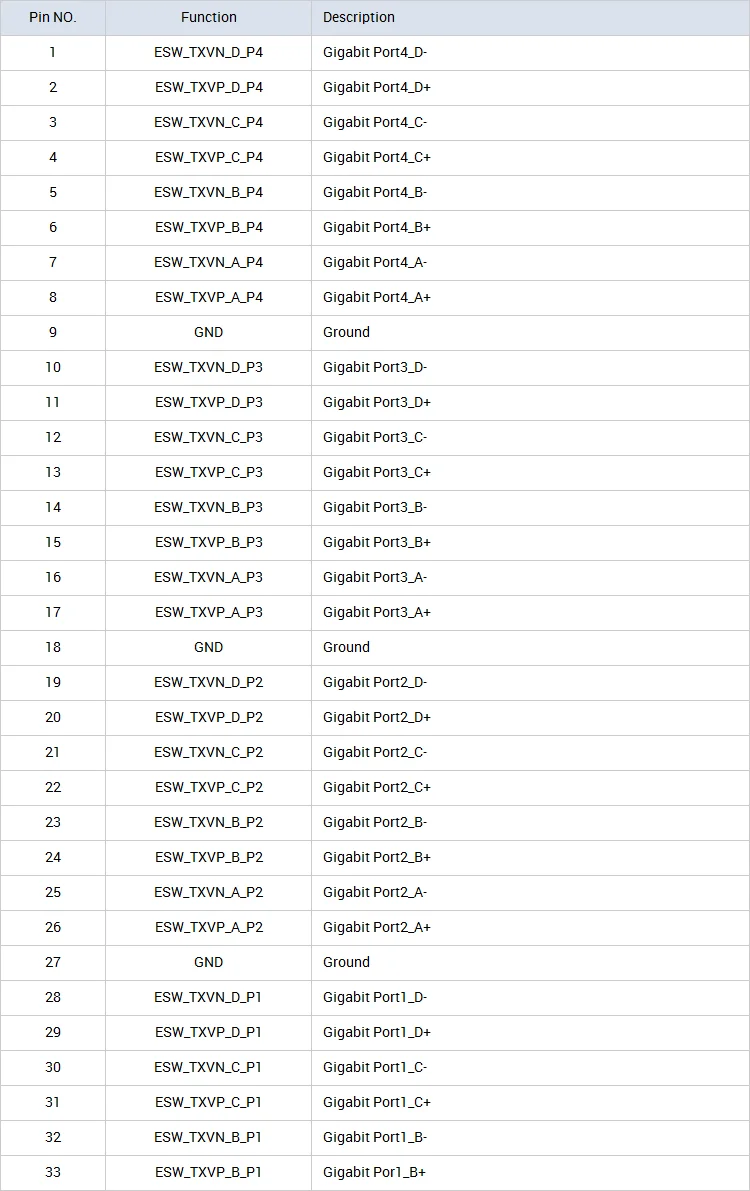

4. PINS DESCRIPTION
