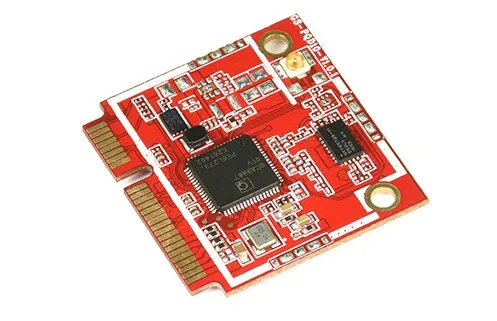

high quality qualcomm solution mini pcie QCA9887 wifi module

FOB Reference Price:Get Latest Price
$8.00 - $15.00 / Pieces | 500 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
GS-PQD10
Brand Name:
Oolite
Place of Origin:
Guangdong, China
CPU:
QCA9887
VCC:
5V
Interface:
MiniPCIE
EEPROM:
32Kbit
Antenna:
1 external antenna
GPIO:
17
PCIE:
1
Wireless speed:
72.2 Mbps for 20-MHz and 150 Mbps for 40-MHz (802.11n )
Frequency Range:
20/40/80 MHz ~ 5 GHz
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
plastic tray or blister
Port
shenzhen
Lead Time :
20-25 working days
Product Description

high quality qualcomm solution mini pcie QCA9887 wifi module


General Description

The GS-PQD10 is a complete,small 802.11a/n/ac Wi-Fi Solution optimized for low-cost, and highly integrated AP and consumer electronic devices,the module integrates all Wi-Fi functionality in a package friendly to low-cost PCB design, requiring only a 5V power supply .
The module based on the QCA9887 which integrates a multi-protocol MAC, PHY, analog-to-digital/ digital-to-analog converters (ADC/DAC), 1x1 radio transceivers, and PCI Express interface in an all-CMOS device for lowpower consumption and small form-factor applications.It supports 802.11n up to 72.2 Mbps for 20-MHz and 150 Mbps for 40-MHz channel operations, and IEEE 802.11a data rates.

Applications Stage

● Smart home network equipment
● Wireless WIFI device, unmanned aerial vehicle
● Dual band Router, Industry Controller and so on

Features:

◆ CPU: QCA9887
◆ EEPROM:32Kbit
◆ Wireless speed: 72.2 Mbps for 20-MHz and 150 Mbps for 40-MHz (802.11n )
◆ Power supply voltage: 5V
◆ GPIO:17
◆ PCIE:1× PCIE
◆ Antenna:1×external antenna
◆ Supports 20/40/80 MHz at 5 GHz
◆ 1.2 V switching regulator
◆ Support for IEEE 802.11d, e, h, i, k, r, v time stamp, and w standards

Mechanical
Dimensions (mm)
Length
Width
Height
29.8
(Tolerance:±0.2mm)
28.2
(Tolerance:±0.2mm)
1.0
(Tolerance:±0.2mm)
Hardware Overview

Block Diagram

The general Hardware architecture is shown below Figure:

Pin Description

Electrical Characteristics


Absolute Maximum Rating
Parameter
Symbol
Min
Max
Power Supply Voltage
5V
5
-0.3
5.5
GND
0
-0.3

GPIO Voltage
VIH
——
2.31
——
VIL
——
——
0.99
VOH
——
2.97
——
VOL
——
——
0.33
Environment
Storage Temperature
Tstg
-40
80
Peak Reflow Soldering Temperature <10s
Tpeak

260
Humidity


95
Certifications
