Hot Sale !!!mini 3g 4g pocket wifi router with 2.4G/5G wireless AP alternative

FOB Reference Price:Get Latest Price
  • 1 - 1999 Pieces
    $22.00
  • 2000 - 4999 Pieces
    $18.50
  • >=5000 Pieces
    $17.00
Report Suspicious Activity
Overview
Quick Details
Model Number:
minibox V3.2
Brand Name:
Oolite
Place of Origin:
Guangdong, China
Chipset:
QCA9887/AR9531
Flash:
16M
OEM:
enable
brand name:
Oolite
DDR2:
128M
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
30pcs/tray, 300pcs/package
Port
shenzhen
Lead Time :
20-25 working days
Product Description

Hot Sale !!!mini 3g 4g pocket wifi router with 2.4G/5G wireless AP alternative

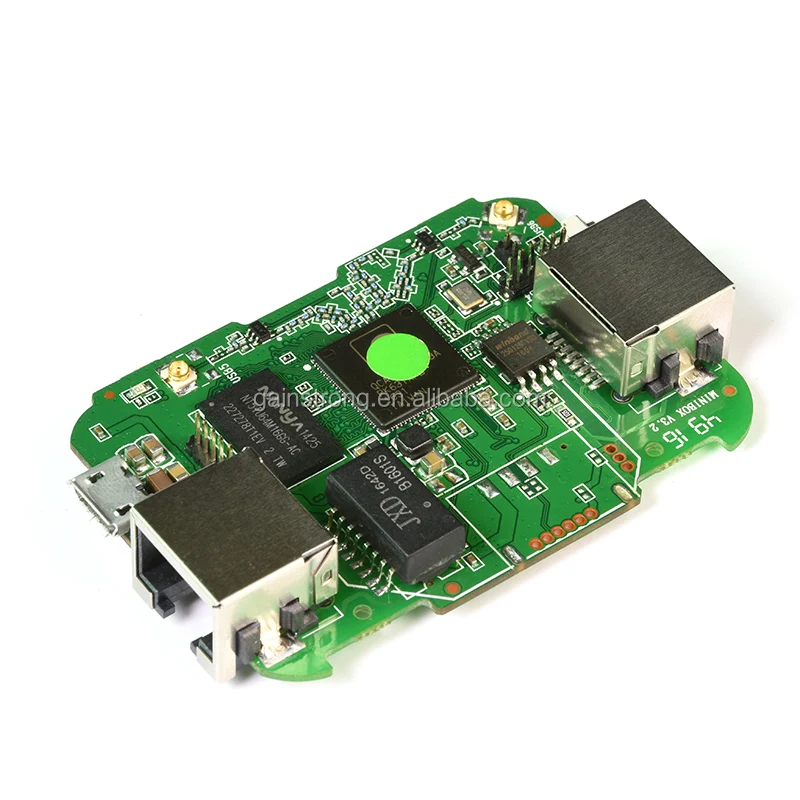

MiniBox V3.2 is exquisite portable and small wireless router that supports 5G WIFI and 2.4G WIFI. It compatible 802.11 a/b/g/n/ac maximum wireless rate can reach to 300Mbps.It is made up of base board and module.The base board use the QCA9531 chip that is a highly integrated and feature-rich IEEE802.11n 2x2 2.4 GHz System-on-a-Chip (SoC) for advanced WLAN platforms. The module use the QCA9887 chip which integrates a multi-protocol MAC, PHY, analog-to-digital/ digital-to-analog converters (ADC/DAC),1x1 radio transceivers, and PCI Express interface in an all-CMOS device for lowpower consumption and small form-factor applications.
MiniBox V3.2 has 2 FE RJ45 ports which support both wired connection and wireless connection at the same time.it allows users not only able to share their internet by wired connection but also wireless connection.Its power consumption is very low.

Applications Stage:
● Smart home network equipment

● Wireless WIFI device

● Industrial field

Products Details
1.Features:
CPU: QCA9531 with 550 MHz MIPS 24Kc and QCA9887
 Supports 20/40/80 MHz at 5 GHz
 RAM: 128MB DDR2 RAM (64MB optional)
 Flash: 16MB SPI NOR Flash(8/16/32/64M option)
 EEPROM:32Kbit
 USB: 1×Micro USB (support 1×USB2.0)
Power supply voltage: 5V
 Port: 1WAN+ 1 LAN
Antenna: 3×external antenna.
 PCIE:1× PCIE
 1×RESET Button
 1×UART console

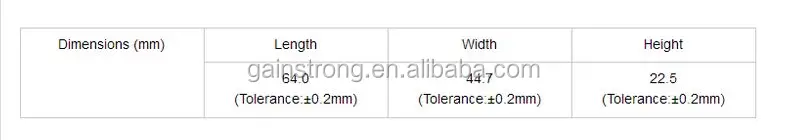

2.MECHANICAL

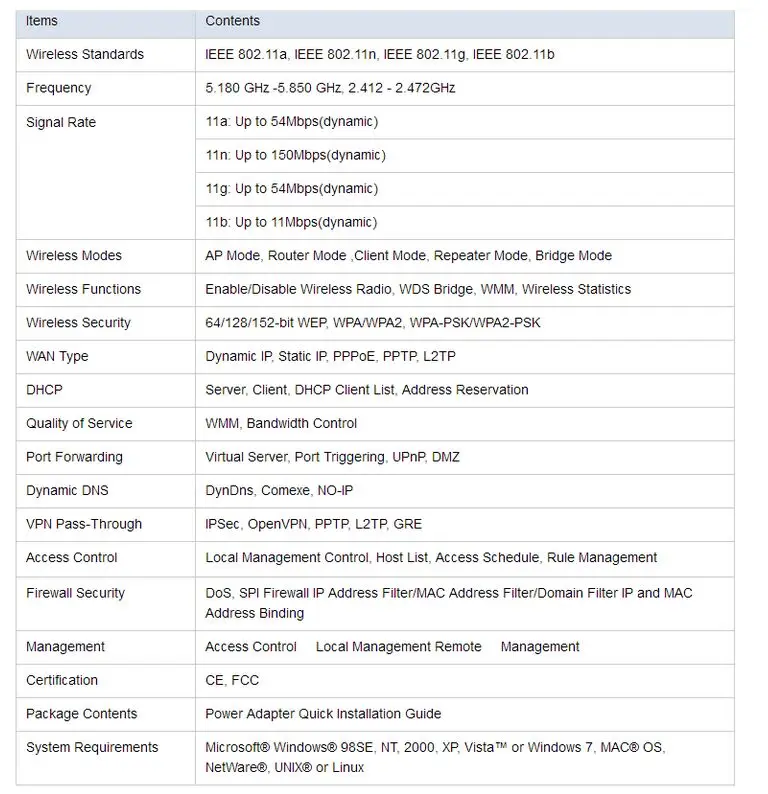

3.ELECTRICAL SPECIFICATIONS

RF hardware performance

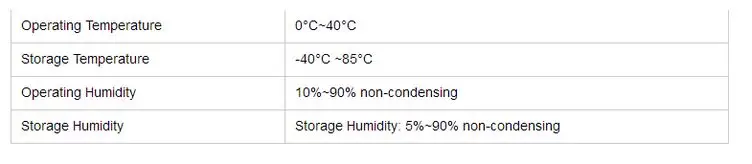

4.ENVIRONAMENT:
Packing & Delivery

packing details:plastic tray or other

delivery details: 20-25 working days
