This Module use AR1021X as Soc. The AR1021X is a highly integrated, system-on-a-chip solution for 2.4/5 GHz IEEE 802.11n 2x2 MIMO WLAN, providing improved link robustness, extended range, and increased throughput and performance. The AR1021X supports two-stream 802.11n and includes the Qualcomm Atheros internal Efficient Power Amplifier<0099> (EPA) technology. It integrates dual-band power amplifiers and receive low-noise amplifiers, and 2.4GHz Tx/Rx switches. Advanced architecture and protocol techniques save power during sleep, stand-by and active states. The AR1021X supports USB, SDIO, and SPI host interfaces, and multiple peripheral interfaces including UART, SPI, xMII, I2C and GPIO. All internal clocks generate from a single external crystal. The AR1021X supports reference clocks ranging from 19.2to 52MHz.
<<All-CMOS IEEE 802.11a/b/g/n 2x2 single-chip <<USB2.0 at 480 Mpbs, with LPM support, using an integrated controller and PHY <<SDIO 2.0 interface with 200 Mbps throughput <<MII/RMII/RGMII interface <<Extensive hardware support for WLAN coexistence through LPC message passing <<Power and clock management for extended battery life <<Green-Tx power saving <<Low-power listen mode and radio retention for reduced Receive power consumption and sleep current <<Support for STBC and transmit beamforming (TxBF) <<Support for LDPC encoded transmission and reception <<Maximum Likelihood (ML) decoder for multistream 802.11n reception <<Internal OTP memory for calibration data <<Integrated RF switch for 2.4 GHz Figure 1-1 Product photos <<Data rates of up to 54 Mbps for 802.11a/g and 144.4 for 802.11n HT20, 300 Mbps for HT40 <<Advanced power management to minimize standby, sleep and active power <<Security support for WEP, WPA, WPA2, WAPI, as well as WPS and protected managements frames <<Full 802.11e QoS support including WMM and U-APSD <<802.11e-compatible bursting <<Support for the IEEE 802.11e, h, i, and j <<WEP, TKIP, and AES hardware encryption <<Reduced (short) guard interval <<Frame aggregation with A-MPDU <<MIMO power save <<Block ACK <<UART for console support
<<2/3/4-wire Bluetooth coexistence support <<JTAG-based processor debugging supported <<Product size: Product size: 21.0mm * 63.0mm(±0.1mm) <<Product photos (Figure 1-1)

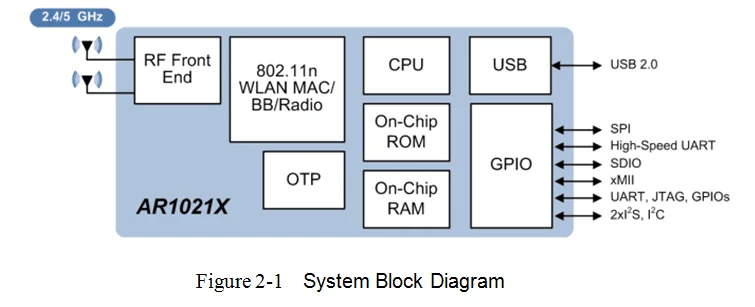

2.System Block Diagram(see Figure 2-1):

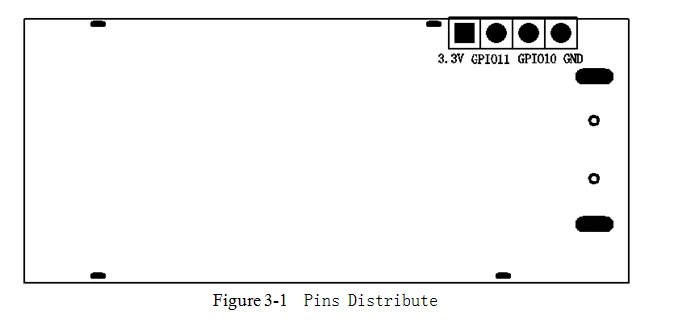

3.Pins distribute(see Figure 3-1):
4.Pins Description :

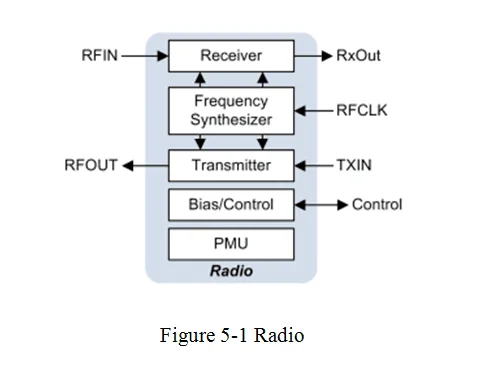

5.Radio(see Figure 5-1): The AR1021X transceiver consists of five major functional blocks (see Figure 5-1) : Receiver (Rx) Transmitter (Tx) Frequency synthesizer (SYNTH) Associated bias/control (BIAS) Power Management Unit (PMU)
6. Receiver Characteristics(see Table 6-1):

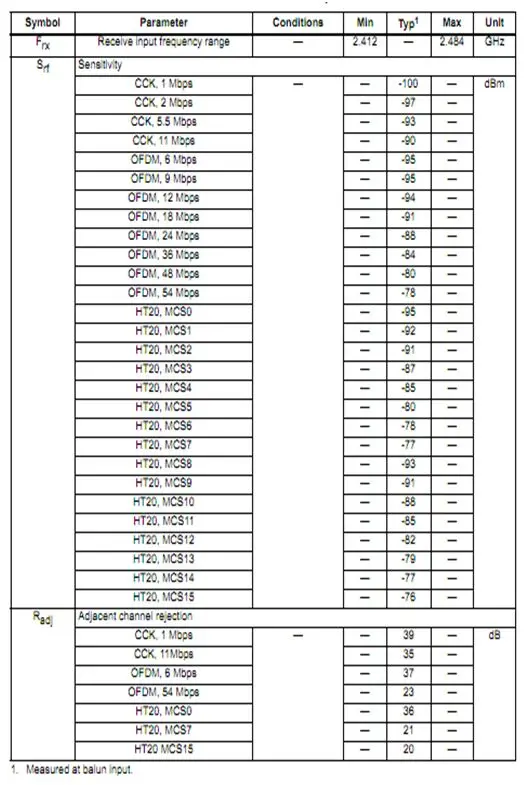

Table 6-1 Receiver Characteristics for 2.4 GHz Dual Chain Operation.
7.Transmitter Characteristics(see Table 7-1):

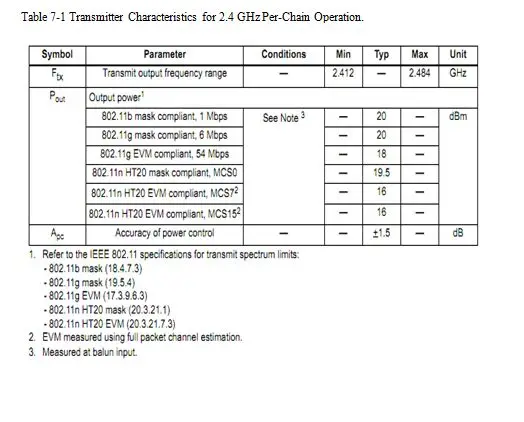

Table 7-1 Transmitter Characteristics for 2.4 GHz Per-Chain Operation.

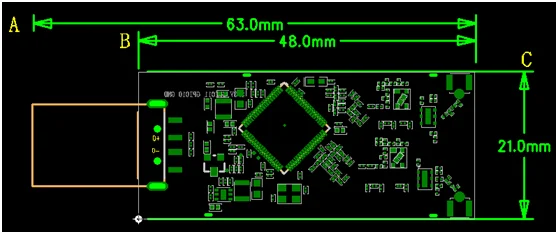

8.Physical Demensions(reference for mainboard design) (see Figure 8-1):
A:The length of the module B:The length of the PCB board C:The width of the module
