wireless data collection system openwrt QCA9887 atheros 5ghz usb wifi module

FOB Reference Price:Get Latest Price
  • 1 - 1999 Pieces
    $15.00
  • 2000 - 4999 Pieces
    $8.00
  • >=5000 Pieces
    $7.56
Report Suspicious Activity
Overview
Quick Details
Model Number:
GS-PQD10
Brand Name:
Oolite
Place of Origin:
Guangdong, China
Chipset:
QCA9887
Firmware:
OpenWrt
EEPROM:
32Kbit
VCC:
5V
GPIO:
17
size:
28.2mm*29.8mm
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
30pcs/tray, 300pcs/package
Port
shenzhen
Lead Time :
20-25 working days
Product Description

wireless data collection system openwrt QCA9887 atheros 5ghz usb wifi module


The GS-PQD10 is a complete,small 802.11a/n/ac Wi-Fi Solution optimized for low-cost, and highly integrated AP and consumer electronic devices,the module integrates all Wi-Fi functionality in a package friendly to low-cost PCB design, requiring only a 5V power supply .
The module based on the QCA9887 which integrates a multi-protocol MAC, PHY, analog-to-digital/ digital-to-analog converters (ADC/DAC), 1x1 radio transceivers, and PCI Express interface in an all-CMOS device for lowpower consumption and small form-factor applications.It supports 802.11n up to 72.2 Mbps for 20-MHz and 150 Mbps for 40-MHz channel operations, and IEEE 802.11a data rates.
Applications Stage

● Smart home network equipment
● Wireless WIFI device, unmanned aerial vehicle
● Dual band Router, Industry Controller and so on


Products Details

1.Features:

◆ CPU: QCA9887
◆ EEPROM:32Kbit
◆ Wireless speed: 72.2 Mbps for 20-MHz and 150 Mbps for 40-MHz (802.11n )
◆ Power supply voltage: 5V
◆ GPIO:17
◆ PCIE:1× PCIE
◆ Antenna:1×external antenna
◆ Supports 20/40/80 MHz at 5 GHz
◆ 1.2 V switching regulator
◆ Support for IEEE 802.11d, e, h, i, k, r, v time stamp, and w standards

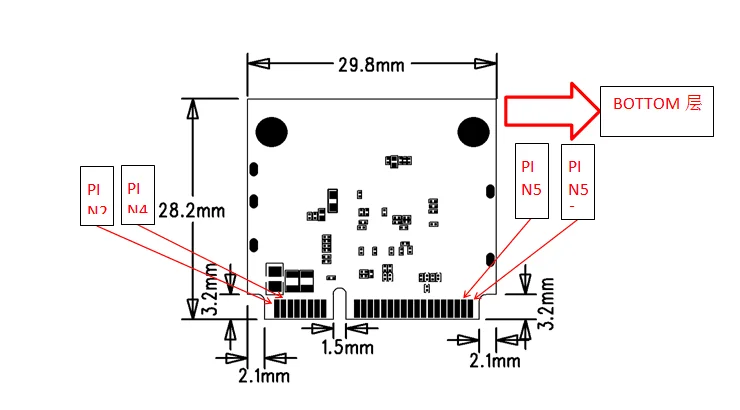

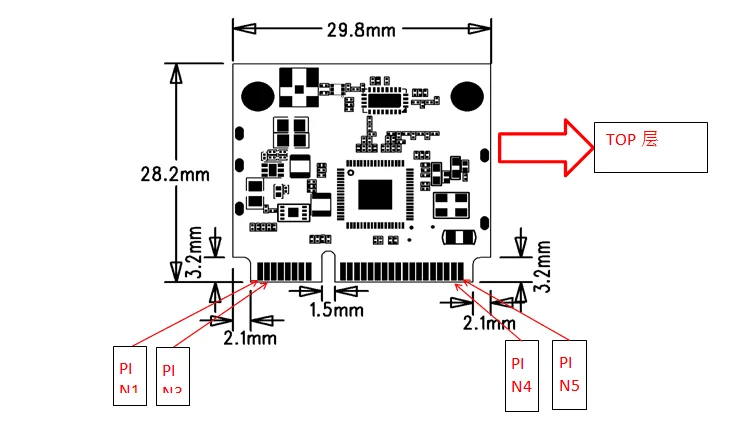

2.MECHANICAL:

3. HARDWARE OVERVIEW

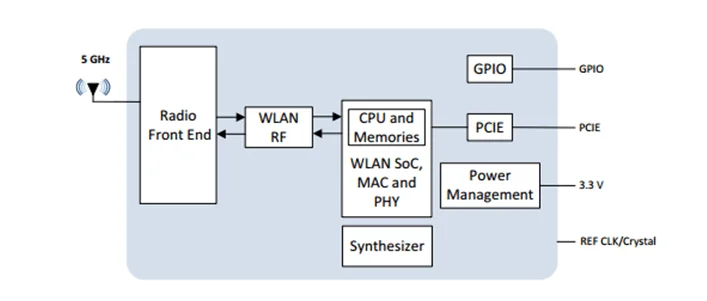

Block Diagram
The general Hardware architecture is shown below Figure:

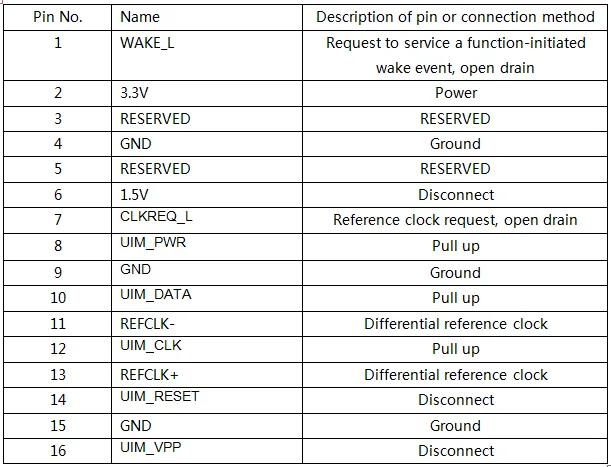

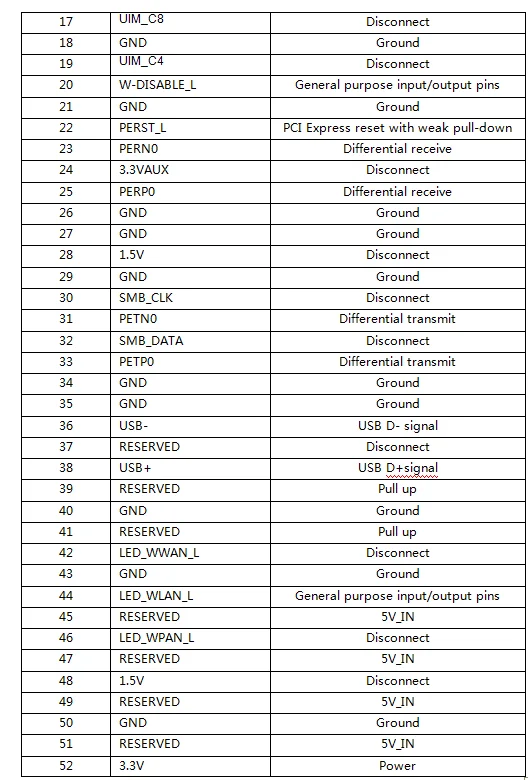

4.PIN DESCRIPTION:

5. ELECTRICAL CHARACTERISTICS

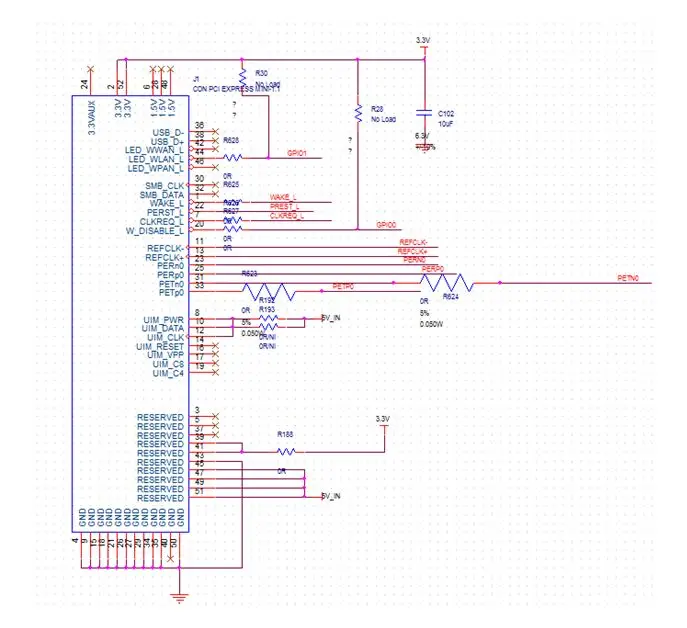

6.REFERENCE DESIGN SCHEMATIC
(1)Schematic diagram of interface

Packing & Delivery

Packing details:Plastic electrostatic prevention tray : 30pcs / tray. 900pcs / carton
Delivery details:6 working days after payment

Our Company

Shenzhen Gainstrong Technology Ltd. is a professional manufacturer for Network communication products ,including wifi Routers,wifi modules, Industial wifi equipment,smart home devices...and so on .The company was established on 2009 ,Our factory located in Shajing town ,Bao An District ,Shenzhen, China ,We are focus on ODM and OEM service to the customer all over the world with professional R&D team . Factory equipped with sophisticated manufacturing machines ,include 1 High-speed SMT production lines and 2 product-assembly lines, about 40 staff, Production capacity for wifi modules can be 2000pcs per day.
With professional mind, we are trying to offer the customer the most competive price ,quick lead time for delivery, strict quality inspection and intimate customer servervice. To satisfy customer perfectly,we are managing the safety ability and the design which combines the sensibility and technique , as well as the advanced equipment.

Certifications
Our Service

We can flash customer firmware, ODM customer baseboard or redesign whole board, we can make sure device fit FCC,CE and so on. we can supply software design service.
