iot 433mhz 868 sx1276 arduino wifi wireless rf LoRa module

FOB Reference Price:Get Latest Price
$5.00 - $10.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Oolite
Model Number:
Lora.House V1.0.0
Modem:
LoRaTM
Frequency:
868Mhz
Maximum link:
168 dB
High efficiency PA:
+20 dBm
High sensitivity:
down to -148 dBm
Dynamic Range RSSI:
127 dB
Bit rate:
up to 300 kbps
Pins:
20
VCC:
3.3V
Size:
16.8*32.3mm
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
plastic tray or blister
Port
shenzhen
Lead Time :
20-25 working days
Product Description

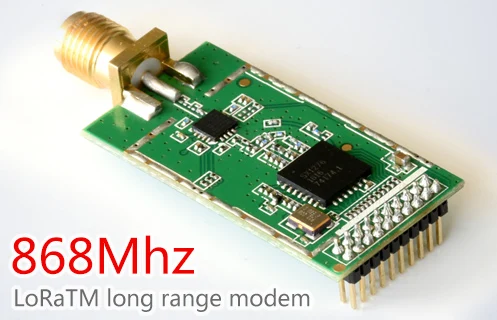

iot 433mhz 868 sx1276 arduino wifi wireless rf LoRa module

The Lora.House V1.0 transceivers feature the LoRaTM long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption. Using Hope RF‟s patented LoRaTM modulation technique RFM95/96/97/98 can achieve a sensitivity of over -148dBm using a low cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness. LoRaTM also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range,interference immunity and energy consumption.

These devices also support high performance (G)FSK modes for systems including WMBus, IEEE802.15.4g. The Lora.House V1.0 deliver exceptional phase noise, selectivity, receiver linearity and IIP3 for significantly lower current consumption than competing devices.


Products Details

1. Features

>> LoRaTM Modem (868Mhz).
>> 168 dB maximum link budget.
>> +27 dBm +- 1dbm constant RF output vs. V supply.
>> +20 dBm high efficiency PA - RFX1010.
>> Programmable bit rate up to 300 kbps.
>> High sensitivity: down to -148 dBm.
>> Bullet-proof front end: IIP3 = -12.5 dBm.
>> Excellent blocking immunity.
>> Low RX current of 10.3 mA, 200 nA register retention.
>> Fully integrated synthesizer with a resolution of 61 Hz.
>> FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
>> Built-in bit synchronizer for clock recovery.
>> Preamble detection.
>> 127 dB Dynamic Range RSSI.
>> Automatic RF Sense and CAD with ultra-fast AFC.
>> Packet engine up to 256 bytes with CRC.
>> Built-in temperature sensor and low battery indicator.
>> Modue Size:16.8*32.3mm


2. Applications

>> Automated Meter Reading.
>> Home and Building Automation.
>> Wireless Alarm and Security Systems.
>> Industrial Monitoring and Control
>> Long range Irrigation Systems

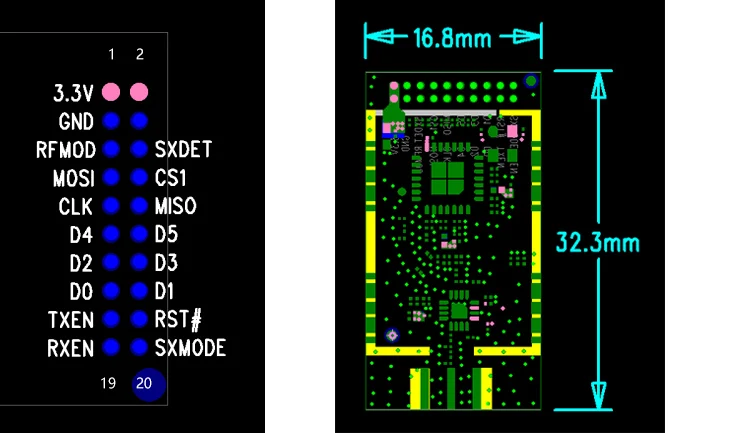

4. Pins description

TOP view
Our Company
Shenzhen Gainstrong Technology Ltd. is a professional manufacturer for Network communication products ,including wifi Routers,wifi modules, Industial wifi equipment,smart home devices...and so on .The company was established on 2009 ,Our factory located in Shajing town ,Bao An District ,Shenzhen, China ,We are focus on ODM and OEM service to the customer all over the world with professional R&D team . Factory equipped with sophisticated manufacturing machines ,include 1 High-speed SMT production lines and 2 product-assembly lines, about 40 staff, Production capacity for wifi modules can be 2000pcs per day.
With professional mind, we are trying to offer the customer the most competive price ,quick lead time for delivery, strict quality inspection and intimate customer servervice. To satisfy customer perfectly,we are managing the safety ability and the design which combines the sensibility and technique , as well as the advanced equipment.
Certifications
FAQ

1. Can I order a sample ? how fast can l get it ?
Yes, usually we have sample in tock, even without, processing time will be around 3~4days


2. How fast can l get my order after paid?
Our processing time from 1-4 business days, according to size and quantity, and shipping way.
usually, for sample order we ship out in 3-5days , delivery time is around 20~25days

3.Do you support Logo ordering? what is the mini order quantity?
Yes, we provide logo ordering for customers who purchase at least 1000 dollars.
If the assume doesn’t reach 1000 dollars, we need to ask about 1000RMB for design cost.
