2017 hot selling embedded wireless ar9580 ar9582 openwrt module

FOB Reference Price:Get Latest Price
$11.20 - $23.00 / Piece | 500 Piece/Pieces (Min. Order)
Support Sea freight
Report Suspicious Activity
Quick Details
Model Number:
Brand Name:
Place of Origin:
Guangdong, China, Guangdong, China
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
plastic tray or blister
Lead Time :
20-25 working days
Product Description

         The Qualcomm Atheros AR9582 is a highly integrated single-chip solution for 2.4 or 5 GHz

802.11n wireless local area networks (WLANs) that enables high-performance 2x2 MIMO with 2
Spatial Streams for wireless applications demanding the highest robust link quality and maximum
throughput and range. The AR9582 integrates a multi-protocol MAC, baseband processor, analogto-
digital/digital-to-analog converters (ADC/DAC), 2x2 MIMO radio transceivers, and PCI
Express interface in an all-CMOS device for low power consumption and small form-factor applications.
     The AR9582 implements half-duplex OFDM, CCK, and DSSS baseband process, supporting up to
150 Mbps for 20 MHz and 300 Mbps for 40 MHz channel operations, and IEEE 802.11a/b/g
data rates. Additional features include Maximal Likelihood (ML) decoding, Low-Density Parity
Check (LDPC), Maximal Ratio Combining (MRC), Tx Beamforming (TxBF), Space Time Block
Code (STBC), and On-Chip One-Time Programmable (OTP) memory. The AR9582 supports
802.11 wireless MAC protocol, 802.11i security, Rx/Tx filtering, error recovery, and 802.11equality of service (QoS).

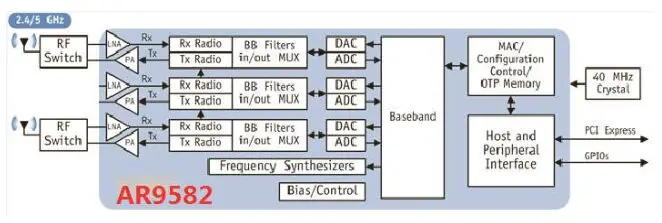

     The AR9582 supports up to two simultaneous traffic streams integrating two Tx and two Rxchains for high throughput and extended coverage. Tx chains combine baseband in-phase (I) and quadrature (Q) signals, convert them to the desired frequency, and drive the RF signal to multiple antennas. Rx chains use an integrated architecture. The frequency synthesizer supports 1-MHz steps to match frequencies defined by IEEE 802.11a/b/g/n specifications.
     The AR9582 supports frame data transfer to and from the host using a PCIE interface providing interrupt generation and reporting, power save, and status reporting. Other external interfaces include EEPROM.
Detailed Images

  Dynamic frequency selection (DFS) in required 5-GHz bands when used as an AP

2x2 MIMO technology improves effective throughput and range over existing 802.11a/b/g products

Supports spatial multiplexing, cyclic-delay diversity (CDD), low-density parity check (LDPC), maximal ratio combining (MRC), Space Time Block Code (STBC), and Tx Beamforming (TxBF)

Smart antenna diversity

Single-ended RF ports with integrated matching simplify board design and layout

Integrated 1.2 V switching regulator

Data rates of up to 150Mbps for 20 MHz channels and 300 Mbps for 40 MHz channels using reduced (short) guard interval

On-Chip One-Time Programmable memory

Support for IEEE 802.11e, h, and i standards

WEP, TKIP, AES, and WAPI hardware encryption

PCI Express 1.1 interface

20 and 40 MHz channelization

High Tx power accuracy at lower power level

8 bits spectral analysis resolution

Frame aggregation, block ACK

802.11e-compatible bursting

Support for 2/3/4/6-wire BT coexistence

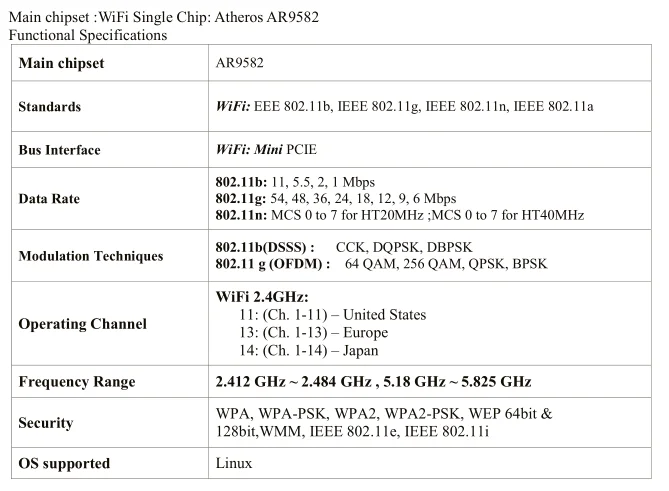

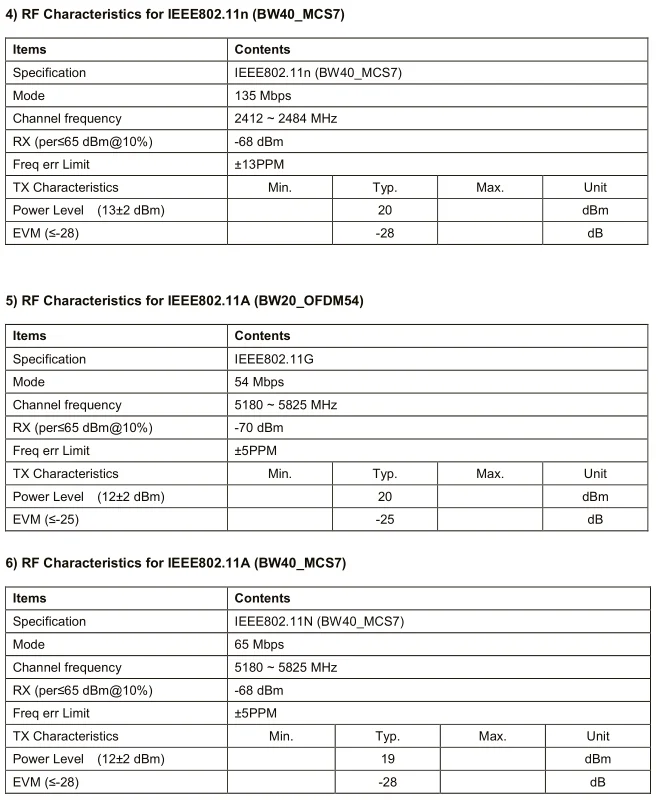

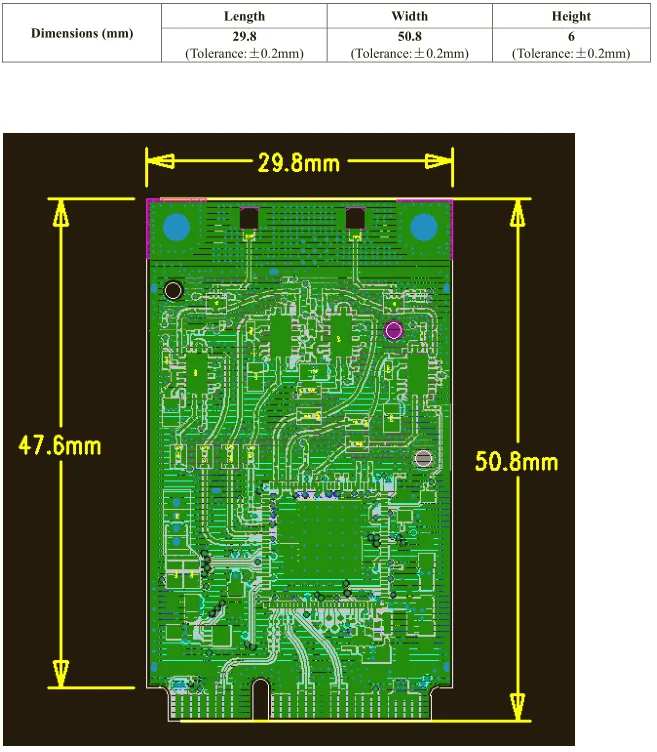

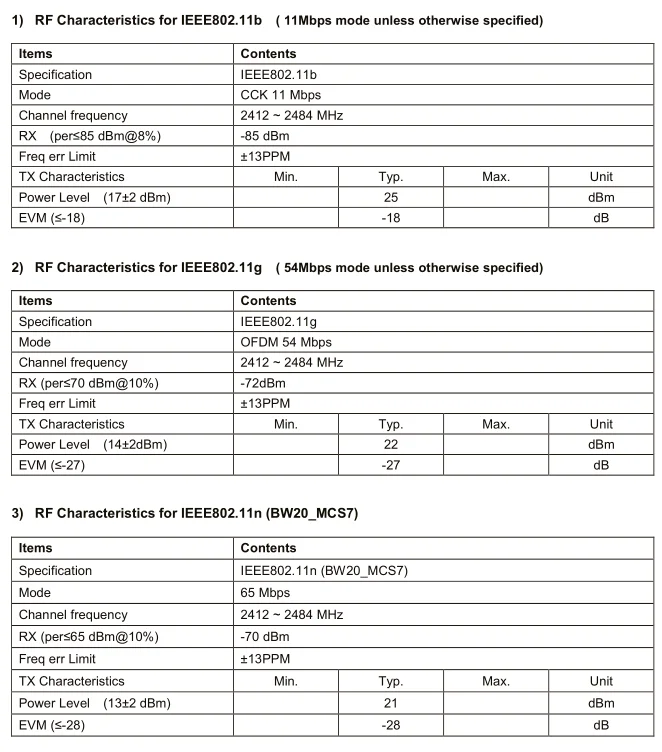

Product Specification:

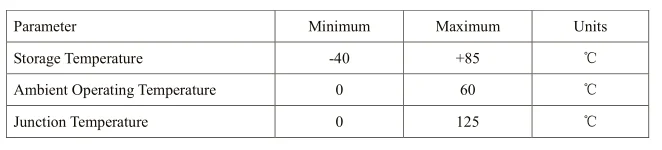

Temperature Limit Ratings:


Dual-Band (2x2) Solution with Single Antenna

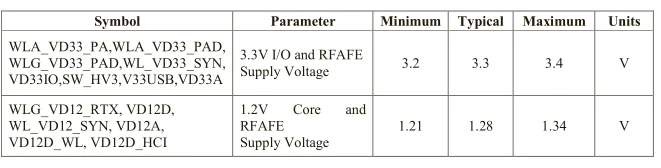

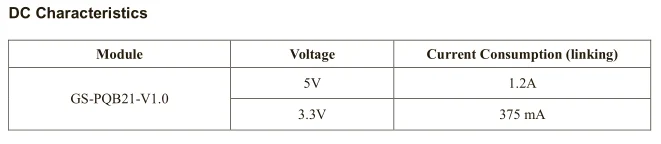

Electrical Characteristics:

Electrical Specifications:
