openwrt qca9887 router machine price

FOB Reference Price:Get Latest Price
$8.00 - $15.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
GS-PQD10, GS-PQD10
Brand Name:
Oolite
Place of Origin:
Guangdong, China, Guangdong, China
Brand:
Oolite
Chipset:
QCA9887
Speed:
150Mbps
Size:
28.2mm * 29.8mm
Power:
5V
Date rates:
72.2mbps(ht20)
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
plastic tray or blister
Port
shenzhen
Lead Time :
20-25 working days
Product Description

           The GS-PQD10 is a complete,small 802.11a/n/ac Wi-Fi Solution optimized for low-cost, and highly

integrated AP and consumer electronic devices,the module integrates all Wi-Fi functionality in a package
friendly to low-cost PCB design, requiring only a 5V power supply .
          The module based on the QCA9887 which integrates a multi-protocol MAC, PHY, analog-to-digital/
digital-to-analog converters (ADC/DAC), 1x1 radio transceivers, and PCI Express interface in an all-CMOS
device for lowpower consumption and small form-factor applications.It supports 802.11n up to 72.2 Mbps
for 20-MHz and 150 Mbps for 40-MHz channel operations, and IEEE 802.11a data rates.


Applications Stage
● Smart home network equipment

● Wireless WIFI device, unmanned aerial vehicle

● Dual band Router, Industry Controller and so on
Detailed Images

Features:

◆ CPU: QCA9887

◆ EEPROM:32Kbit

◆ Wireless speed: 72.2 Mbps for 20-MHz and 150 Mbps for 40-MHz (802.11n )

◆ Power supply voltage: 5V

◆ GPIO:17

◆ PCIE:1× PCIE

◆ Antenna:1×external antenna

◆ Supports 20/40/80 MHz at 5 GHz

◆ 1.2 V switching regulator

◆ Support for IEEE 802.11d, e, h, i, k, r, v time stamp, and w standards

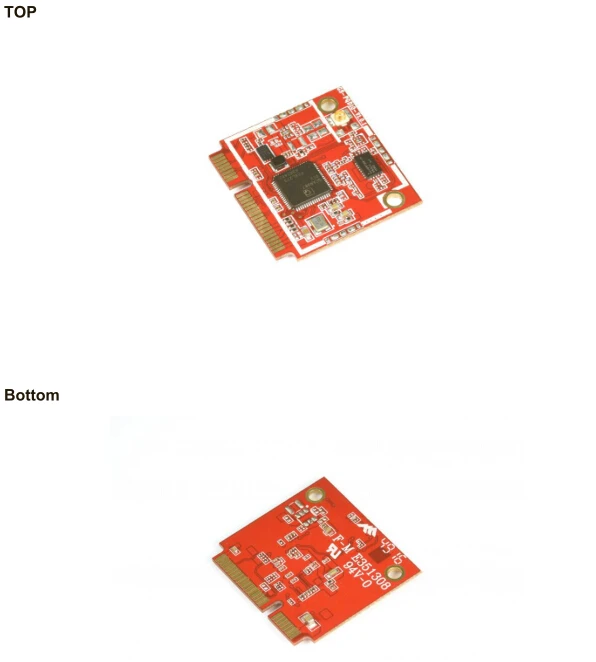

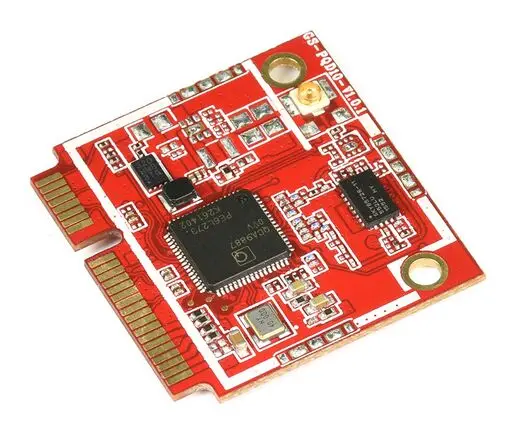

Picture:

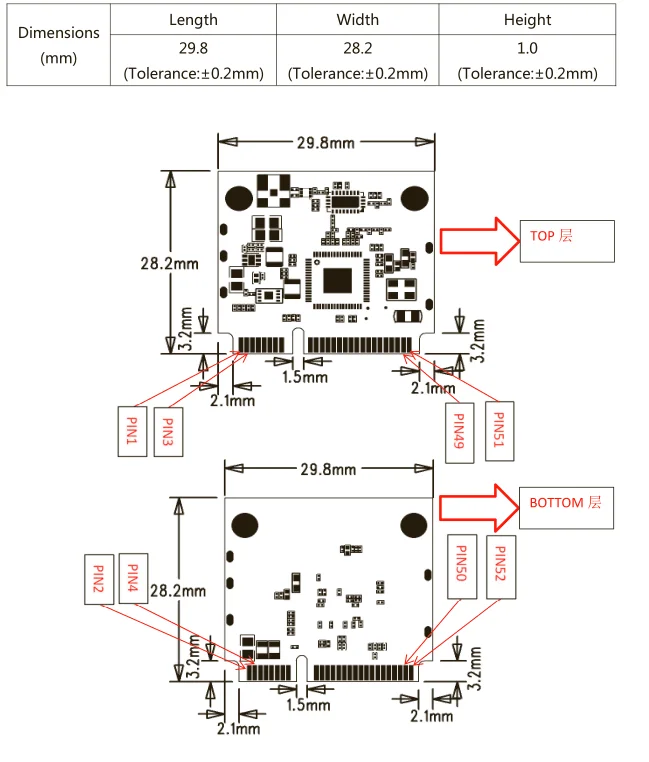

Mechanical:

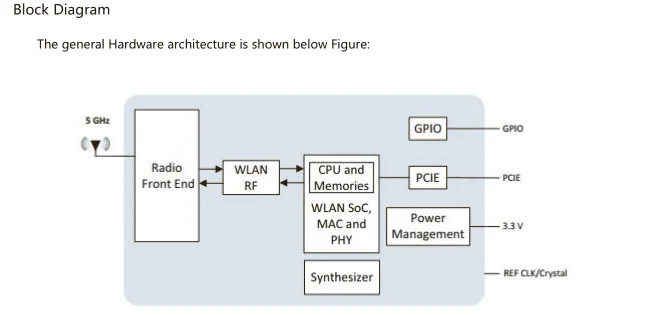

Hardware Overview:


Pins Description :

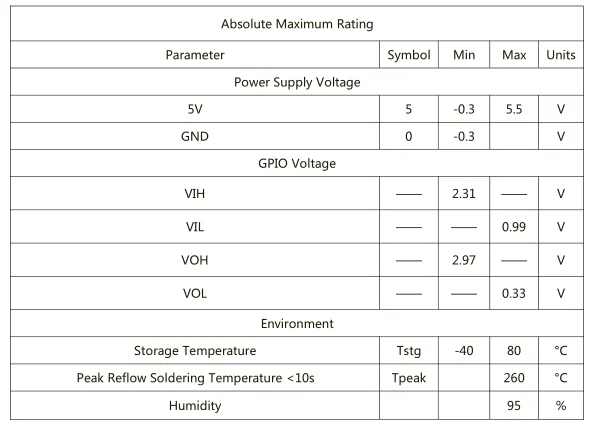

Electrical Characteristics:

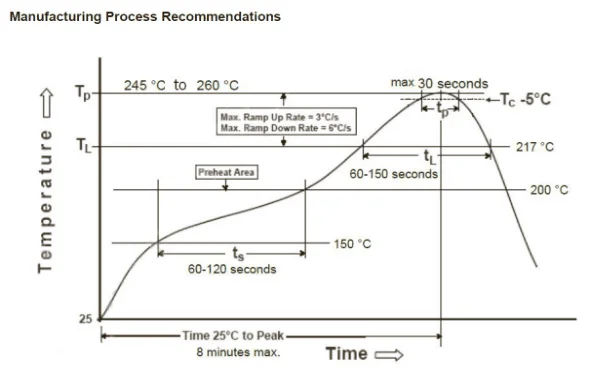

Manufacturing Process Recommendations:

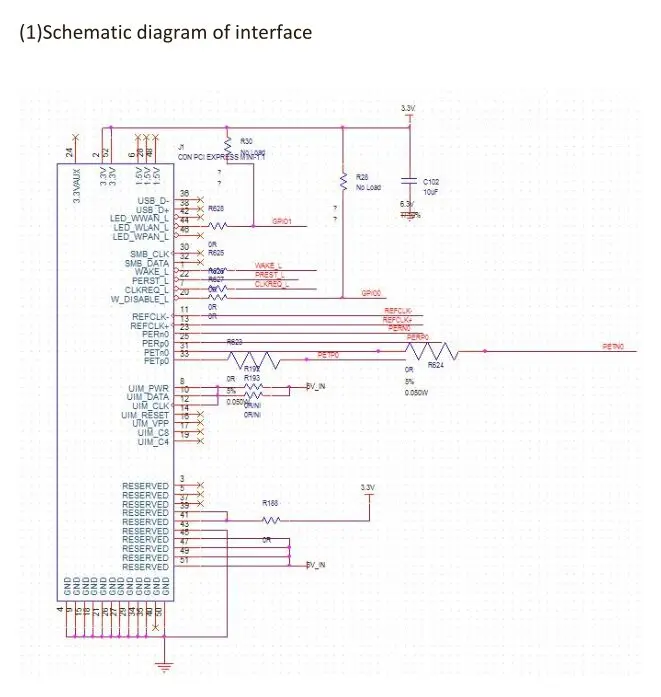

Reference Design Schematic:
