Mini USB Wireless 802.11 b/g/n WiFi Adapter 144.4mbps adaptor Antena

FOB Reference Price:Get Latest Price
  • 1 - 1999 Pieces
    $15.00
  • 2000 - 4999 Pieces
    $9.96
  • >=5000 Pieces
    $9.54
Report Suspicious Activity
Overview
Quick Details
Model Number:
GS-UA10P
Brand Name:
Oolite
Place of Origin:
Guangdong, China
Chipset:
AR1021X
product size:
26.0MM*72.7MM
place of origin:
Guangdong,China(Mainland)
brand name:
Oolite
interface:
MII/RMII/RGMII
Power supply voltage:
5V
ODM:
enable
OEM:
enable
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
30pcs/tray, 300pcs/package
Port
shenzhen
Lead Time :
20-25 working days
Product Description
Mini USB Wireless 802.11 b/g/n WiFi Adapter 144.4mbps adaptor Antena

This Module use AR1021X as Soc. The AR1021X is a highly integrated, system-on-a-chip solution for 2.4/5 GHz IEEE 802.11n 2x2 MIMO WLAN, providing improved link robustness, extended range, and increased throughput and performance.
The AR1021X supports two-stream 802.11n and includes the Qualcomm Atheros internal Efficient Power Amplifier<0099> (EPA) technology. It integrates dual-band power amplifiers and receive low-noise amplifiers, and 2.4GHz Tx/Rx switches. Advanced architecture and protocol techniques save power during sleep, stand-by and active states.
The AR1021X supports USB, SDIO, and SPI host interfaces, and multiple peripheral interfaces including UART, SPI, xMII, I2C and GPIO. All internal clocks generate from a single external crystal. The AR1021X supports reference clocks ranging from 19.2to 52MHz.
Products Details
1.Features:

All-CMOS IEEE 802.11a/b/g/n 2x2 single-chip
USB2.0 at 480 Mpbs, with LPM support, using an integrated
controller and PHY
SDIO 2.0 interface with 200 Mbps throughput
MII/RMII/RGMII interface
Extensive hardware support for WLAN coexistence through
LPC message passing
Power and clock management for extended battery life
Green-Tx power saving
Low-power listen mode and radio retention for reduced receive
power consumption and sleep current
Support for STBC and transmit beamforming (TxBF)
Support for LDPC encoded transmission and reception
Maximum Likelihood (ML) decoder for multistream 802.11n
reception
Internal OTP memory for calibration data
Integrated RF switch for 2.4 GHz Figure 1-1 Product photos
2.4 G of RX and TX configuration LNA and PA respectively
Data rates of up to 54 Mbps for 802.11a/g and 144.4 for 802.11n HT20, 300Mbps for HT40
Advanced power management to minimize standby, sleep and active power
Security support for WEP, WPA, WPA2, WAPI, as well as WPS and protected managements frames
Full 802.11e QoS support including WMM and U-APSD
802.11e-compatible bursting
Support for the IEEE 802.11e, h, i, and j
WEP, TKIP, and AES hardware encryption
Reduced (short) guard interval
Frame aggregation with A-MPDU
MIMO power save
Block ACK
UART for console support
2/3/4-wire Bluetooth coexistence support
JTAG-based processor debugging supported
Product size: Product size: 26.0mm * 72.7.0mm(±0.1mm)
Product photos (Figure 1-1)

2.System Block Diagram(see Figure 2-1):

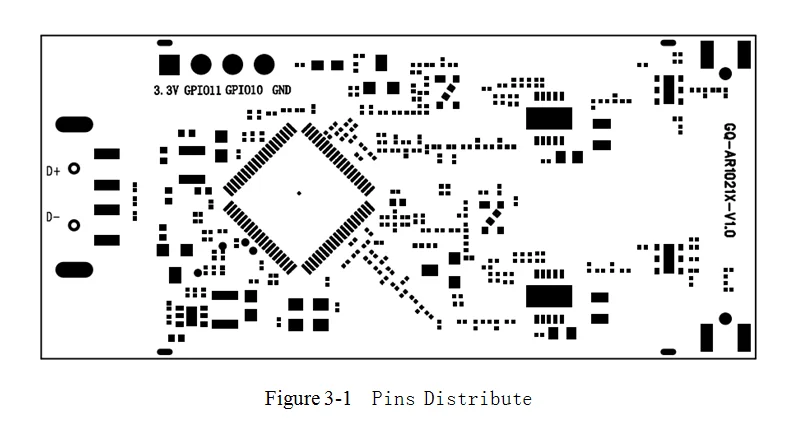

3.Pins distribute(see Figure 3-1):

4.Pins Description :

GPIO
RGMII Interface
GPIO10
RGMII_RX_CTL
GPIO11
RGMII_TX_CTL

5.Radio(see Figure 5-1):
The AR1021X transceiver consists of five major functional blocks (see Figure 5-1) :
Receiver (Rx)
Transmitter (Tx)
Frequency synthesizer (SYNTH)
Associated bias/control (BIAS)
Power Management Unit (PMU)

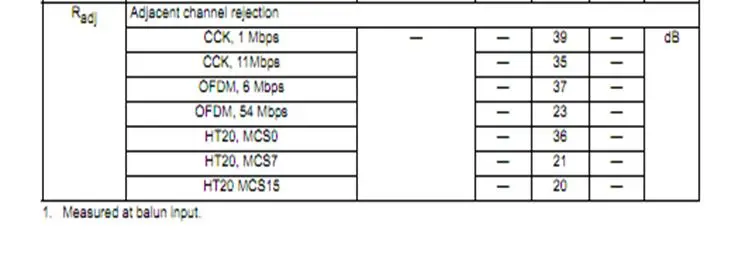

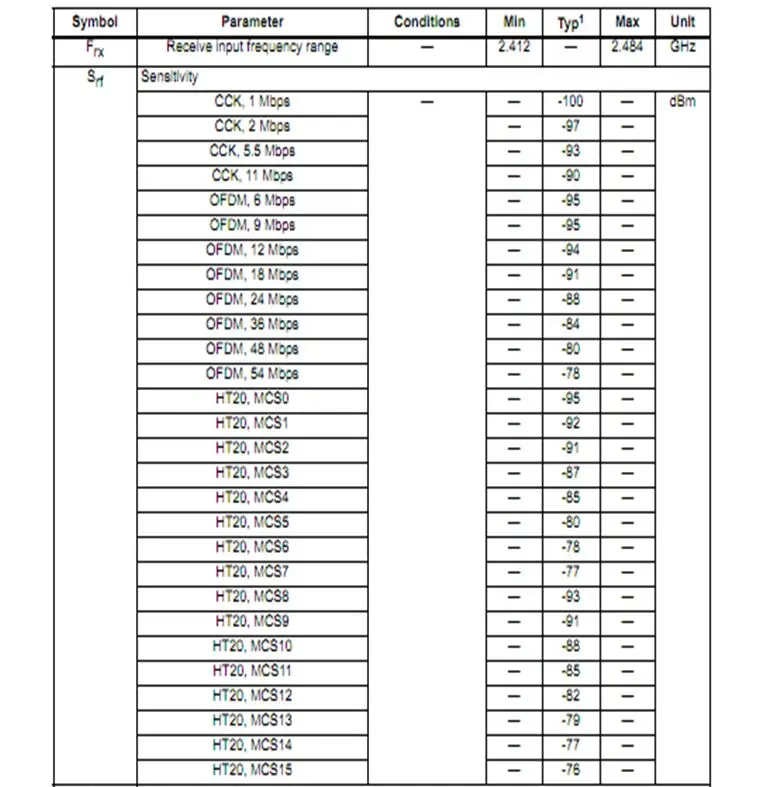

6. Receiver Characteristics(see Table 6-1):

Table 6-1 Receiver Characteristics for 2.4 GHz Dual Chain Operation.

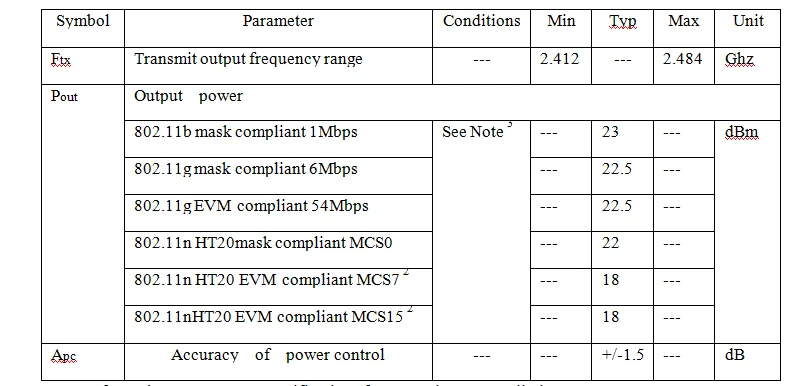

7.Transmitter Characteristics(see Table 7-1):

Table 7-1 Transmitter Characteristics for 2.4 GHz Per-Chain Operation.

1.Refer to the IEEE 802.11 specifications for transmit spectrum limits:
802.11b mask(18.4.7.3)
802.11g mask(19.5.4)
802.11g EVM(17.3.9.6.3)
802.11n HT20 mask (20.3.21.1)
802.11n HT20 EVM(20.3.21.7.3)
2.EVM measured using full packet channel estimation.
3.Measured at balun input.

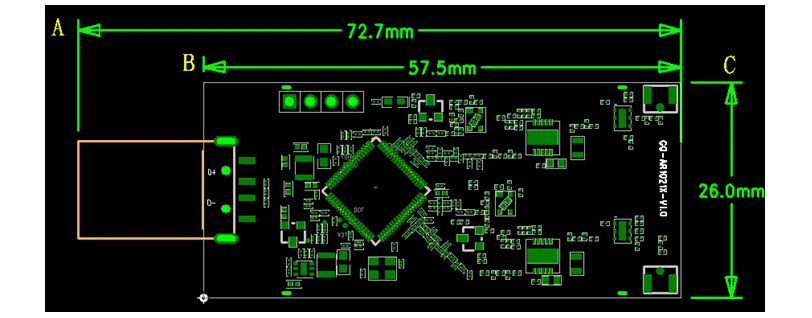

8.Physical Demensions(reference for mainboard design) (see Figure 8-1):

A:The length of the module
B:The length of the PCB board
C:The width of the module

Packing & Delivery

packing details:plastic tray or other

delivery details: 20-25 working days

Our Company

Shenzhen Gainstrong Technology Ltd. is a professional manufacturer for Network communication products ,including wifi Routers,wifi modules, Industial wifi equipment,smart home devices...and so on .The company was established on 2009 ,Our factory located in Shajing town ,Bao An District ,Shenzhen, China ,We are focus on ODM and OEM service to the customer all over the world with professional R&D team . Factory equipped with sophisticated manufacturing machines ,include 1 High-speed SMT production lines and 2 product-assembly lines, about 40 staff, Production capacity for wifi modules can be 2000pcs per day.
With professional mind, we are trying to offer the customer the most competive price ,quick lead time for delivery, strict quality inspection and intimate customer servervice. To satisfy customer perfectly,we are managing the safety ability and the design which combines the sensibility and technique , as well as the advanced equipment.

Certifications
FAQ

1.Are you a manufacturer of distributor or trading company?
    Manufacturer


2.Do you reable/reband product to our company name and logo?
    Yes, we accept OEM and ODM.


3.Do you redesign products/packing to suit our needs?
    Yes, we accept OEM/ODM.


4.Do you supply to the United States or Europe or Japan?
    Yes, we have certificate, like FCC for the United States,CE &ROHS for Europe and TELEC for Japan.


5.What is trhe average lead time (to shipping) for a typical order?
    7-10 days.
