Hot selling wifi module GS-POE01 MP4560

FOB Reference Price:Get Latest Price
$2.00 - $3.00 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland), Guangdong, China
Brand Name:
Oolite
Model Number:
GS-POE01, GS-POE01
Brand:
Oolite
Chipset:
MP4560
Imput Voltage:
48V
Size:
44.5mm * 20mm
Output Voltage:
5V
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
plastic tray or blister
Port
shenzhen
Lead Time :
20-25 working days
Product Description

       GS-POE01module usesMP4560chip and some other related components.The MP4560 isahigh frequency step-down switching regulator with integrated internal high-side high voltage power MOSFET.It provides 2A output with current mode control for fast loop response and easy compensation.The wide 4.5V to 55V input range accommodatesa variety of step-down applications,including those in automotive input environment.

     A 12µA shutdown mode supply current allows use in battery-powered applications.High power conversion efficiency over a wide load range is achieved by scaling down the switching frequency at light load condition to reduce the switching and gate driving losses. The frequency foldback helps prevent inductor current runaway during startup and thermal shutdown provides reliable, fault tolerant operation.By switching at 2MHz, the MP4560 is able to prevent EMI (Electromagnetic Interference) noise problems.
Detailed Images

Features:

Wide 4.5V to 55V Operating Input Range

250mΩ Internal Power MOSFET

Up to 2MHz Programmable Switching Frequency

120μAQuiescent Current

Ceramic Capacitor Stable

Internal Soft-Start

Up to 95% Efficiency

Output Adjustable from 0.8V to 52V

Available in 3x3 10-Pin QFN and SOIC8with Exposed Pad Packages

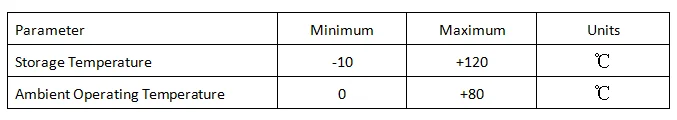

Temperature Limit Ratings:


Electrical Specifications:


Mechanical:


The picture of top:

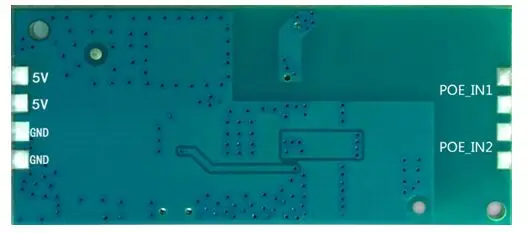

The picture of bottom:

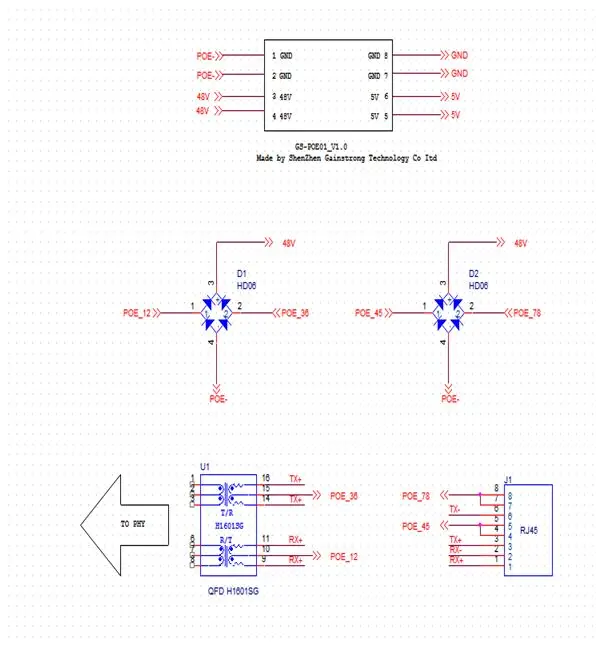

Module:

Company

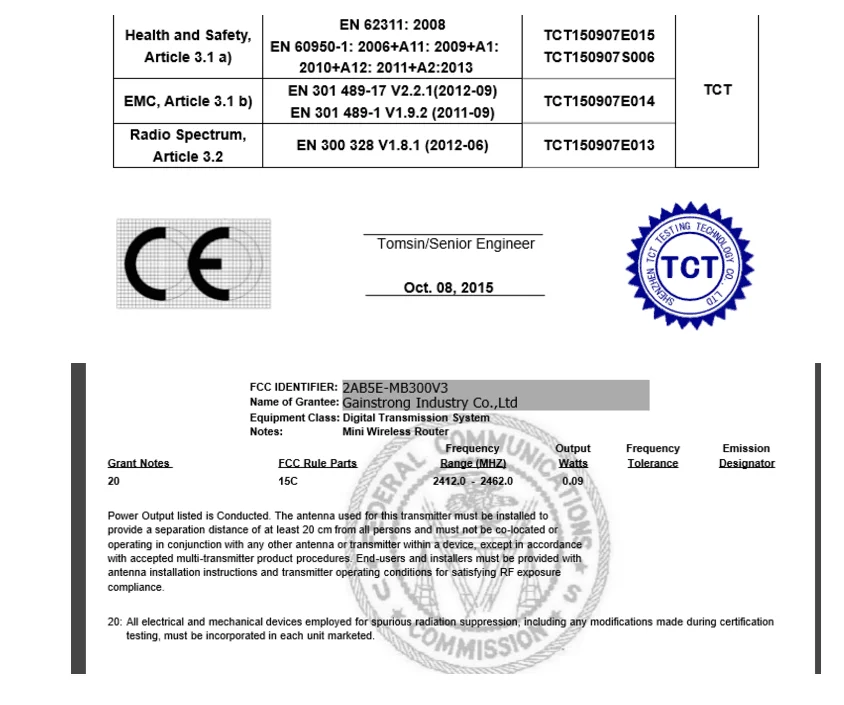

Certifications
