Wireless Router MINI BOX V2 MT7688

FOB Reference Price:Get Latest Price
$9.00 - $15.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
MiniBox V2.0(MT7688A), Mini Box V2
Brand Name:
Oolite
Place of Origin:
Guangdong, China, Guangdong, China
Chipset:
MT7688
Brand:
Oolite
RAM:
64Mbyte
ROM:
16M
Antenna:
Built-in smart antenna
Size:
64mm x 44.5mm x22.3mm(L x W x H)
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
plastic tray or blister
Port
shenzhen
Lead Time :
20-25 working days
Product Description

      The Minibox-V2.0 is an exquisite portable and small wireless router which designed for those who use


mobile devices like smart phone, PADs, notebook to surf the internet.The Router has 2 FE RJ45 ports

which support both wired connection and wireless connection at the same time.it allows users not only

able to share their internet by wired connection but also wireless connection.

The MINIBOX-V2.0 Wi-Fi link is a 1T1R 802.11b/g/n solution. The Wi-Fi link is highly integrated,

and includes an energy efficient on-board power amplifier and LNA. For the 2.4 GHz band, RF

switches are also integrated. The MINIBOX-V2.0 Wi-Fi link is optimized for low system cost, and

minimizes the number and cost of any components required to achieve a reliable Wi-Fi link.

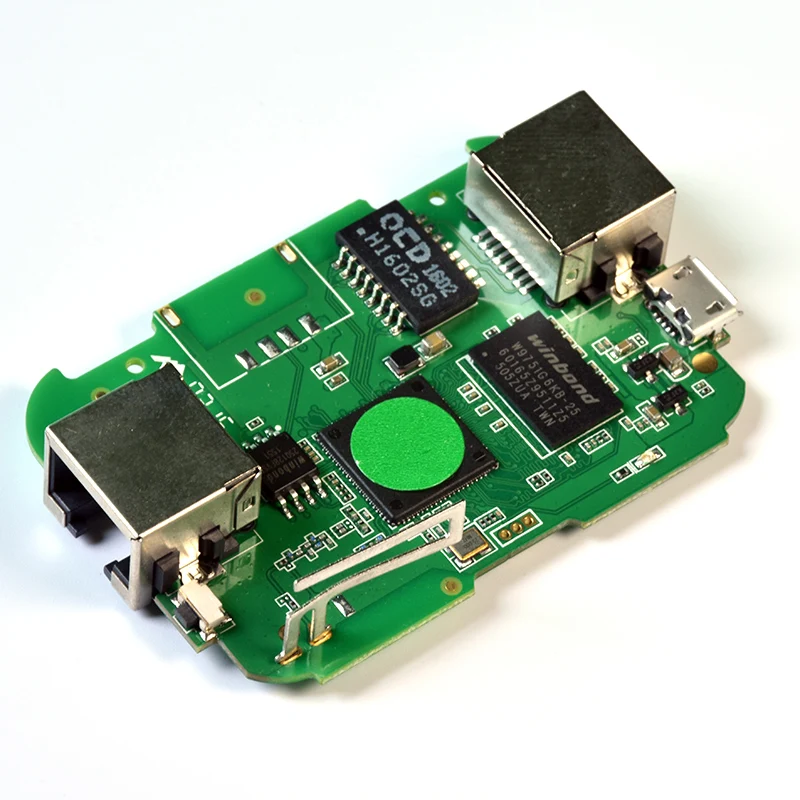

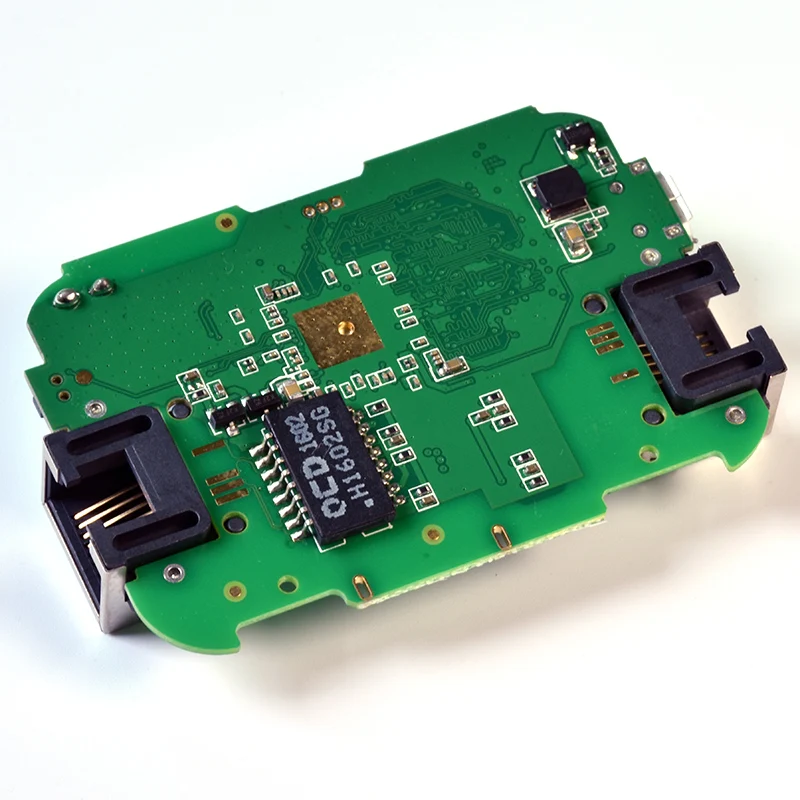

Detailed Images

1.Features:

Wi-Fi Link features:
IEEE 802.11n, Single Stream 1x1
 MT7688AN with 580 MHZ MIPS 24KEc
B/G/N 2.4 GHz
 Integrated PA, LNA
 Built-in smart omnidirectional antenna
Data rates up to 150 Mbps
Powered through a micro USB port by an external power adapter or connection to a computer
Supports WEP, WPA/WPA2,WPA-PSK/WPA2-PSK encryptions


System cost optimization:

Highly-Integrated Wi-Fi solution incorporating a single crystal, antenna, and the matching
components ,two 10/100Mbps port,1USB port,1Reset Button,1Micro USB(5V/0.5A Input)
 Integrated IPv4/IPv6 TCP/IP Stack
 Integrated Network services such as HTTP, DNS, FTP
DDR2:64MB
Flash:16M/8MB optional

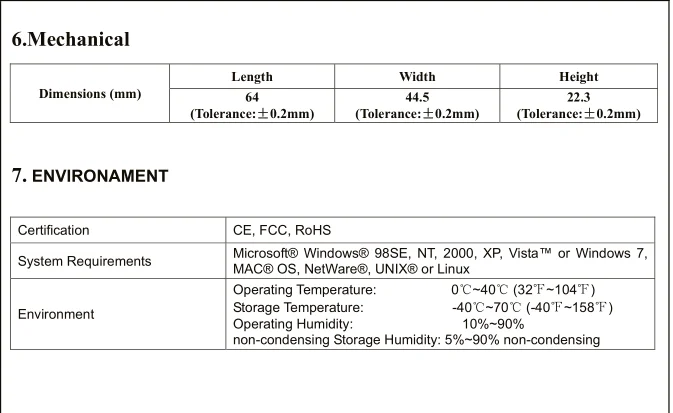

Dimensions: 64mm x 44.5mm x22.3mm(L x W x H)

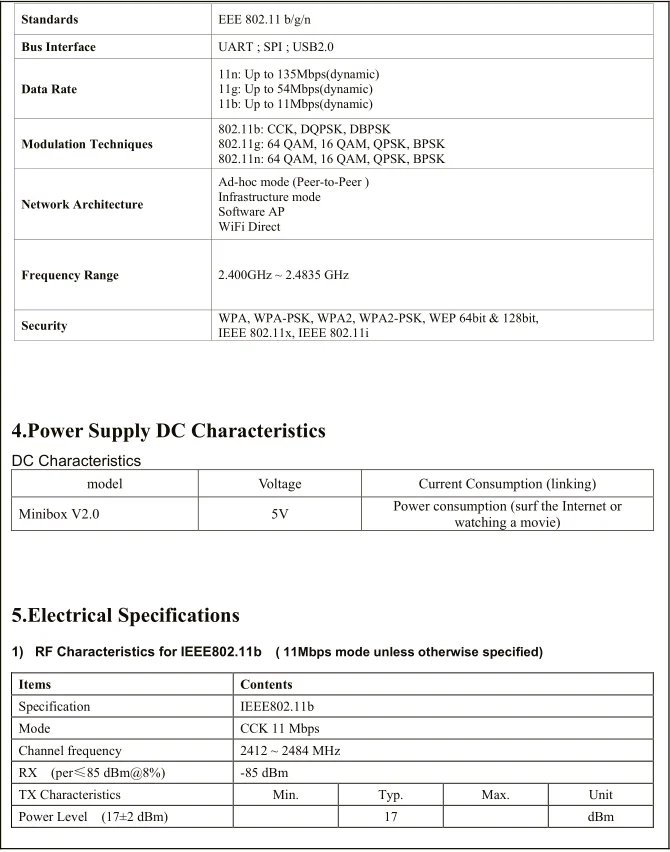

2.Specification:

Main chipset :WiFi Single Chip: MT7688A
Functional Specifications
