GS-PQB21 chipset AR9582 or AR9580 WIFI core module

FOB Reference Price:Get Latest Price
$12.20 - $23.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
GS-PQB20
Brand Name:
Oolite
Place of Origin:
Guangdong, China
Chipset:
AR9582/AR9580
product size:
29.8*47.6MM
Frequency Range:
2.412 GHz ~ 2.484 GHz , 5.18 GHz ~ 5.825 GHz
brand name:
Oolite
Data Rate:
802.11g/802.11n/802.11b
Power supply voltage:
3.3V
Operating Channel:
WiFi 2.4GHz
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
30pcs/tray, 300pcs/package
Port
shenzhen
Lead Time :
20-25 working days
Product Description

GS-PQB21 chipset AR9582 or AR9580 WIFI core module

The Qualcomm Atheros AR9582 is a highly integrated single-chip solution for 2.4 or 5 GHz
802.11n wireless local area networks (WLANs) that enables high-performance 2x2 MIMO with 2
Spatial Streams for wireless applications demanding the highest robust link quality and maximum
throughput and range. The AR9582 integrates a multi-protocol MAC, baseband processor, analogto-
digital/digital-to-analog converters (ADC/DAC), 2x2 MIMO radio transceivers, and PCI
Express interface in an all-CMOS device for low power consumption and small form-factor
applications.
The AR9582 implements half-duplex OFDM, CCK, and DSSS baseband process, supporting up to
150 Mbps for 20 MHz and 300 Mbps for 40 MHz channel operations, and IEEE 802.11a/b/g
data rates. Additional features include Maximal Likelihood (ML) decoding, Low-Density Parity
Check (LDPC), Maximal Ratio Combining (MRC), Tx Beamforming (TxBF), Space Time Block
Code (STBC), and On-Chip One-Time Programmable (OTP) memory. The AR9582 supports
802.11 wireless MAC protocol, 802.11i security, Rx/Tx filtering, error recovery, and 802.11e
quality of service (QoS).
The AR9582 supports up to two simultaneous traffic streams integrating two Tx and two Rx
chains for high throughput and extended coverage. Tx chains combine baseband in-phase (I) and
quadrature (Q) signals, convert them to the desired frequency, and drive the RF signal to multiple
antennas. Rx chains use an integrated architecture. The frequency synthesizer supports 1-MHz
steps to match frequencies defined by IEEE 802.11a/b/g/n specifications.
The AR9582 supports frame data transfer to and from the host using a PCIE interface providing
interrupt generation and reporting, power save, and status reporting. Other external interfaces
include EEPROM.

Features:

 Dynamic frequency selection (DFS) in required 5-GHz bands when used as an AP
2x2 MIMO technology improves effective throughput and range over existing
802.11a/b/g products
Supports spatial multiplexing, cyclic-delay diversity (CDD), low-density parity check
(LDPC), maximal ratio combining (MRC), Space Time Block Code (STBC), and
Tx Beamforming (TxBF)
Smart antenna diversity
 Single-ended RF ports with integrated matching simplify board design and layout
 Integrated 1.2 V switching regulator
Data rates of up to 150Mbps for 20 MHz channels and 300 Mbps for 40 MHz channels
using reduced (short) guard interval
On-Chip One-Time Programmable memory
Support for IEEE 802.11e, h, and i standards
WEP, TKIP, AES, and WAPI hardware encryption
PCI Express 1.1 interfac
20 and 40 MHz channelization
High Tx power accuracy at lower power level
8 bits spectral analysis resolution
Frame aggregation, block ACK
802.11e-compatible bursting
Support for 2/3/4/6-wire BT coexistence

Products Details
1.Main chipset :WiFi Single Chip: Atheros AR9582
Functional Specifications
Main chipset
AR9582
Standards
WiFi: EEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a
Bus Interface
WiFi: Mini PCIE
Data Rate
802.11b: 11, 5.5, 2, 1 Mbps
802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n: MCS 0 to 7 for HT20MHz ;MCS 0 to 7 for HT40MHz
Modulation Techniques
802.11b(DSSS) : CCK, DQPSK, DBPSK
802.11 g (OFDM) : 64 QAM, 256 QAM, QPSK, BPSK
Operating Channel
WiFi 2.4GHz:
11: (Ch. 1-11) – United States
13: (Ch. 1-13) – Europe
14: (Ch. 1-14) – Japan
Frequency Range
2.412 GHz ~ 2.484 GHz , 5.18 GHz ~ 5.825 GHz
Security
WPA, WPA-PSK, WPA2, WPA2-PSK, WEP 64bit &
128bit,WMM, IEEE 802.11e, IEEE 802.11i
OS supported
Linux

2.Temperature Limit Ratings

Parameter
Minimum
Maximum
Units
Storage Temperature
-40
+85
Ambient Operating Temperature
0
60
Junction Temperature
0
125

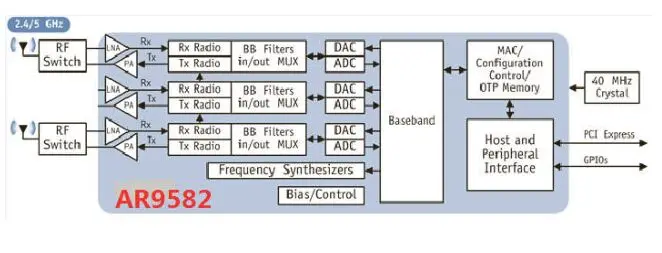

3.Diagram
 Dual-Band (2x2) Solution with Single Antenna

4.Electrical Characteristics

Symbol
Parameter
Minimum
Typical
Maximum
Units
WLA_VD33_PA,WLA_VD33_PAD,WLG_VD33_PAD,WL_VD33_SYN,VD33IO,SW_HV3,V33USB,VD33A
3.3V I/O and RFAFE
Supply Voltage
3.2
3.3
3.4
V
WLG_VD12_RTX,VD12D,WL_VD12_SYN,VD12A,VD12D_WL, VD12D_HCI
1.2V Core and
RFAFE
Supply Voltage
1.21
1.28
1.34
V

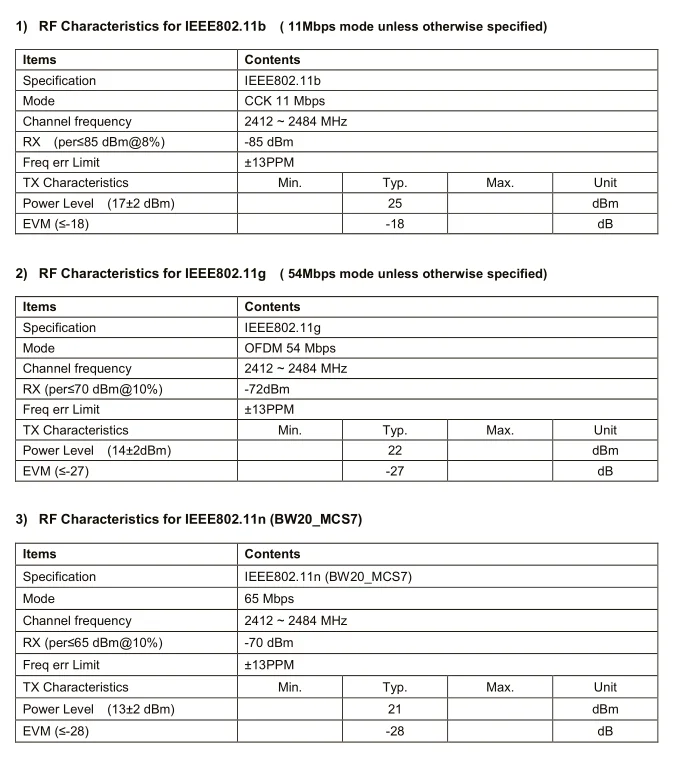

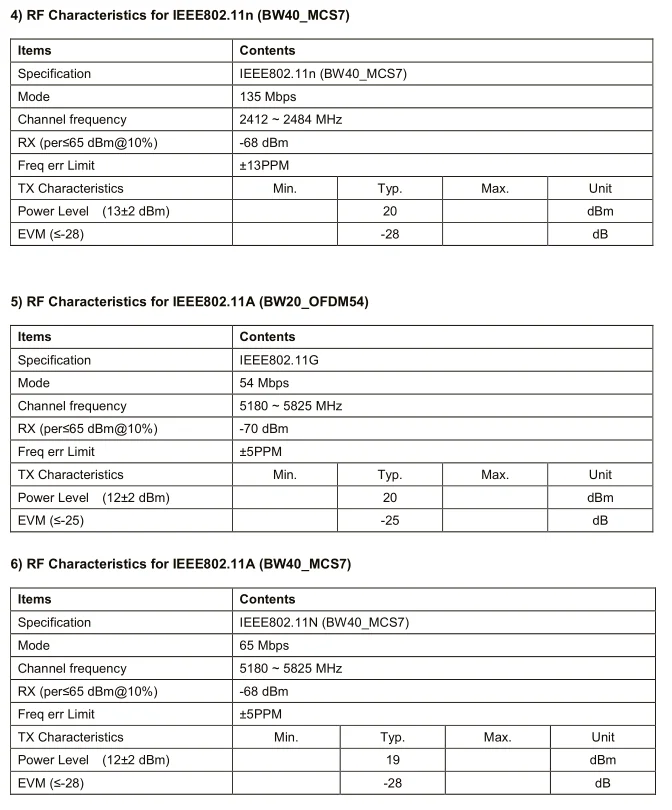

5.Electrical Specifications

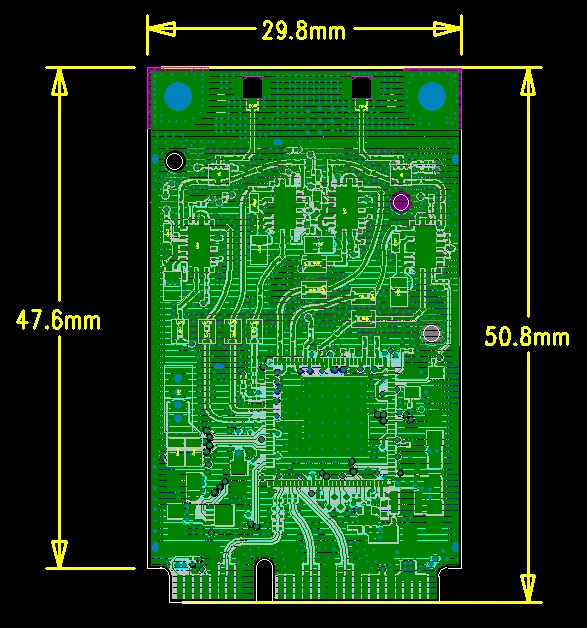

6.Mechanical

Packing & Delivery

packing details:plastic tray or other

delivery details: 20-25 working days
