Chinese supply Dualband ceiling AP Wifi Routerwith plasma case

FOB Reference Price:Get Latest Price
  • 1 - 19 Pieces
    $19.80
  • 20 - 99 Pieces
    $18.60
  • >=100 Pieces
    $17.60
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Model Number:
Ceiling AP V1.0
Brand Name:
Oolite
Place of Origin:
Guangdong, China
Model Numbe:
Ceiling AP V1.0
chipset:
QCA9531
RAM:
128Mbyte
ROM:
16MByte
Interface:
1*WAN,1*LAN,1*DC-12V,1*Button,2*network led,3*custom LED
Wireless speed:
300Mbps
CPU frequency:
650MHz
Antenna:
2*3dbm
Power:
DC 9~48V/2A~0.5A
Compatible:
1*WAN,1*LAN,1*DC-12V,1* 2.4G IEEE 802.11b/g/n
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
plastic tray or blister
Port
shenzhen
Lead Time :
15-25workingdays
Product Description
Chinese supply Dualband ceiling AP Wifi Routerwith plasma case
1.Introduction
Ceiling AP-V1.0 is based on Qualcomm Atheros QCA9531 chip. It’s up to 650mhz processor and support expand 5G WiFi orusb 3G/4G modem. Embedding 128MB RAM and 16MB ROM makes it quick launch wireless scenarios . Integrated high power PA and LNA , transmission distance is upgrade to farther.Ceiling AP-V1.0 can bepowered by PoE (802.3at/802.3af/Passive POE) or DC (9-48V)
Ceiling AP-V1.0 not only has a good reception sensitivity and high transmission power, greatly expand the scope of wireless coverage ,but also beautiful appearance, convenient installation, suitable for ceiling, wall and desktop set. With special ceiling mount design ,Ceiling AP-V1.0 is not only space-saving, but also gives you full WiFi experience free from all obstacles. Besides, it'sperfect match between the shell and the ceiling. Ceiling AP-V1.0is an ideal network solution for companies, hotels and other public places to extend WiFi range.

2. FUNCTIONS

Compatible with 2.4G IEEE 802.11b/g/n
Compatible MiniPci-e 5G IEEE 802.11a/b/g/n/ac card
Wireless speed up to 300 Mbps
Supports POE(802.3at/802.3af/Passive POE) power supply
Compatible DC 9-48V/2A~0.5A power supply
Support SSID based access user number restriction
Compatible with usb interface GSM/3G/4G modem.
Support MAC address filtering, IP address filtering, URL filtering, NAT forwarding rules.
Support for automatic adjustment of wireless transmission rate.
Practical and elegant ceiling mount design.

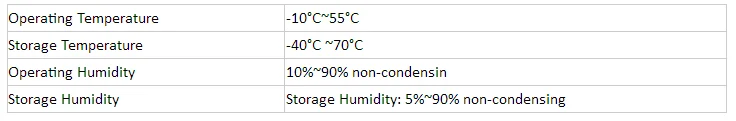

3.Environment

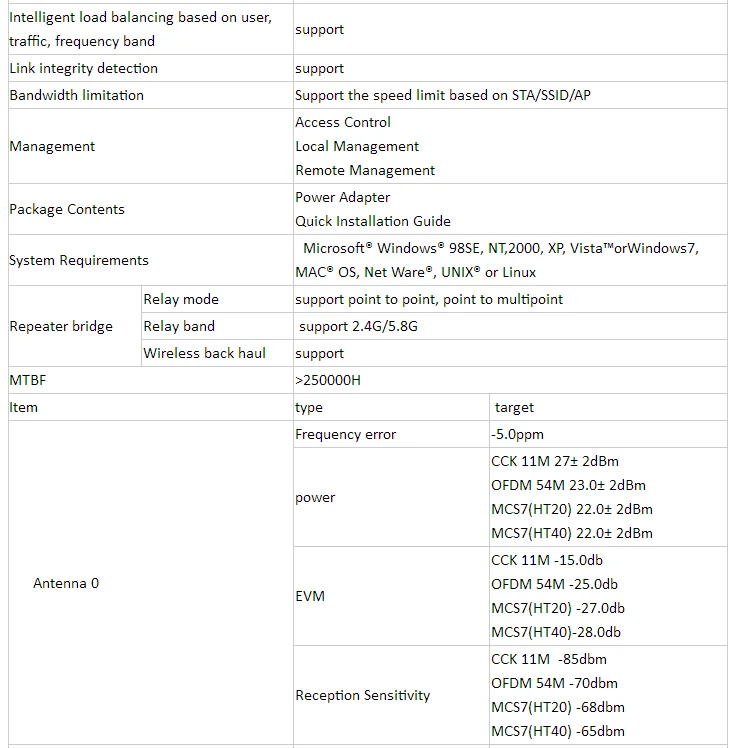

4.Specifications

5.Mechanical

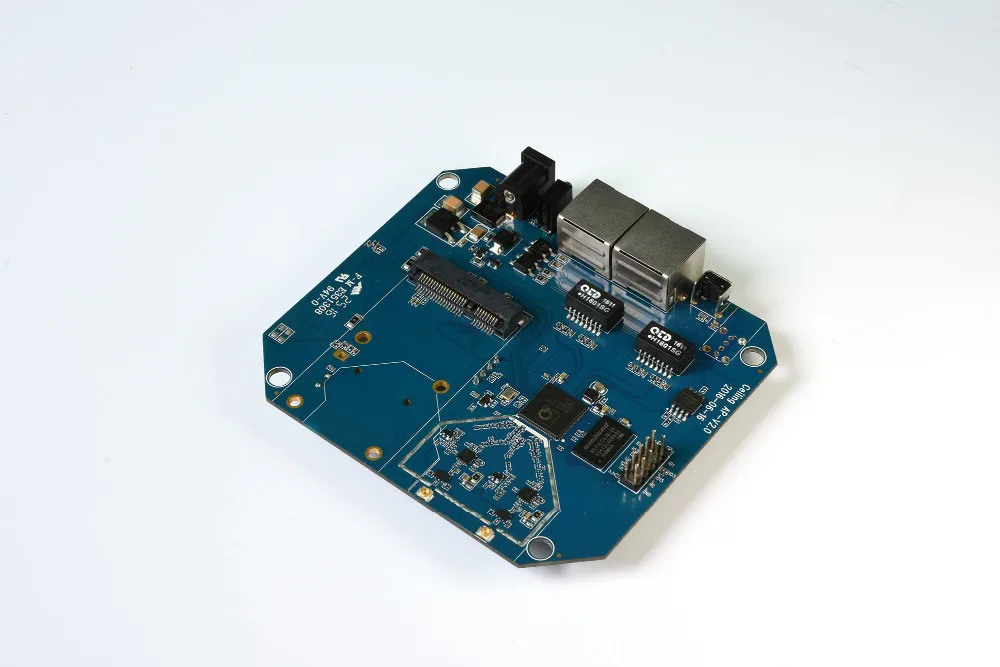

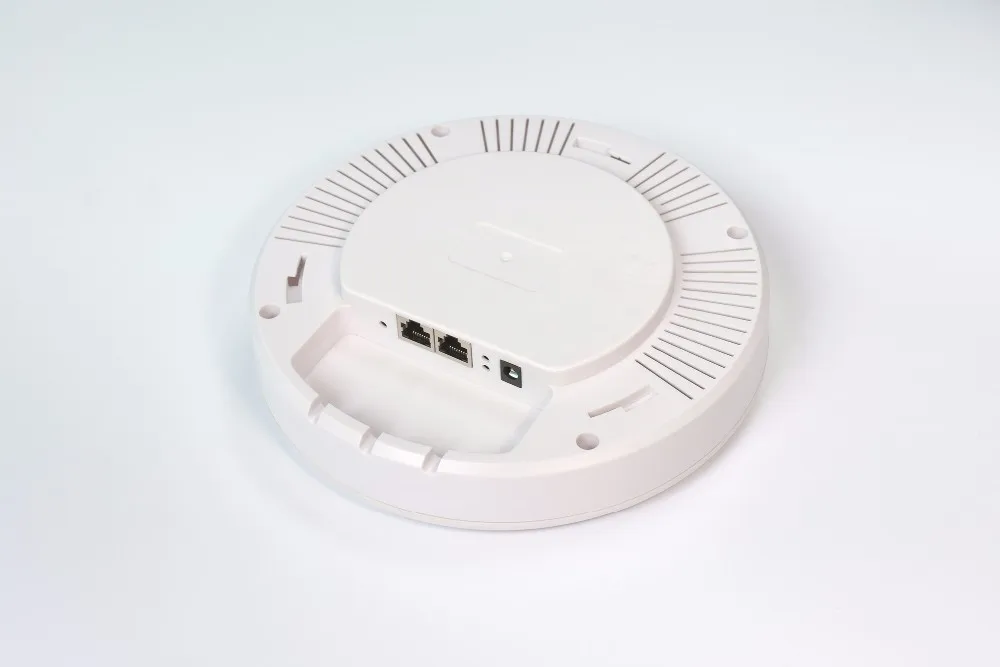

6.Photos

Our Company

Shenzhen Gainstrong Technology Ltd. is a professional manufacturer for Network communication products ,including wifi Routers,wifi modules, Industial wifi equipment,smart home devices...and so on . Established on 2009 ,Our factory located in Shajing town ,Bao An District ,Shenzhen, China ! Supporting ODM and OEM service to the customer all over the world with professional R&D team , We are focus on Qualcomm Atheros AR9XXX, QCA9XXX, IPQ, QCA40XX and MT76XX ,Allwinner, Intel x86 with wifi, lora, NB-iot, 3G/4G communication devices ODM/OEM.Usually for Industry application.

Our Service

We can flash customer firmware, ODM customer baseboard or redesign whole board, we can make sure device fit FCC,CE and so on. we can supply software design service

Certifications
Packing & Delivery

  Packing.in-wall 86 panel wireless access point router

  plastic tray or blister
Deliveryin-wall 86 panel wireless access point router

1) By DHL or Fedex express;
2)By sea to the main coastal city in your country;
3)By airmail or EMS;
4)Any other viable methods for delivery accepted by both parties.

FAQ

1.Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.

2.Do you accept PCBA orders only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.

3.Do you provide firmware support?
Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.

skype :bella(a)ioes.cn                                                                          email:bella(a)ioes.cn (qca9531
