usb sim dongle 4G portable wifi router travel wifi mini 3G modem USB lte wifi router

FOB Reference Price:Get Latest Price
$22.50 - $30.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Model Number:
GS-CPE9344D01
Brand Name:
Oolite
Place of Origin:
Guangdong, China
Model Numbe:
GS-CPE9344D01
chipset:
AR9344
RAM:
128Mbyte
Memory:
64MB DDR RAM
Flash:
8MB( May extend to 16 MB)
small wifi route Software:
openwrt
Antenna:
2T2R
Power:
12V/1A-24V/1A
Interface:
2*RJ-45 for 10/100 Mbps, 1 Reset button, 1 power DC Jack
ar9344:
ar9344
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
plastic tray or blister
Port
shenzhen
Lead Time :
20-25workingdays
Contact Us
Product Description

usb sim dongle 4G portable wifi router travel wifi mini 3G modem USB lte wifi router

1. Introduction
GS-CP9344D01 is dedicated to long distance wireless network solutions,it features 14dBi high gain antenna dual polarization with high output power and high RX sensitivity can significantly extend the transmission range up to 1km-3km to deliver a more stable wireless connection and reduce the expense of equipment,It’s designed to deliver high reliability under harsh outdoor environment. Built-in advanced multi-functions provide flexibility in constructing scalable WiFi networks for all possible applications.
GS-CP9344D01 offers bandwidth up to 300Mbps to accommodate heavy traffic services such as multimedia streaming. Establishing backbone network using 802.11a/n ensures stability and reduces interference since 802.11b/g instructure run rampant till now
GS-CP9344D01 provides seven operation modes for multiple users to access internet: AP/Gateway/WISP /WDS Bridge/ WDS Repeater/Client Bridge. Featuring passive power over Ethernet function is easy to deploy, To protect wireless connectivity,GS-CP9344D01 encrypt wireless tranmissions through 64/128-bit WEP data encryption and also supports WPA/WPA2.The MAC address filter make you select exactly which stations should have access to your network.In addition,the User Isolation function can protect the private network between client and users.

2.Features

- 2T2R,5.8GHz only
- Data Rate up to 300Mbps
- Signal Strength display(4 levels)
- Multiple SSID up to 4
- QoS:Traffic Control & WMM
- Transmitting power and distance control(ACK Timeout)

-High output transmission power and receiving sensitivity optimized
- Support PTP and PTMP(Point to Multi-point)
- Multi-operation mode :AP/Gateway/ WISP(CR)/WDS /Client Bridge
- WPA2/WPA/AES/TKIP,SSH and 802.1x Authenticator
- MAC & IP Address and URL Filter
- Traffic statistics based port
- Build-in WatchDog Timer
- Supports Ping Watch Dog and Wireless Speed Test
- Built-in NAT and DHCP server supporting Address Reservation
- Supports UPnP, Dynamic DNS, Static Routing

- Supports PPPoE, Dynamic IP, Static IP Internet Access
- 2 x LAN(10/100Mbps)FE
- Web-based Administration Manager
- IP65 outdoor Weather-proof housing
- 10dBi dual-polarized antenna to build long distance Wi-Fi connection
- Passive POE(24V input) for flexible deployment
- Emergency Recovery Push button Provide a self-aid page for users in case of firmware upgrade failure

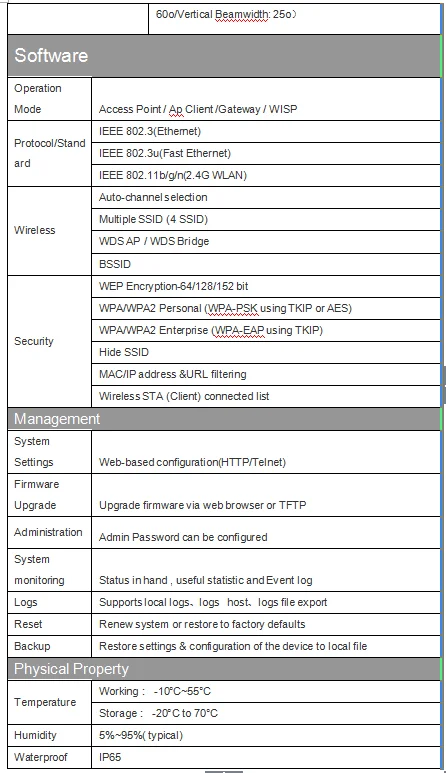

3. Specification


Our Company


Shenzhen Gainstrong Technology Ltd. is a professional manufacturer for Network communication products ,including wifi Routers,wifi modules, Industial wifi equipment,smart home devices...and so on .The company was established on 2009 ,Our factory located in Shajing town ,Bao An District ,Shenzhen, China ,We are focus on ODM and OEM service to the customer all over the world with professional R&D team . Factory equipped with sophisticated manufacturing machines ,include 1 High-speed SMT production lines and 2 product-assembly lines, about 40 staff, Production capacity for wifi modules can be 2000pcs per day.

We are focus on Qualcomm Atheros AR9XXX, QCA9XXX, IPQ, QCA40XX and MT76XX ,Allwinner, Intel x86 with wifi, lora, NB-iot, 3G/4G communication devices ODM/OEM.Usually for Industry application.

Our Service

We can flash customer firmware, ODM customer baseboard or redesign whole board, we can make sure device fit FCC,CE and so on. we can supply software design service

Certifications
Packing & Delivery

Packing.
usb sim dongle 4G portable wifi router travel wifi mini 3G modem USB lte wifi router   plastic tray or blister
Delivery

usb sim dongle 4G portable wifi router travel wifi mini 3G modem USB lte wifi router

1) By DHL or Fedex express;
2)By sea to the main coastal city in your country;
3)By airmail or EMS;
4)Any other viable methods for delivery accepted by both parties.

FAQ

1.Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.

2.Do you accept PCBA orders only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.

3.Do you provide firmware support?
Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
