AR9331 Router 2.4GHz 4g lte wifi router wifi module

FOB Reference Price:Get Latest Price
$6.40 - $15.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Model Number:
Oolite V1.0
Brand Name:
Oolite
Place of Origin:
Guangdong, China
chipse:
AR9331 400Mhz MIPS core
Wireless speed:
135Mbps
RAM:
64M DDR2 RAM
Flash:
16M SPI flash (4/8/32m option)
Port:
1WAN and 1LAN 10/100Mbps network interface
Antenna:
built-in PCB /IPX external antenna
Memory:
4G eMMC
VCC:
3.3V
size:
27.5 * 51.4MM +- 0.1mm
Board Power:
0.36W
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
plastic tray or blister
Port
shenzhen
Lead Time :
15-20 working days after payment
Product Description

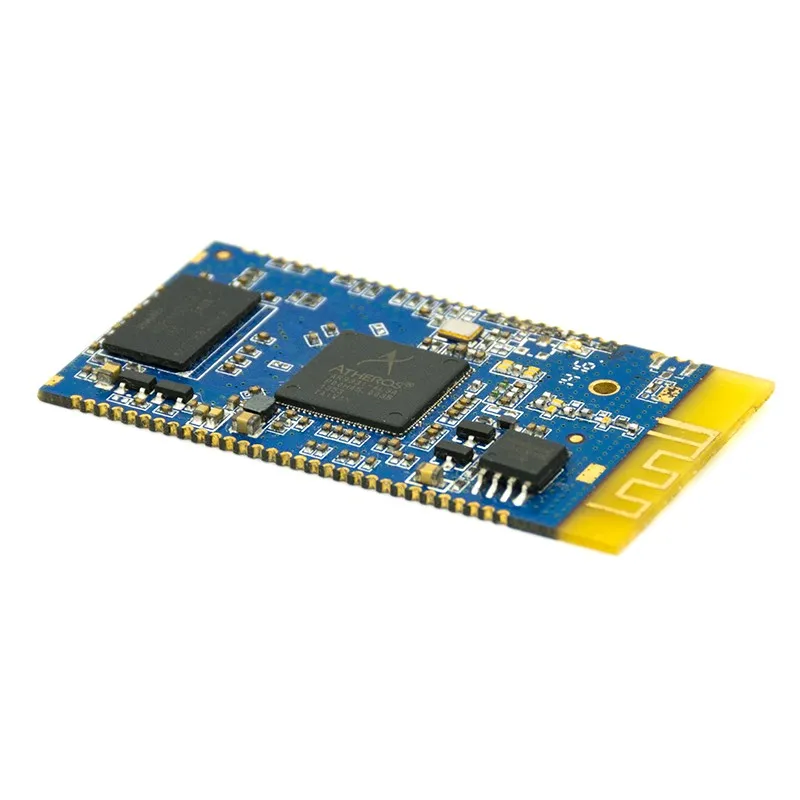

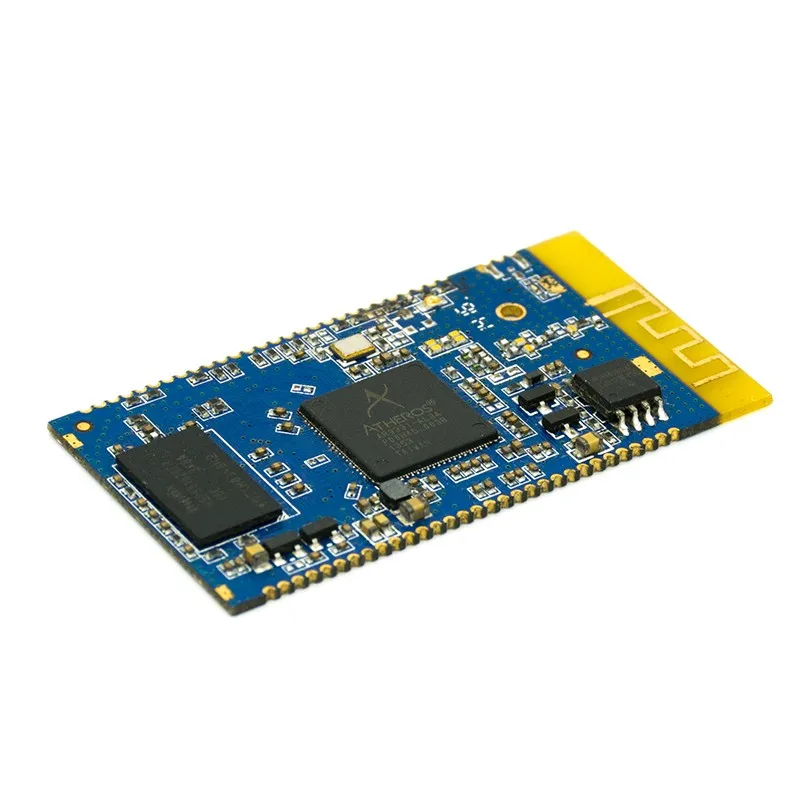

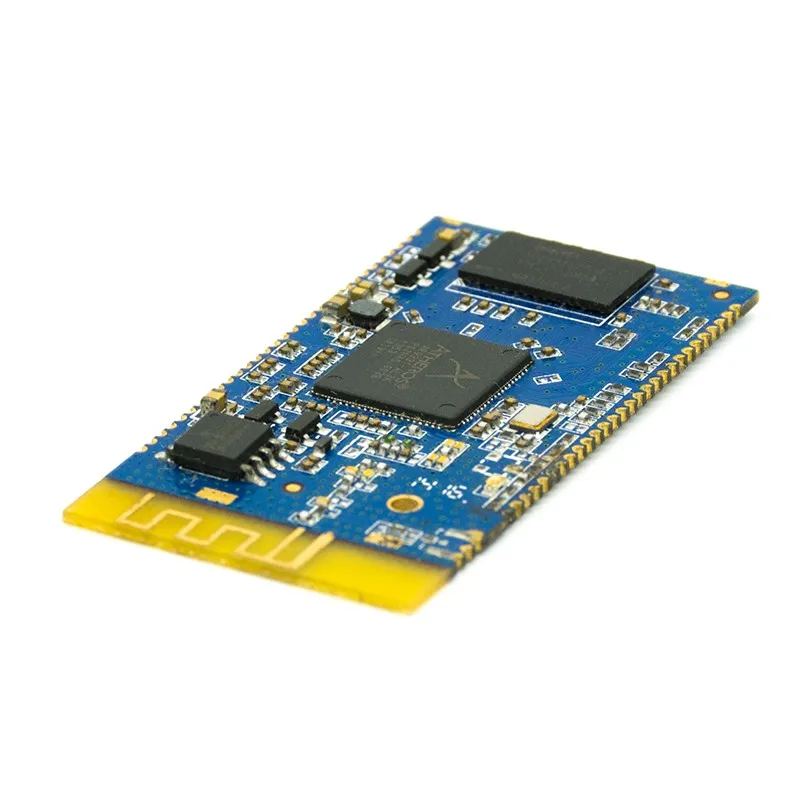

AR9331 Router 2.4GHz 4g lte wifi router wifi module

Oolite V1 power is very low, working alone, only 0.4W, suitable for battery products, it has a 150M wireless transmission rate, up to 21 gpios.All can be defined for input or output. it's design for wifi hard disk, WiFi router, remote monitoring, remote video, Industrial control DIY amd so on.
Oolite V1 is a highly integrated wireless router module. It is not only a wireless module, it is a complete router, only energized, it can work in a wireless AP module, if coupled with a network transformer and RJ45 network port, it’s a whole wireless router.
Characteristics:
CPU: AR9331 400Mhz MIPS core
RAM: 64M DDR2 RAM
Flash: 16M SPI flash (4/8/32m option)
Wireless speed: 135Mbps
General GPIO: 21 (except TX, RX)
USB: Usb 2.0 master interface, support USB hub extension
Power supply voltage: 3.3V.
Port: 1WAN and 1LAN 10/100Mbps network interface
Antenna: the built-in PCB /IPX external antenna.
Debug: serial debugging interface has been out.
Board Power: 0.36W
Product size: 27.5 * 51.4MM +- 0.1mm
SPI interface pin out.

Packing & Delivery
Packaging Details
white box or other
Shipping Deta
shipped in 7 days after payment
Delivery Detail
six work days
Our Company

our company

Location: Guangdong,China(Mailand)
Year Established: 2011
Business Type: Manufaturer
Total Annual Revenue: US$1 Million-US$2.5 Million
Our company is a professional manufacturer based on producing and processing wireless router, wireless communication module, mini WiFi module, mini box WiFi router products and so on.We have a complete, scientific quality management system and company's good faith is recognized by the industry. Welcome all friends to visit, guidance and business negotiation.

Our Service

We can flash customer firmware, ODM and OEM are both supported, we can make sure device fit FCC,Cso on. we can supply software design service .

FAQ

1.Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.
2.Do you accept PCBA orders only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
3.Do you provide firmware support?
Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
