pocket wifi router module openwrt 7628an

FOB Reference Price:Get Latest Price
$5.00 - $15.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Model Number:
OOlite V4.0
Brand Name:
Oolite
Place of Origin:
Guangdong, China
Model Numbe:
Oolite V4.0
chipset:
MT7628AN
CPU frequency:
580MHZ
RAM:
1Gbit DDR2
Wireless speed:
150Mbps
ROM:
128Mbit SPI NOR Flash ROM
Firmware:
Linux 2.6 SDK, OpenWRT
Antenna:
IPeX
Port:
WAN +PCIE interface
size:
45.3mm * 27.2mm(±0.1mm)
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
plastic tray or blister
Port
shenzhen
Lead Time :
20-25 woking days
Product Description

pocket wifi router module openwrt 7628an

General Description
This Module use MT7628AN as Soc, has a IPX ANTA seat for alternative.What is more,we lead out all function and I/O ports for expand.
The MT7628AN integrated a 2T2R 802.11n WiFi radio,a 580 MHZ MIPS 24KEc CPU,1port fast Ethernet PHY,USB2.0 host,PCIe,SD-XC,I2S/PCM and multi slow IOs.MT7628AN provide two operrtion modes-IoT gateway mode and IoT device mode.In IoT gateway mode,the PCI Express interface can connect to 802.11ac chipset for 11ac dule-band concurrent gateway.The high performance USB2.0 allows MT7628an to add 3G/LTE modem support or add a H.264 ISP for wireless IP camera.For the IoT device mode,MT7628AN supports eMMC,SD-XC and USB2.0. MT7628AN can support the WiFi high quality audio via 192Kbps/24bits I2S interface and
VoIP application through PCM. In IoT device mode,it further supports PWM,SPI slave,3rd UART and more GPIOs.For IoT gateway,it can connect to touch panel and BLE,Zigbee/Z-Wave and sub-1G RF for smart home control.
1.Characteristics:
CPU                                                                     MT7628AN with 580 MHZ MIPS 24KEc
RAM                                                                     1Gbit DDR2 RAM
Flash                                                                   128Mbit SPI NOR Flash ROM
Wireless speed                                                150Mbps
GPIO                                                                     37
                                                                                High-speed UART for console support
USB                                                                      Usb 2.0 master interface, support USB hub extension
Power  supply voltage                                  3.3V
Port                                                                       WAN +PCIE interface
Antenna                                                              IPeX external antenna
Debug                                                                   serial debugging interface has lead out
Product size                                                       45.3mm * 27.2mm(±0.1mm)

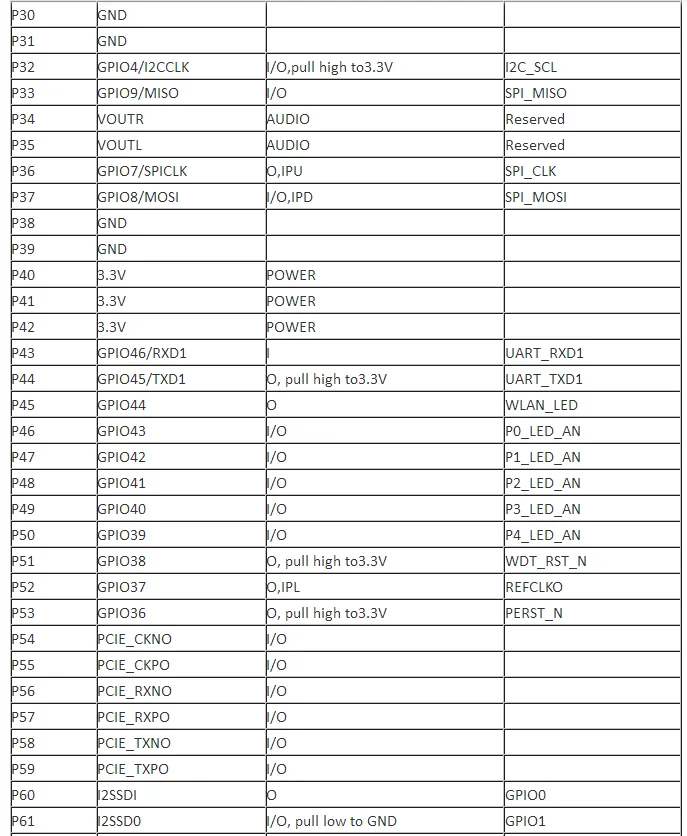

2.Pins distribute:

NOTE:
I:Input
O:Ouput
I/O:Bi-directional
IPL:Internal pull low
A:Analog
5.RF hardware performance

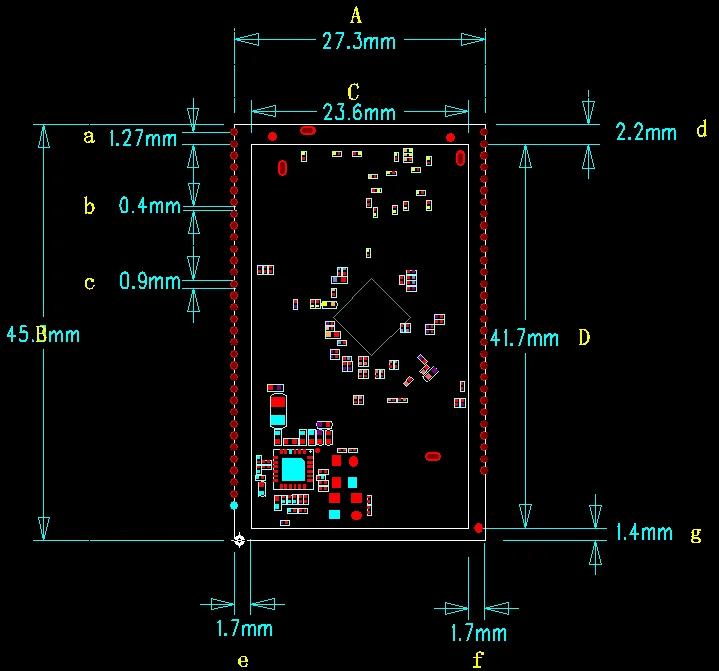

6.Physical Demensions(reference for mainboard design):

A:The width of the module
B:the length of the module
C:the width of outline shoule hollow out on mainboard
D:the length of outline shoudle hollow out on mainboard
a: The distance between the pad on the module
b: the space between two pads
c: the width of the pad on the module
d,e,f,g:The distance between the outline of hollow out and outline of module

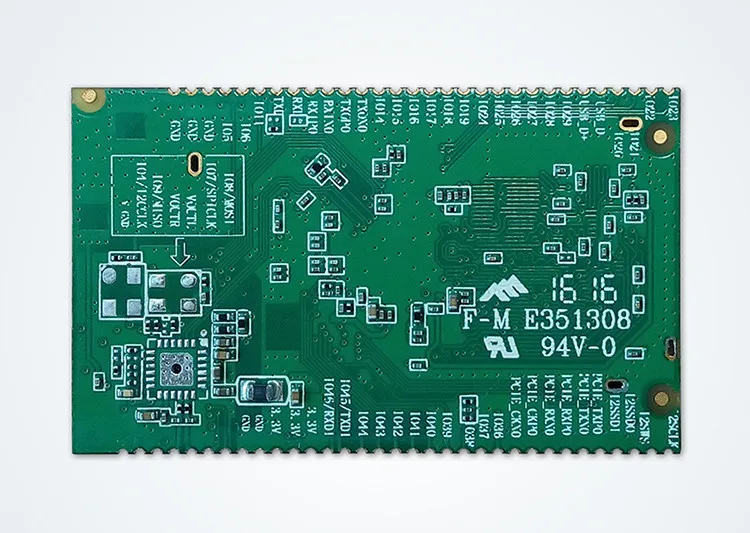

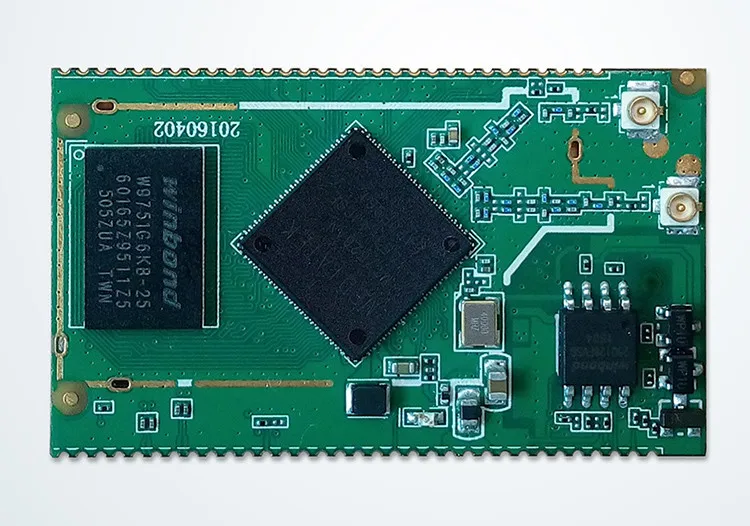

Product Picture
