PCIE Card 5G LTE GPS Modem Atheros AR9582

FOB Reference Price:Get Latest Price
$17.00 - $23.00 / Pieces | 500 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
GS-PQB21
Brand Name:
Oolite
Place of Origin:
Guangdong, China
Chipset:
AR9582/AR9580
VCC:
5V,3.3V
Interface:
MINIPCIE
Antenna:
U.FL*2
GPIO:
1
Wireless speed:
300Mbps
Band:
2.4g/2.4+5g
Frequency range:
2.412GHz-2.484GHz. 18GHz-5.825GHz
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
plastic tray or blister
Port
shenzhen
Lead Time :
Shipped in 6 days after payment
Product Description


smart car wifi router AR9582 PCIE module

1. General

The Qualcomm Atheros AR9582 is a highly integrated single-chip solution for 2.4 or 5 GHz
802.11n wireless local area networks (WLANs) that enables high-performance 2x2 MIMO with 2
Spatial Streams for wireless applications demanding the highest robust link quality and maximum
throughput and range. The AR9582 integrates a multi-protocol MAC, baseband processor, analogto-
digital/digital-to-analog converters (ADC/DAC), 2x2 MIMO radio transceivers, and PCI
Express interface in an all-CMOS device for low power consumption and small form-factor
applications.
The AR9582 implements half-duplex OFDM, CCK, and DSSS baseband process, supporting up to
150 Mbps for 20 MHz and 300 Mbps for 40 MHz channel operations, and IEEE 802.11a/b/g
data rates. Additional features include Maximal Likelihood (ML) decoding, Low-Density Parity
Check (LDPC), Maximal Ratio Combining (MRC), Tx Beamforming (TxBF), Space Time Block
Code (STBC), and On-Chip One-Time Programmable (OTP) memory. The AR9582
supports 802.11 wireless MAC protocol, 802.11i security, Rx/Tx filtering, error recovery, and 802.11e
quality of service (QoS).
The AR9582 supports up to two simultaneous traffic streams integrating two Tx and two Rx
chains for high throughput and extended coverage. Tx chains combine baseband in-phase (I) and
quadrature (Q) signals, convert them to the desired frequency, and drive the RF signal to multiple
antennas. Rx chains use an integrated architecture. The frequency synthesizer supports 1-MHz
steps to match frequencies defined by IEEE 802.11a/b/g/n specifications.
The AR9582 supports frame data transfer to and from the host using a PCIE interface providing
interrupt generation and reporting, power save, and status reporting. Other external interfaces
include EEPROM.

1.1 Features

n Dynamic frequency selection (DFS) in required 5-GHz bands when used as an AP
n 2x2 MIMO technology improves effective throughput and range over existing 802.11a/b/g products
n Supports spatial multiplexing, cyclic-delay diversity (CDD), low-density parity check (LDPC), maximal ratio combining (MRC), Space Time Block Code (STBC), and Tx Beamforming (TxBF)
n Smart antenna diversity
n Single-ended RF ports with integrated matching simplify board design and layout
n Integrated 1.2 V switching regulator
n Data rates of up to 150Mbps for 20 MHz channels and 300 Mbps for 40 MHz channels using reduced (short) guard interval
n On-Chip One-Time Programmable memory
n Support for IEEE 802.11e, h, and i standards
n WEP, TKIP, AES, and WAPI hardware encryption
n PCI Express 1.1 interface
n 20 and 40 MHz channelization
n High Tx power accuracy at lower power level
n 8 bits spectral analysis resolution
n Frame aggregation, block ACK
n 802.11e-compatible bursting
n Support for 2/3/4/6-wire BT coexistence

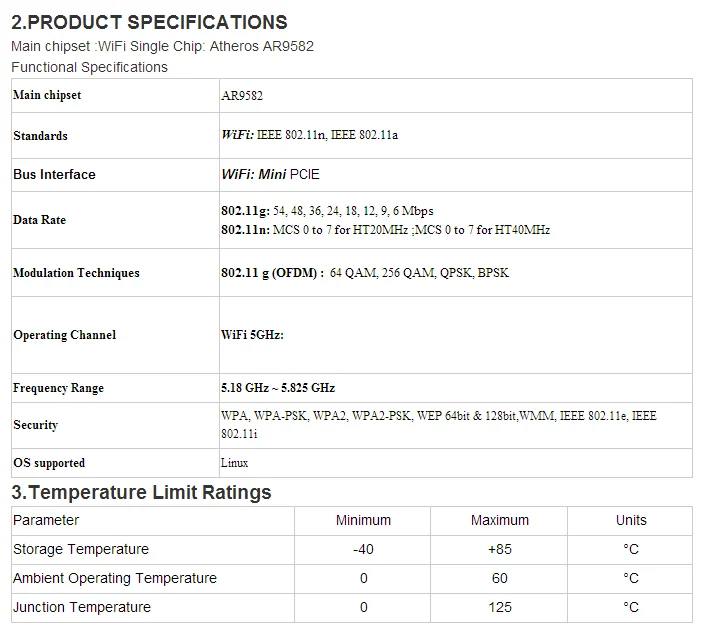

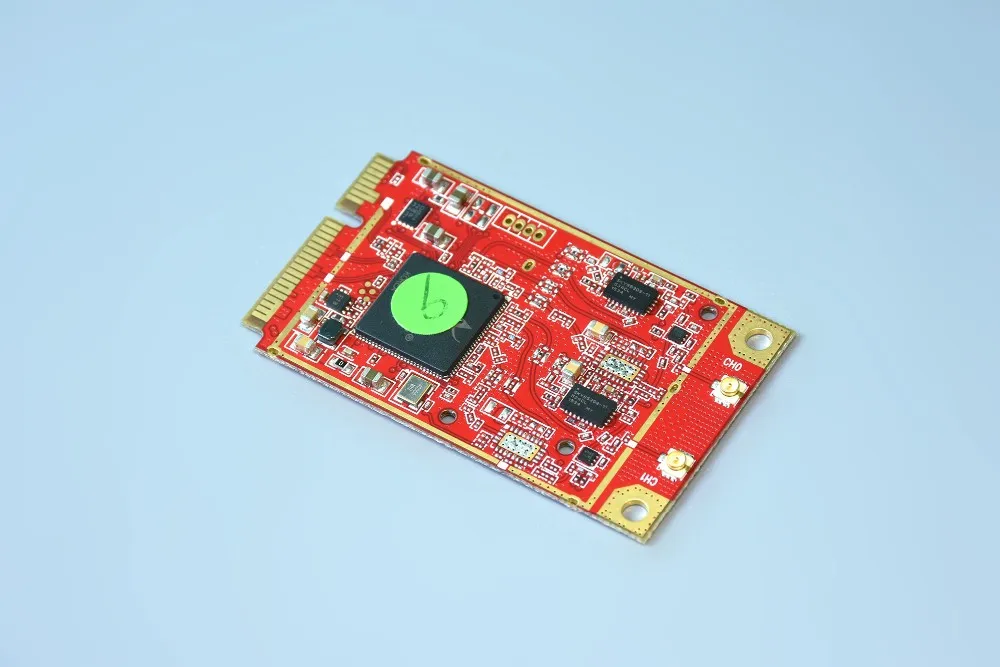

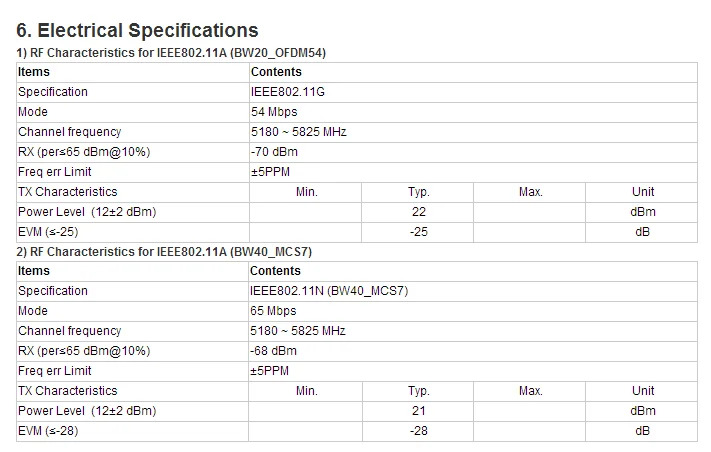

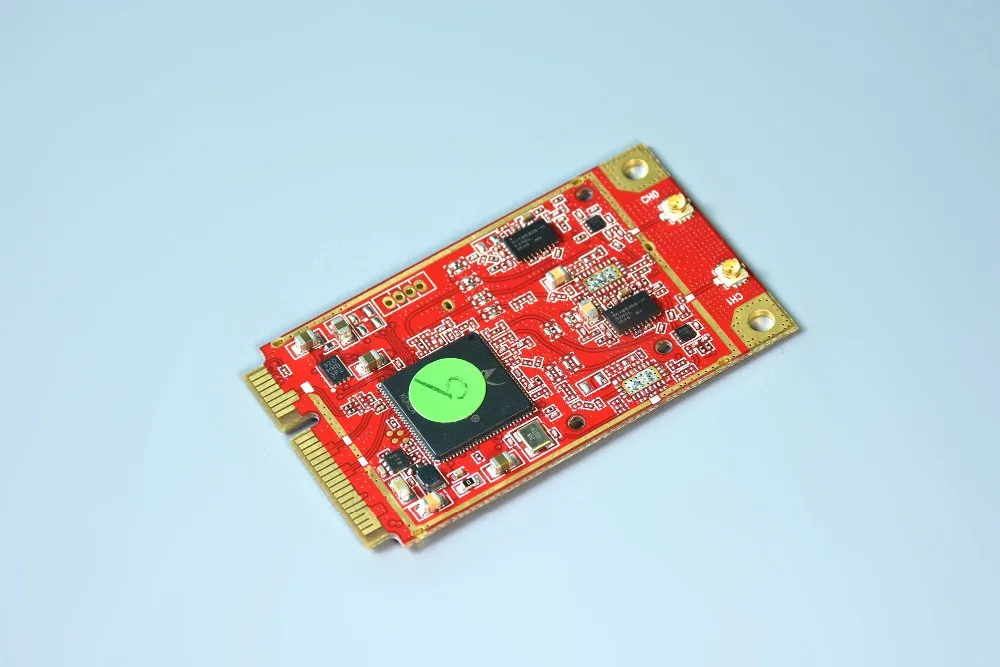

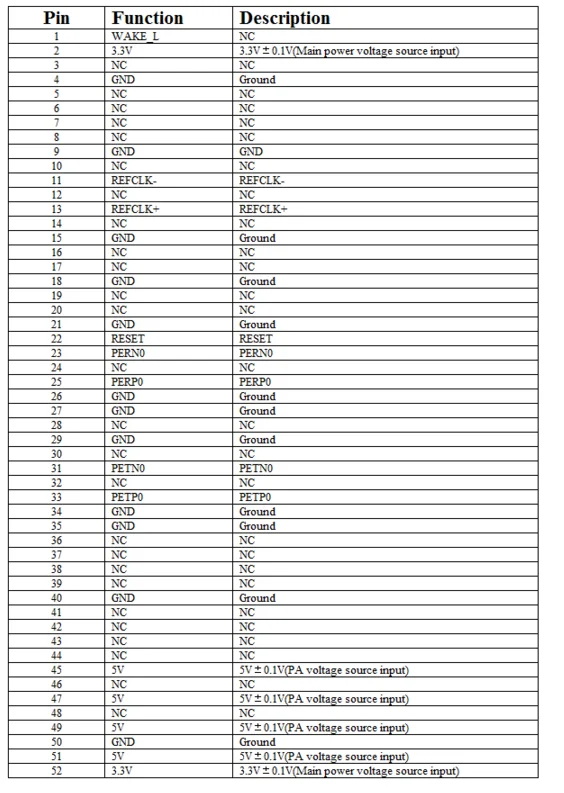

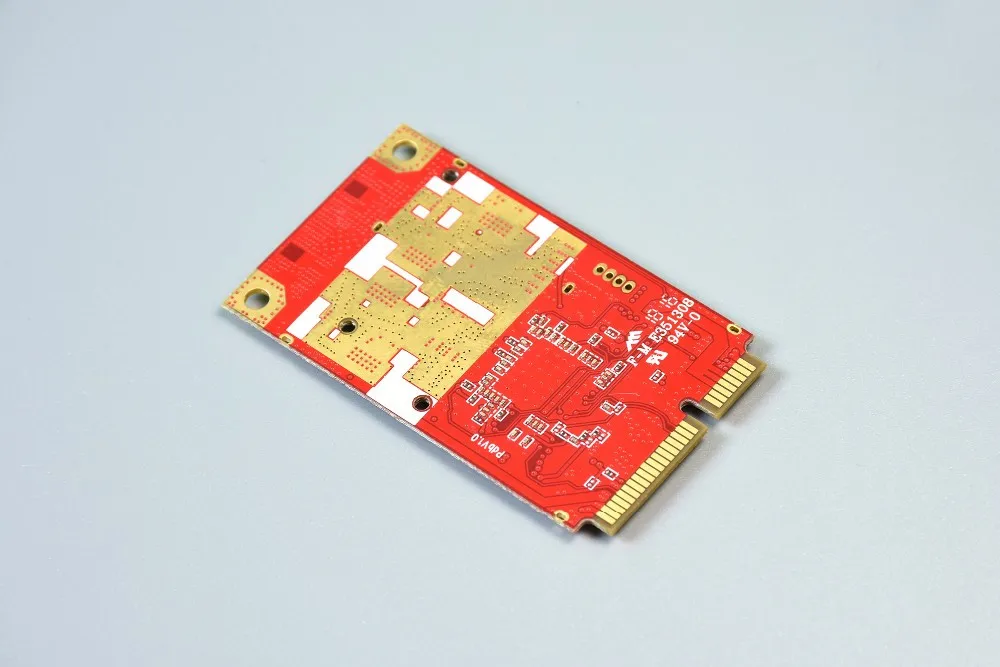

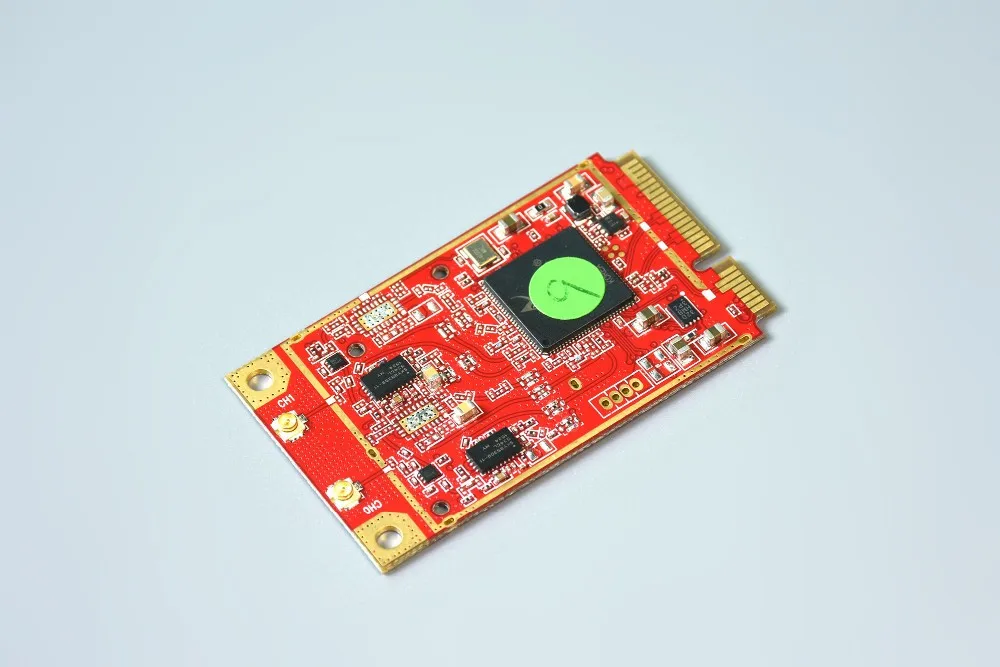

Product Images
Packing & Delivery

Plastic electrostatic prevention tray : 30pcs / tray. 900pcs / carton

Our Service

We can flash customer firmware, ODM customer baseboard or redesign whole board, we can make sure device fit FCC,CE and so on. we can supply software design service.

Our Company

We have ourself SMD lines(YG200,JUKI KE 2070 and so on). tester instrument(Litepoint IQFLEX,IQview,IQ201X,IQxel, Agilen spectrum analyzer). assembly lines and so on.

FAQ

This module sourcecode is open for everyone. our tech supporter should try our best to help all customers.
