Dual band support industrial router 192.168.0.1 wifi wireless router

FOB Reference Price:Get Latest Price
$6.00 - $12.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Oolite
Model Number:
Oolite V3.2S
Chipset:
MT7688AN
CPU frequency:
580/575 MHz
RAM:
128MB DDR2(64MB optional)
Wireless speed:
150Mbps (MT7628AN Wireless speed: 300Mbps)
ROM:
16MB SPI NOR Flash(8/16/32/64M option)
GPIO:
37
Antenna:
1 IPeX external antenna
Interface:
1 PCIE,1 WAN+4 LAN,1 USB
VCC:
3.3V
Size:
20*35mm
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
plastic tray or blister
Port
shenzhen
Product Description

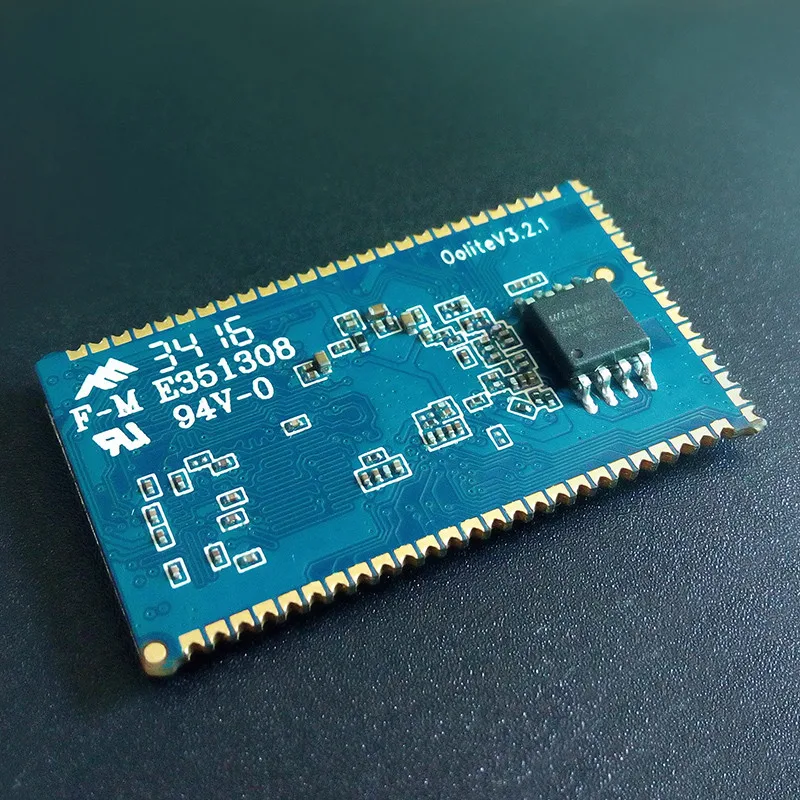

The Oolite V3.2 module can use the MT7688ANchipset or MT7628AN chipset.

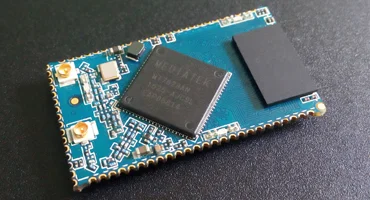

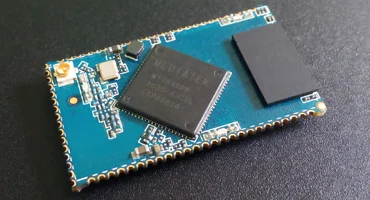

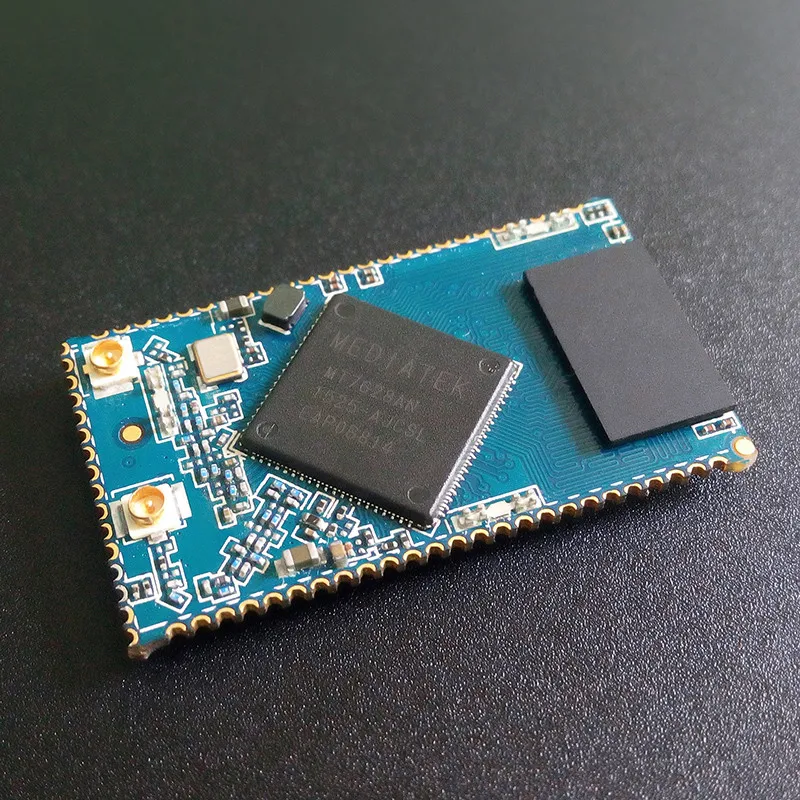

Oolite V3.2D

The Oolite V3.2D module use the MT7628AN chipset.The MT7628AN includes a high performance 580/575 MHz MIPS24KEc CPU core and high speed USB2.0/PCIeinterfaces, which is designed to enable a multitude of high performance, cost-effective IEEE 802.11napplications with a MediaTek WiFi client card.There are several masters (MIPS 24KEc, USB, PCI Express, SDXC, FE) in the MT7628 SoC on a high performance,low latency Rbus. In addition, the MT7628 SoC supports lower speed peripherals such as UART Lite, GPIO, I2Cand SPI via a low speed peripheral bus (Pbus). The DDR/DDR2 controller is the only bus slave on the Rbus. Itincludes an Advanced Memory Scheduler to arbitrate the requests from bus masters, enhancing theperformance of memory access intensive tasks.

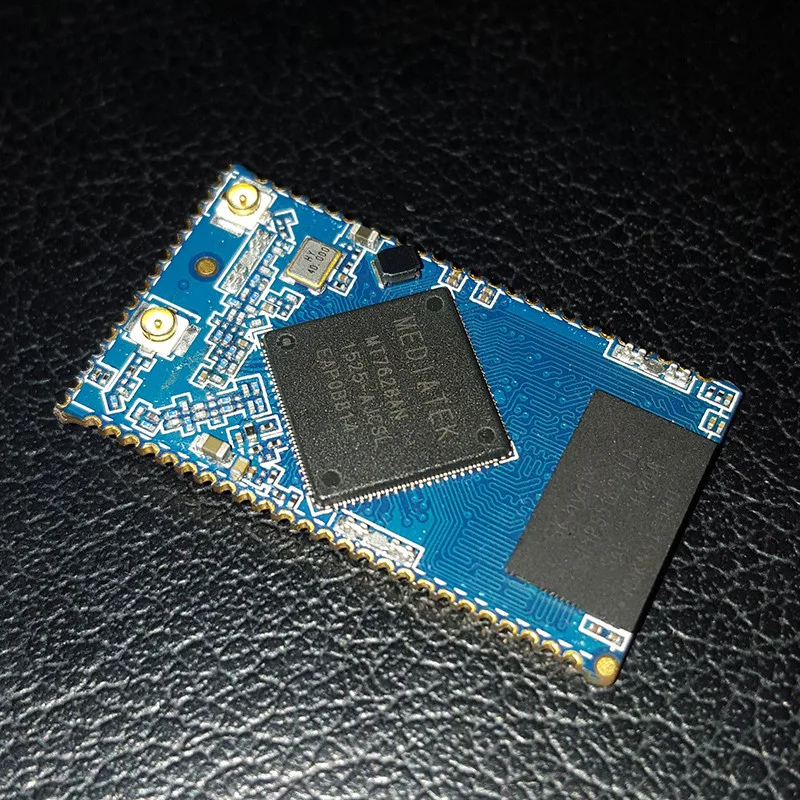

Oolite V3.2S

The Oolite V3.2S module use the MT7688AN chipset.The MT7688AN integrates a 1T1R 802.11n Wi-Fi radio, a 580MHz MIPS® 24KEc™ CPU, 1-port fast Ethernet PHY, USB2.0 host, PCIe, SD-XC, I2S/PCM and multiple slow IOs. The MT7688AN provides two operation modes – IoT gateway mode and IoT device mode. In IoT gateway mode, the PCI Express interface can connect to 802.11ac chipset for 11ac dual-band concurrent gateway. The high performance USB 2.0 allows the MT7688AN to add 3G/LTE modem support or add a H.264 ISP for wireless IP camera. For the IoT device mode, the MT7688AN supports eMMC, SD-XC and USB 2.0. The MT7688AN can support the WiFi high quality audio via 192Kbps/24bits I2S interface and VoIP application through PCM. In IoT device mode, it further supports PWM, SPI slave, 3rd UART and more GPIOs. For IoT gateway, it can connect to touch panel and BLE, Zigbee/Z-Wave and sub-1G RF for smart home control.

Dev Board

Products Details

1. Features

Oolite V3.2D

>> CPU: MT7628ANwith 580/575 MHz MIPS24KEc
>> RAM: 128MB DDR2 RAM (64MB optional)
>> Flash: 16MB SPI NOR Flash ROM(8/16/32/64M option)
>> Wireless speed: 300Mbps
>> GPIO:37(total), High-speed UART for console support
>> USB: Usb 2.0 master interface, support USB hub extension
>> Power supply voltage: 3.3V.
>> Port: 1×WAN+ 4×LAN ( IOT mode 1×port)
>> 1×PCIE interface
>> Antenna:2×IPeX external antenna.
>> Debug: serial debugging interface has lead out.
>> Supports 16 DMA channels and 32 bit address.
>> 8 channel QoS Arbiter with Configurable Bandwidth and Duedate for each agent.
>> Supports the Synchronous Inter-Integrated Circuits (I2C) serial protocol.
>> Supports up to 2 SPI master operations and Extends the addressable range from 24 bits to 32 bits for memory size
      larger than 128 Mb.


Oolite V3.2S

>> CPU: MT7688ANwith 580/575 MHz MIPS24KEc
>> RAM: 128MB DDR2 RAM (256MB optional)
>> Flash: 16MB SPI NOR Flash ROM(8/16/32/64M option)
>> Wireless speed: 150Mbps
>> GPIO:41(total), High-speed UART for console support
>> USB: Usb 2.0 master interface, support USB hub extension
>> Power supply voltage: 3.3V.
>> Port: 1×port (IOT Device Mode),1×WAN+ 4×LAN (IOT Gateway Mode),
>> 1×PCIE interface
>> Antenna:1×IPeX external antenna.
>> 20/40 MHz channel bandwidth
>> Supports Legacy 802.11b/g ,HT 802.11n and 802.11vmodes
>> SupportsWEP64/128, TKIP, AES, WPA, WPA2, WAPI
>> Green AP/STA
      —Intelligent Clock Scaling (exclusive)
      —DDRII: ODT off, Self-refresh mode
>> iPA/iLNA and ePA/eLNA
>> Embedded PMU

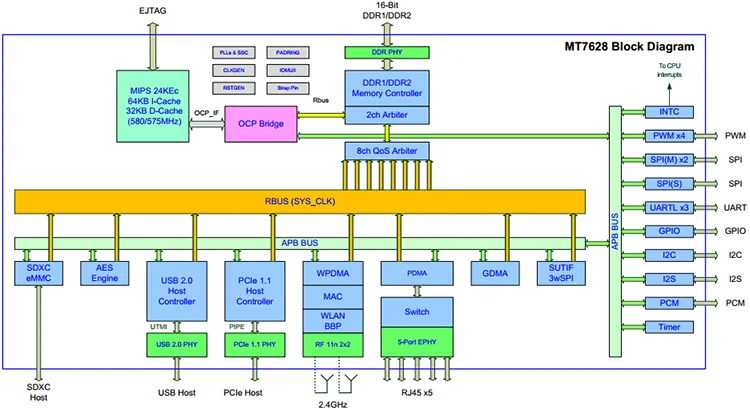

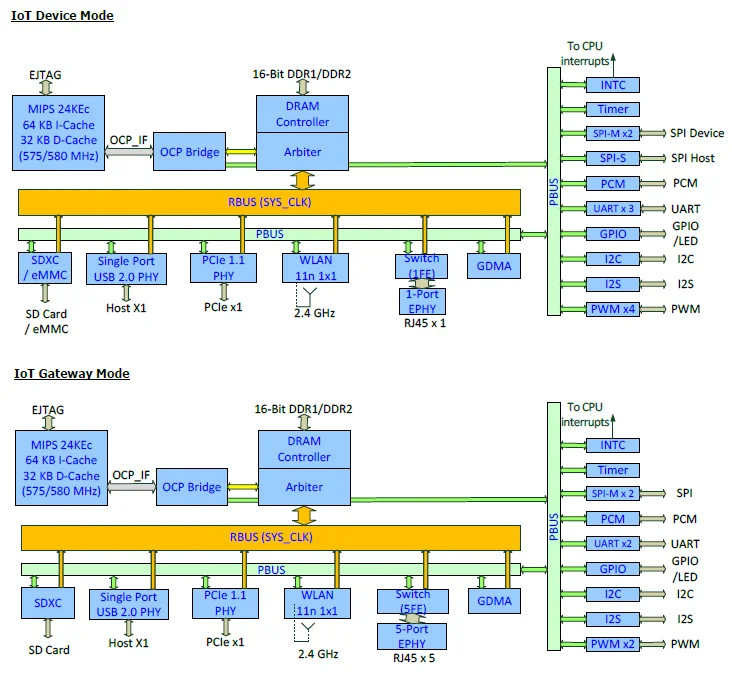

2. FUNCTIONAL BLOCK DIAGRAM

Oolite V3.2D:

Oolite V3.2S:

Oolite V3.2D

Oolite V3.2S

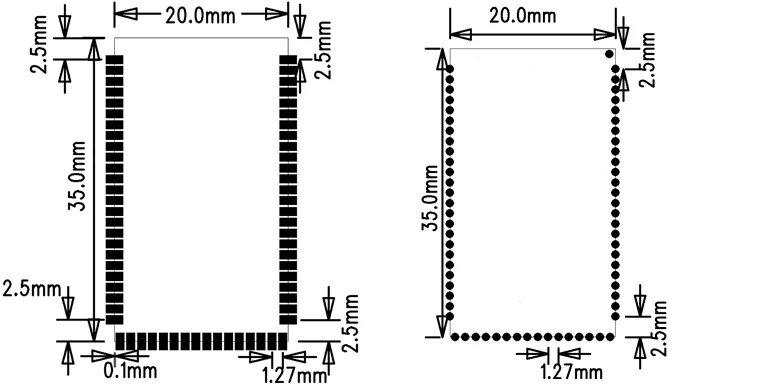

3. MECHANICAL

Dimensions (mm)
Length
Width
Height (without shield)
35.0
(Tolerance:±0.2mm)
20.0
(Tolerance:±0.2mm)
1.0
(Tolerance:±0.2mm)

Oolite V3.2D and Oolite V3.2S are the same

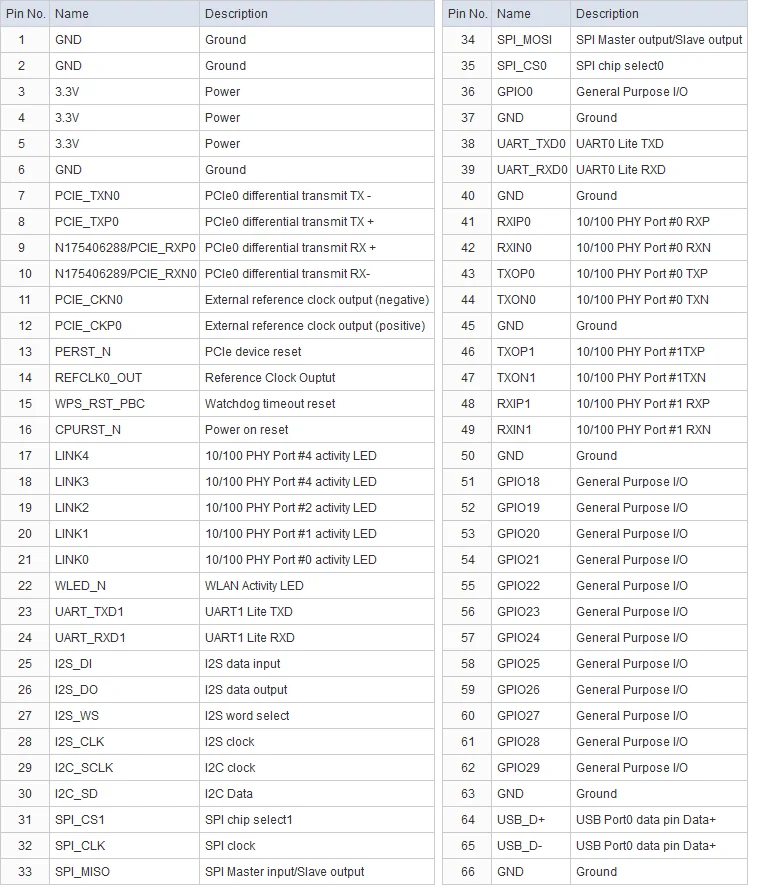

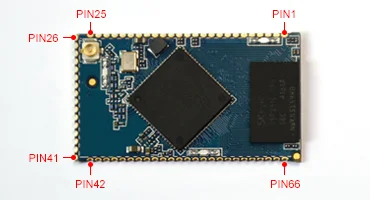

4. PINS DESCRIPTIO

NOTE
I
Input
O
Ouput
I/O
Bi-directional
IPL
Internal pull low
A
Analog
Absolute Maximum Ratings
I/O supply voltage:                       3.3V
Input,Output,or I/O Voltage:    GND-0.3 V to Vcc +0.3V

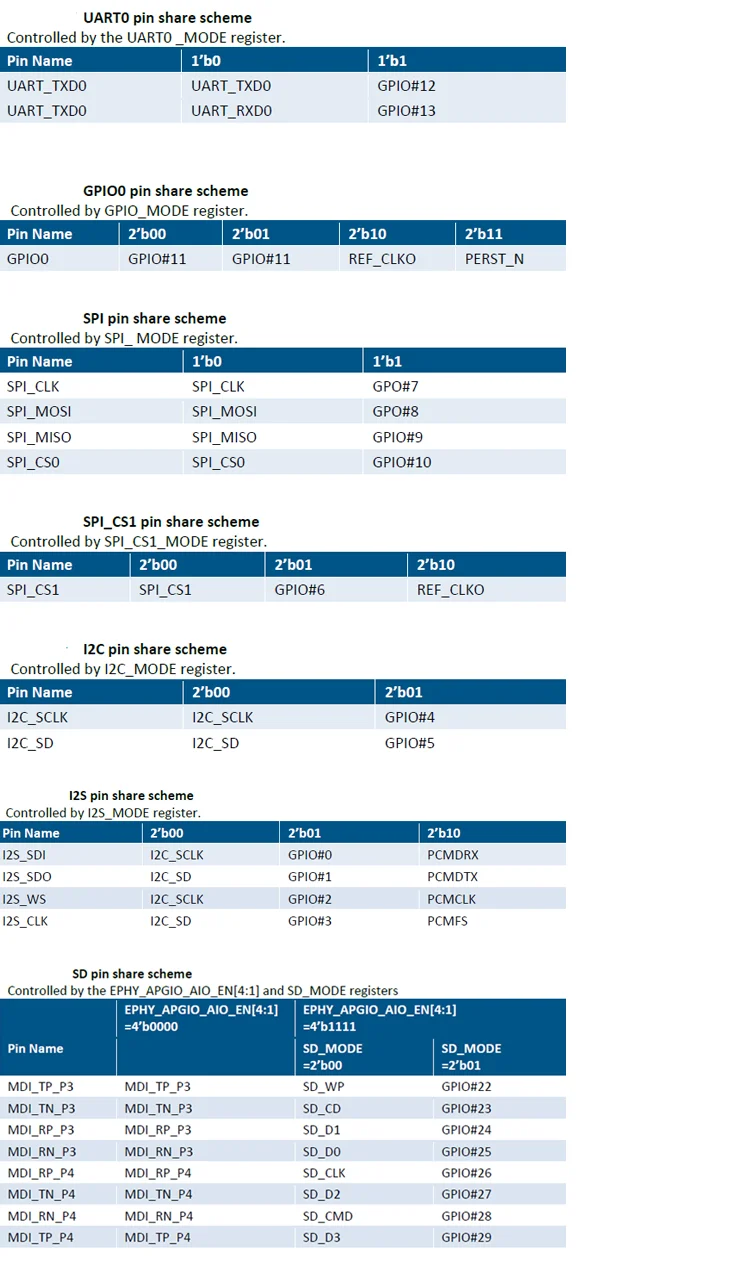

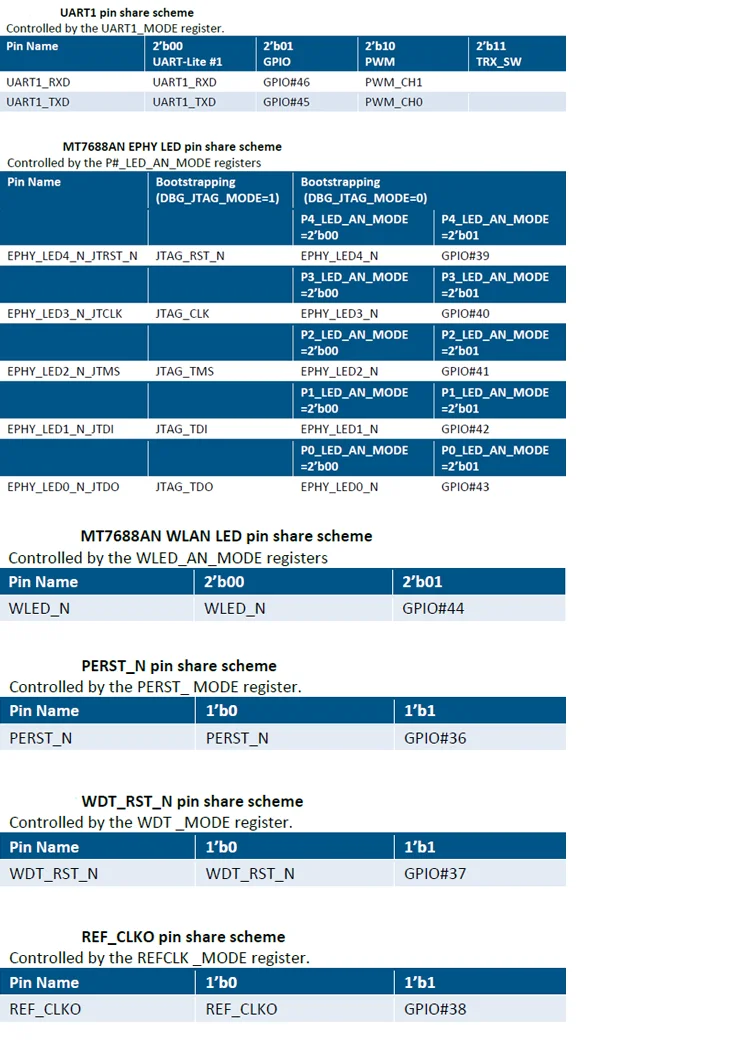

5. PIN SHARE SCHEME

Oolite V3.2D and Oolite V3.2S are the same

6. MODULE OTHER CONTENT

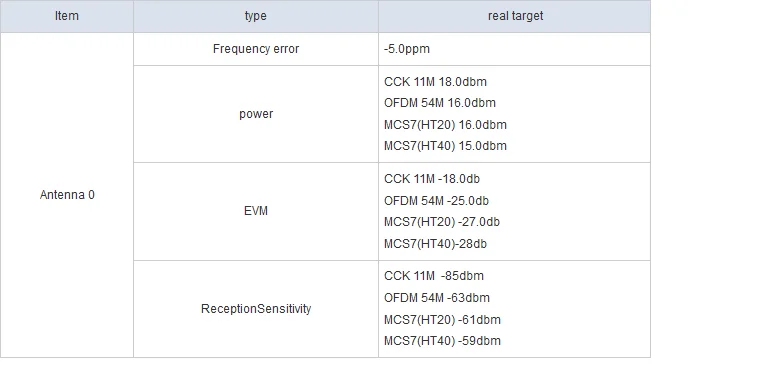

RF hardware performance


Oolite V3.2D:

Oolite V3.2S:
