5.8ghz Openwrt 11ac Dual Band Wifi Router With S20-25workingdays
4g lte broadband wireless router
The Oolite V3.2 module can use the MT7688ANchipset or MT7628AN chipset
The Oolite V3.2D module use the MT7628AN chipset.The MT7628AN includes a high performance 580/575 MHz MIPS24KEc CPU core and high speed USB2.0/PCIeinterfaces, which is designed to enable a multitude of high performance, cost-effective IEEE 802.11napplications with a MediaTek WiFi client card.There are several masters (MIPS 24KEc, USB, PCI Express, SDXC, FE) in the MT7628 SoC on a high performance,low latency Rbus. In addition, the MT7628 SoC supports lower speed peripherals such as UART Lite, GPIO, I2Cand SPI via a low speed peripheral bus (Pbus). The DDR/DDR2 controller is the only bus slave on the Rbus. Itincludes an Advanced Memory Scheduler to arbitrate the requests from bus masters, enhancing theperformance of memory access intensive tasks.
The Oolite V3.2S module use the MT7688AN chipset.The MT7688AN integrates a 1T1R 802.11n Wi-Fi radio, a 580MHz MIPS® 24KEc™ CPU, 1-port fast Ethernet PHY, USB2.0 host, PCIe, SD-XC, I2S/PCM and multiple slow IOs. The MT7688AN provides two operation modes – IoT gateway mode and IoT device mode. In IoT gateway mode, the PCI Express interface can connect to 802.11ac chipset for 11ac dual-band concurrent gateway. The high performance USB 2.0 allows the MT7688AN to add 3G/LTE modem support or add a H.264 ISP for wireless IP camera. For the IoT device mode, the MT7688AN supports eMMC, SD-XC and USB 2.0. The MT7688AN can support the WiFi high quality audio via 192Kbps/24bits I2S interface and VoIP application through PCM. In IoT device mode, it further supports PWM, SPI slave, 3rd UART and more GPIOs. For IoT gateway, it can connect to touch panel and BLE, Zigbee/Z-Wave and sub-1G RF for smart home control.
1. Features Oolite V3.2D >> CPU: MT7628ANwith 580/575 MHz MIPS24KEc >> RAM: 128MB DDR2 RAM (64MB optional) >> Flash: 16MB SPI NOR Flash ROM(8/16/32/64M option) >> Wireless speed: 300Mbps >> GPIO:37(total), High-speed UART for console support >> USB: Usb 2.0 master interface, support USB hub extension >> Power supply voltage: 3.3V. >> Port: 1×WAN+ 4×LAN ( IOT mode 1×port) >> 1×PCIE interface >> Antenna:2×IPeX external antenna. >> Debug: serial debugging interface has lead out. >> Supports 16 DMA channels and 32 bit address. >> 8 channel QoS Arbiter with Configurable Bandwidth and Duedate for each agent. >> Supports the Synchronous Inter-Integrated Circuits (I2C) serial protocol. >> Supports up to 2 SPI master operations and Extends the addressable range from 24 bits to 32 bits for memory size larger than 128 Mb.
I/O supply voltage: 3.3vInput,Output,or I/O Voltage: GND-0.3 V to Vcc +0.3V

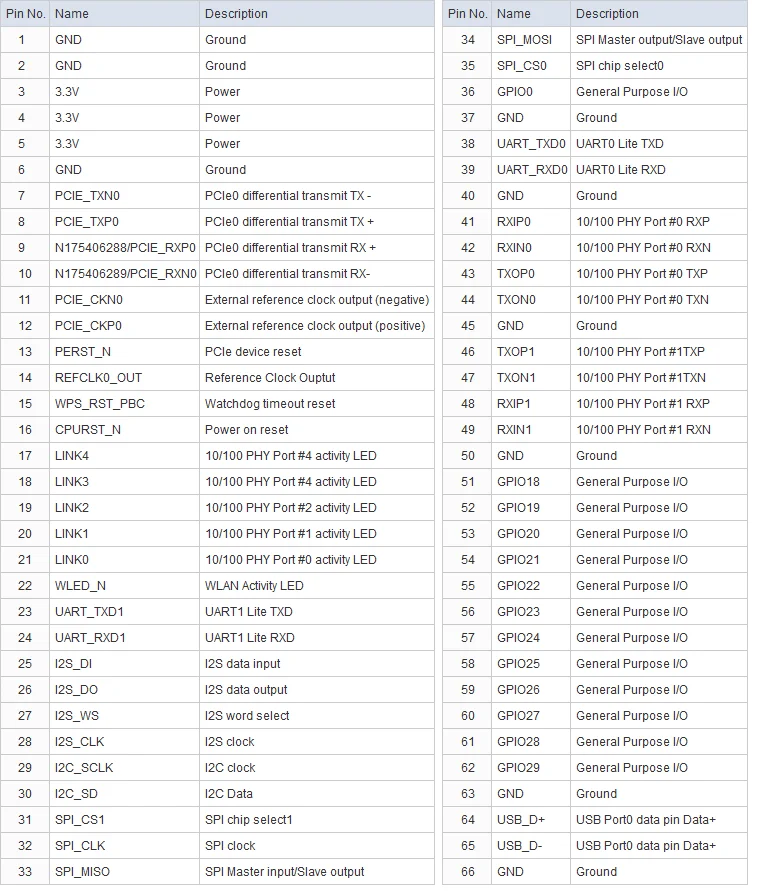

5. PIN SHARE SCHEME
Oolite V3.2D and Oolite V3.2S are the same
6. MODULE OTHER CONTENT

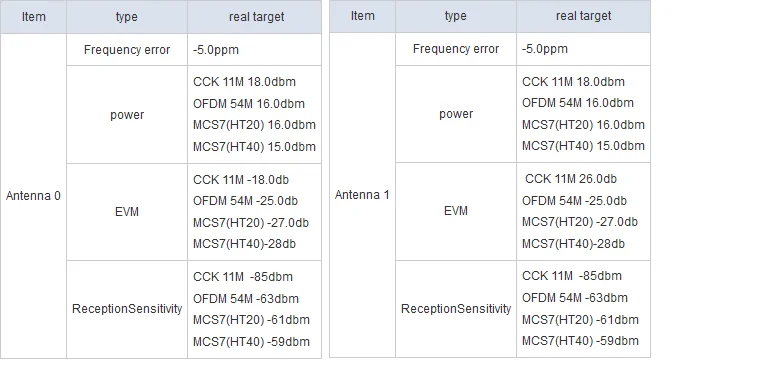

RF hardware performance
Shenzhen Gainstrong Technology Ltd. is a professional manufacturer for Network communication products ,including wifi Routers,wifi modules, Industial wifi equipment,smart home devices...and so on .The company was established on 2009 ,Our factory located in Shajing town ,Bao An District ,Shenzhen, China , professional manufacturer of various wifi module wifi router specialize in Qualcomm Atheros AR9XXX, QCA9XXX, IPQ, QCA40XX and MT76XX ,Allwinner, Intel x86 with wifi, lora, NB-iot, 3G/4G communication devices ODM/OEM.Usually for Industry application
We can flash customer firmware, ODM customer baseboard or redesign whole board, we can make sure device fit FCC,CE and so on. we can supply software design service
Packing & Delivery
Packaging Details:5.8ghz Openwrt 11ac Dual Band Wifi Router With Sd Card Slot plastic tray or blister Delivery Detail:5.8ghz Openwrt 11ac Dual Band Wifi Router With Sd Card Slot 3-5days or 30-45days
1.Do you provide customer LOGO? Yes, we can provide customer LOGO on firmware and hardware. 2.Do you accept PCBA orders only? Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality. 3.Do you provide firmware support? Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
